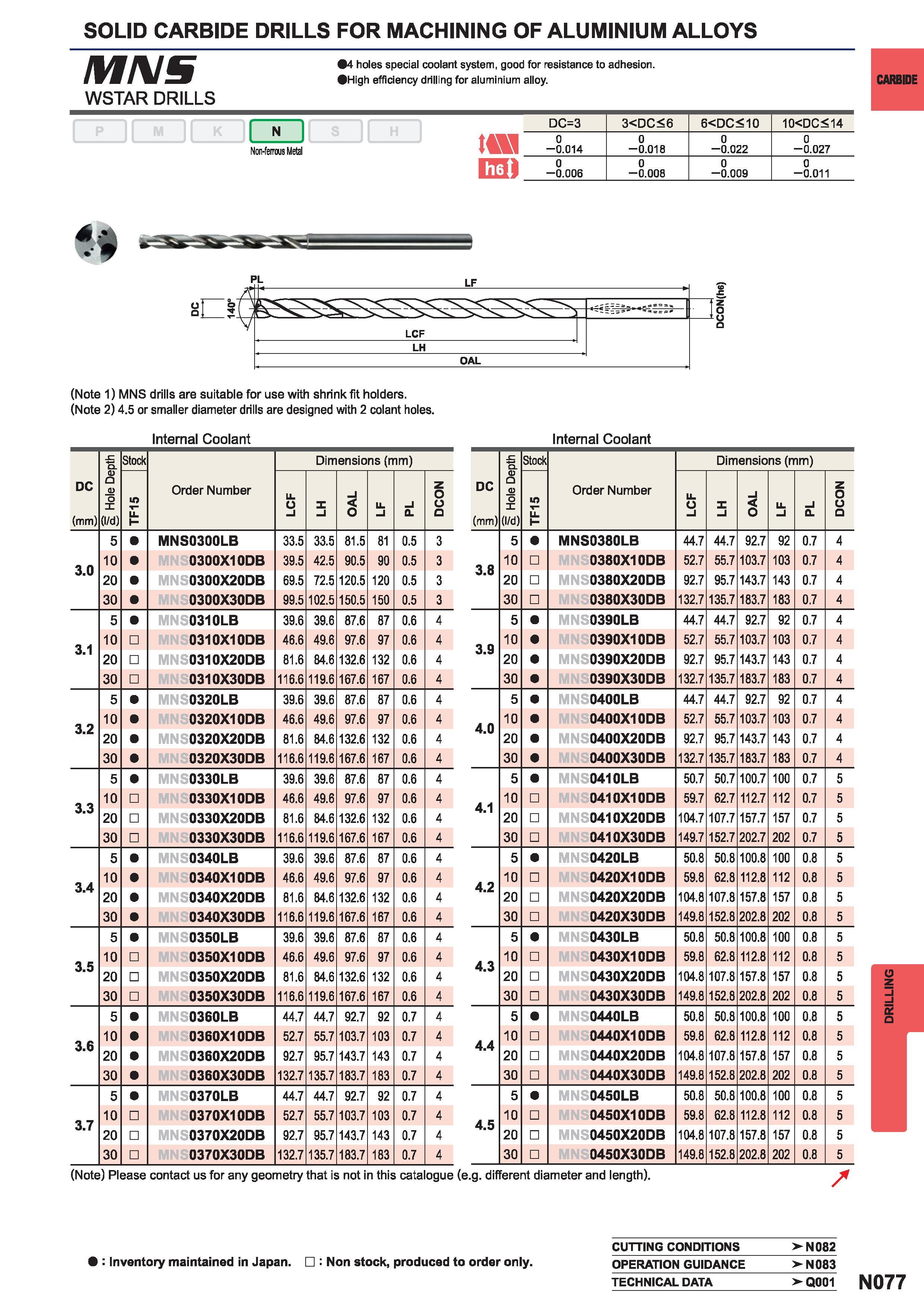

1393 Каталог MITSUBISHI 2015 Токарный и вращающийся инструмент Инструментальные решения Стр.N077

Каталог MITSUBISHI 2015 Металлорежущий инструмент Стр. N077 1393 ENG Lab2u

SOLID CARBIDE DRILLS FOR MACHINING OF ALUMINIUM ALLOYS MIMS WSTAR DRILLS 94 holes special coolant system good for resistance to adhesion. High efficiency drilling for aluminium alloy. N DC3 3DC6 6DC10 10DC14 0 -0.018 0 -0.022 0 -0.027 Non-ferrous Metal ItM -0.014 o 0 od 1 U 0 -0.008 0 -0.009 0 -0.011 (Note 1) MNS drills are suitable for use with shrink fit holders. (Note 2) 4.5 or smaller diameter drills are designed with 2 colant holes. P L LF LCF LH OAL Internal Coolant Internal Coolant DC (mm) g Hole Depth Stock Order Number Dimensions (mm) DC (mm) g Hole Depth Stock Order Number Dimensions (mm) TF15 LCF z i OAL u. DCON TF15 LCF X i OAL u. DCON 5 MNS0300LB 33.5 33.5 81.5 81 0.5 3 5 MNS0380LB 44.7 44.7 92.7 92 0.7 4 3.0 10 0300X1 ODB 39.5 42.5 90.5 90 0.5 3 3.8 10 0380X1ODB 52.7 55.7 103.7 103 0.7 4 20 0300X20DB 69.5 72.5 120.5 120 0.5 3 20 0380X20DB 92.7 95.7 143.7 143 0.7 4 30 0300X30DB 99.5 102.5 150.5 150 0.5 3 30 0380X30DB 132.7 135.7 183.7 183 0.7 4 5 0310LB 39.6 39.6 87.6 87 0.6 4 5 0390LB 44.7 44.7 92.7 92 0.7 4 3.1 10 0310X1 ODB 46.6 49.6 97.6 97 0.6 4 3.9 10 0390X1ODB 52.7 55.7 103.7 103 0.7 4 20 0310X20DB 81.6 84.6 132.6 132 0.6 4 20 0390X20DB 92.7 95.7 143.7 143 0.7 4 30 0310X30DB 116.6 119.6 167.6 167 0.6 4 30 0390X30DB 132.7 135.7 183.7 183 0.7 4 5 0320LB 39.6 39.6 87.6 87 0.6 4 5 0400LB 44.7 44.7 92.7 92 0.7 4 3.2 10 0320X1 ODB 46.6 49.6 97.6 97 0.6 4 4.0 10 0400X1ODB 52.7 55.7 103.7 103 0.7 4 20 0320X20DB 81.6 84.6 132.6 132 0.6 4 20 0400X20DB 92.7 95.7 143.7 143 0.7 4 30 0320X30DB 116.6 119.6 167.6 167 0.6 4 30 0400X30DB 132.7 135.7 183.7 183 0.7 4 5 0330LB 39.6 39.6 87.6 87 0.6 4 5 0410LB 50.7 50.7 100.7 100 0.7 5 3.3 10 0330X1 ODB 46.6 49.6 97.6 97 0.6 4 4.1 10 0410X1 ODB 59.7 62.7 112.7 112 0.7 5 20 0330X20DB 81.6 84.6 132.6 132 0.6 4 20 0410X20DB 104.7 107.7 157.7 157 0.7 5 30 0330X30DB 116.6 119.6 167.6 167 0.6 4 30 0410X30DB 149.7 152.7 202.7 202 0.7 5 5 0340LB 39.6 39.6 87.6 87 0.6 4 5 0420LB 50.8 50.8 100.8 100 0.8 5 3.4 10 0340X1ODB 46.6 49.6 97.6 97 0.6 4 4.2 10 0420X1ODB 59.8 62.8 112.8 112 0.8 5 20 0340X20DB 81.6 84.6 132.6 132 0.6 4 20 0420X20DB 104.8 107.8 157.8 157 0.8 5 30 0340X30DB 116.6 119.6 167.6 167 0.6 4 30 0420X30DB 149.8 152.8 202.8 202 0.8 5 5 0350LB 39.6 39.6 87.6 87 0.6 4 5 0430LB 50.8 50.8 100.8 100 0.8 5 3.5 10 0350X1ODB 46.6 49.6 97.6 97 0.6 4 4.3 10 0430X1ODB 59.8 62.8 112.8 112 0.8 5 20 0350X20DB 81.6 84.6 132.6 132 0.6 4 20 0430X20DB 104.8 107.8 157.8 157 0.8 5 30 0350X30DB 116.6 119.6 167.6 167 0.6 4 30 0430X30DB 149.8 152.8 202.8 202 0.8 5 5 0360LB 44.7 44.7 92.7 92 0.7 4 5 0440LB 50.8 50.8 100.8 100 0.8 5 3.6 10 0360X1ODB 52.7 55.7 103.7 103 0.7 4 4.4 10 0440X1ODB 59.8 62.8 112.8 112 0.8 5 20 0360X20DB 92.7 95.7 143.7 143 0.7 4 20 0440X20DB 104.8 107.8 157.8 157 0.8 5 30 0360X30DB 132.7 135.7 183.7 183 0.7 4 30 0440X30DB 149.8 152.8 202.8 202 0.8 5 5 0370LB 44.7 44.7 92.7 92 0.7 4 5 0450LB 50.8 50.8 100.8 100 0.8 5 3.7 10 0370X1ODB 52.7 55.7 103.7 103 0.7 4 4.5 10 0450X1ODB 59.8 62.8 112.8 112 0.8 5 20 0370X20DB 92.7 95.7 143.7 143 0.7 4 20 0450X20DB 104.8 107.8 157.8 157 0.8 5 30 0370X30DB 132.7 135.7 183.7 183 0.7 4 30 0450X30DB 149.8 152.8 202.8 202 0.8 5 (Note) Please contact us for any geometry that is not in this catalogue (e.g. different diameter and length). CARBIDE Inventory maintained in Japan. Non stock produced to order only. CUTTING CONDITIONS OPERATION GUIDANCE TECHNICAL DATA N082 -N083 -Q001 N077 DRILLING
