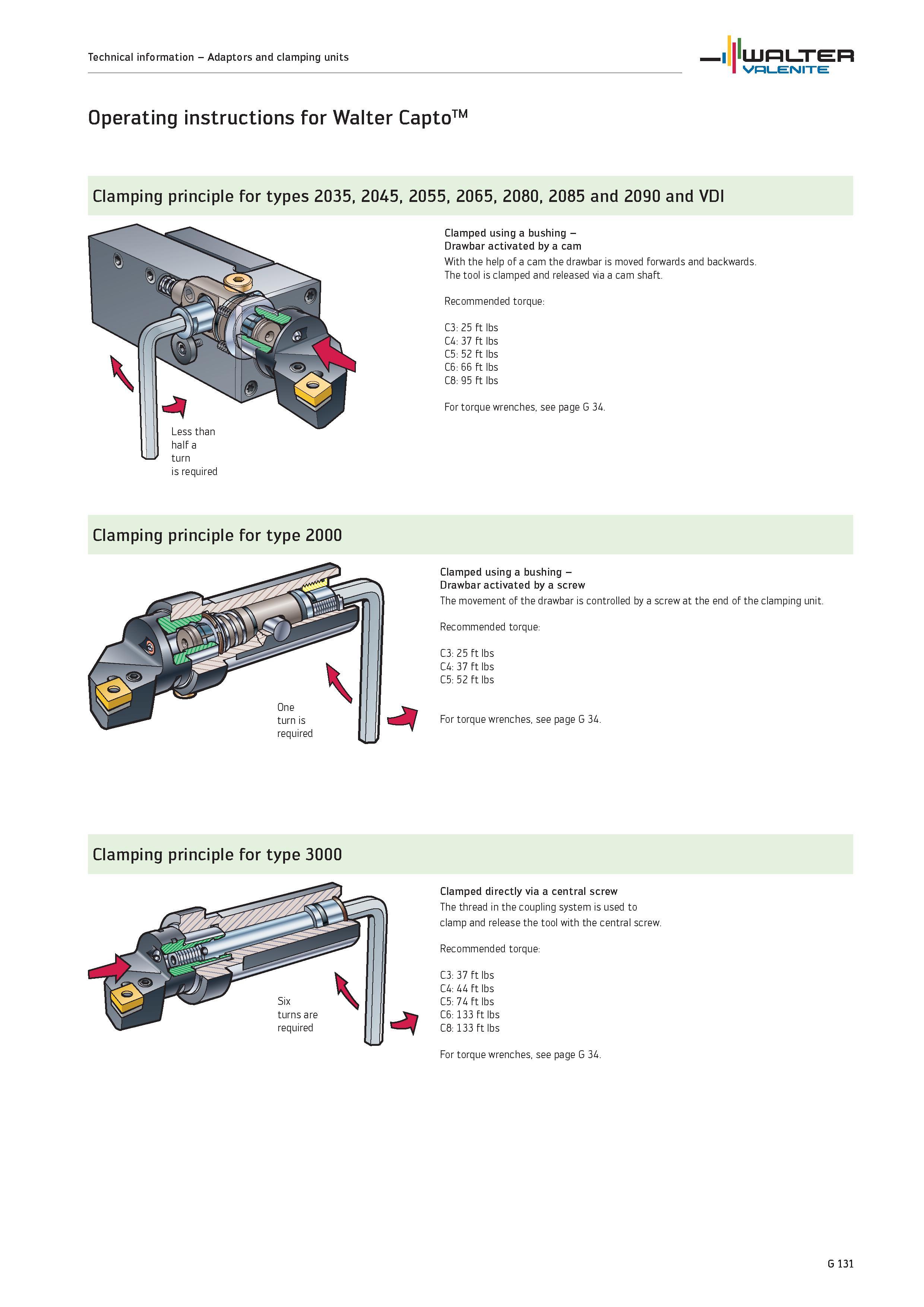

Operating instructions for Walter Capto Clamping principle for types 2035, 2045, 2055, 2065, 2080, 2085 and 2090 and VDI Clamped using a bushing

Operating instructions for Walter Capto Clamping principle for types 2035, 2045, 2055, 2065, 2080, 2085 and 2090 and VDI Clamped using a bushing -Drawbar activated by a cam With the help of a cam the drawbar is moved forwards and backwards. The tool is clamped and released via a cam shaft. Recommended torque 25 ft lbs 37 ft lbs 52 ft lbs 66 ft lbs 95 ft lbs For torque wrenches, see page G 34. Clamping principle for type 2000 Clamped using a bushing -Drawbar activated by a screw The movement of the drawbar is controlled by a screw at the end of the clamping unit. Recommended torque 25 ft lbs 37 ft lbs 52 ft lbs For torque wrenches, see page G 34. Clamping principle for type 3000 Clamped directly via a central screw The thread in the coupling system is used to clamp and release the tool with the central screw. Recommended torque 37 ft lbs 44 ft lbs 74 ft lbs 133 ft lbs 133 ft lbs For torque wrenches, see page G 34. G 131 Technical information Adaptors and clamping units WALTER Valenite
