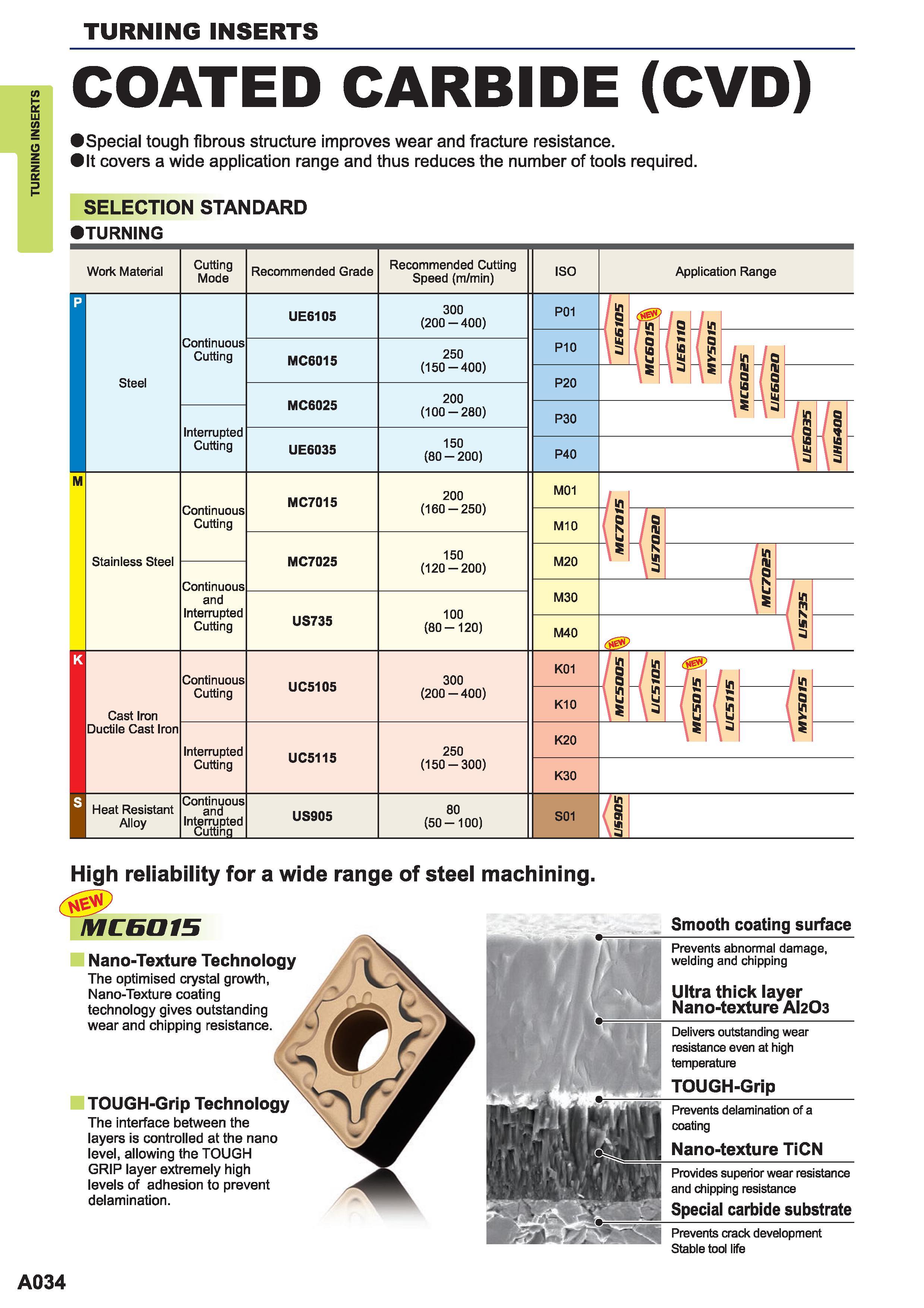

Mitsubishi turning coated carbide CVD inserts Special tough fibrous structure improves wear and fracture resistance. It covers a wide application range and thus reduces the number of tools required. SELECTION STANDARD TURNING Work Material Cutting Mode Recommended Grade Recommended Cutting Speed (m/min) ISO Application Range Continuous Cutting Steel Interrupted Cutting UE6105 MC6015 MC6025 UE603S 300 (200-400) 250 (150-400) 200 (100-280) 150 (80 - 200) M Continuous Cutting Stainless Steel Continuous and Interrupted Cutting MC7015 MC7025 US735 200 (160-250) M01 M10 150 (120-200) M20 M30 100 (80-120) M40 Continuous Cutting Cast Iron iDuctile Cast Iron Interrupted Cutting UC5105 UC5115 300 (200-400) K01 K10 250 (150-300) K20 a B K30 Heat Resistant Alloy Continuous and Interrupted Cutting US905 80 (50-100) S01 A034 High reliability for a wide range of steel (t e P MCBOIS Nano-Texture Technology The optimised crystal growth Nano-Texture coating technology gives outstanding wear and chipping resistance. TOUGH-Grip Technology The interface between the layers is controlled at the nano level allowing the TOUGH GRIP layer extremely high levels of adhesion to prevent delamination. machining. Smooth coating surface Prevents abnormal damage welding and chipping Ultra thick layer Nano-texture AI2O3 Delivers outstanding wear resistance even at high temperature TOUGH-Grip Prevents delamination of a coating Nano-texture TiCN Provides superior wear resistance and chipping resistance Special carbide substrate Prevents crack development Stable tool life TURNING INSERTS TURNING INSERTS COATED CARBIDE (CVD)
