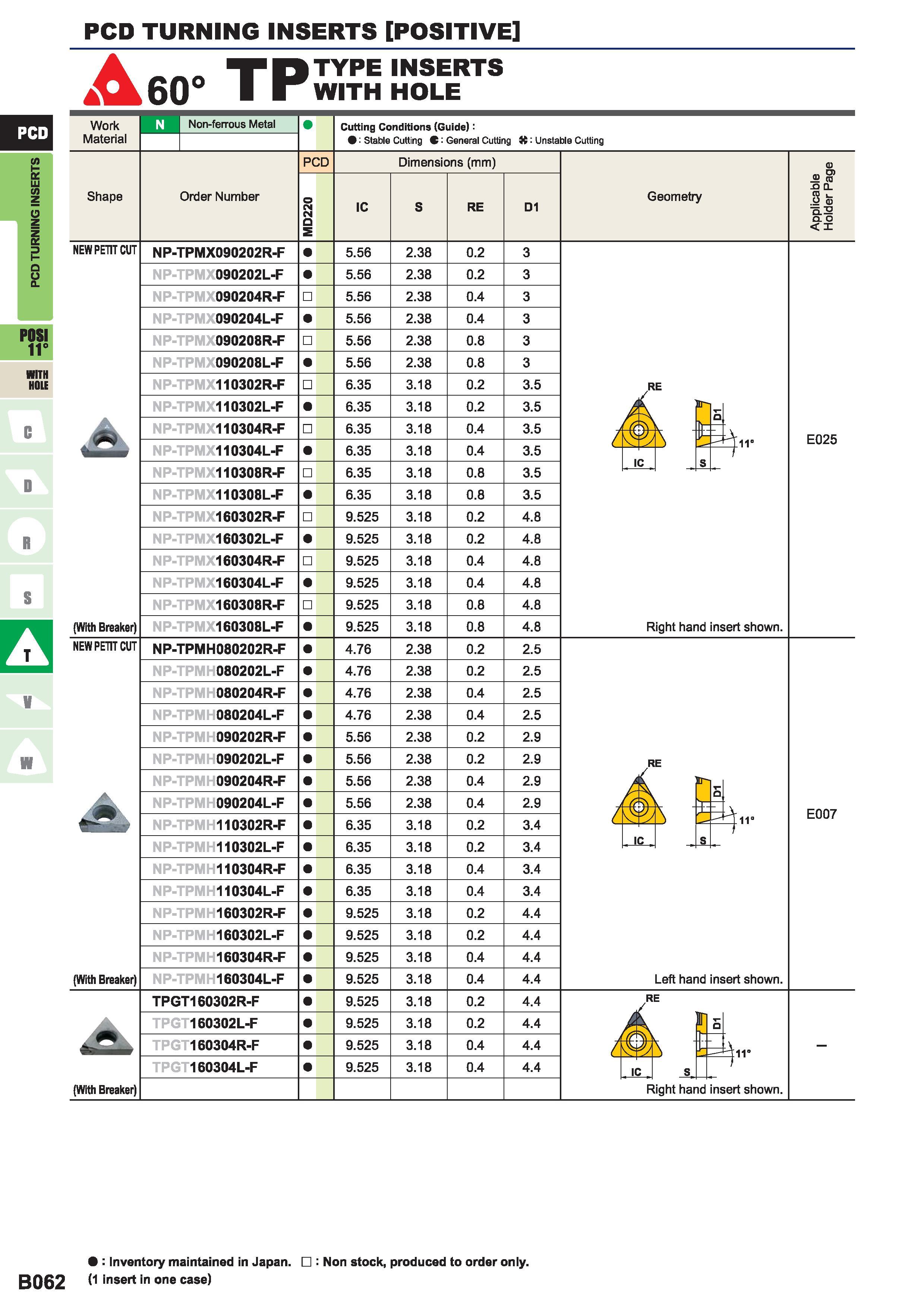

PCD TURNING INSERTS POSITIVE TYPE INSERTS WITH HOLE Cutting Conditions (Guide) Stable Cutting C General Cutting X Unstable Cutting PCD Dimensions (mm) Shape Order Number IC x 3 H Q O L RE 1 Geometry u J2 ra -Q 0 5 O X NEW PETIT CUT NP-TPMX090202R-F 5.56 2.38 0.2 PMX090202L-F 5.56 2.38 0.2 PMX090204R-F 5.56 2.38 0.4 PMX090204L-F 5.56 2.38 0.4 POSI 11 WITH H01E c D PMX090208R-F 5.56 2.38 0.8 PMX090208L-F 5.56 2.38 0.8 PMX110302R-F 6.35 3.18 0.2 3.5 PMX110302L-F 6.35 3.18 0.2 3.5 PMX110304R-F 6.35 3.18 0.4 3.5 PMX110304L-F 6.35 3.18 0.4 3.5 PMX110308R-F 6.35 3.18 0.8 3.5 PMX110308L-F 6.35 3.18 0.8 3.5 PMX160302R-F 9.525 3.18 0.2 4.8 PMX160302L-F 9.525 3.18 0.2 4.8 PMX160304R-F 9.525 3.18 0.4 4.8 PMX160304L-F 9.525 3.18 0.4 4.8 PMX160308R-F 9.525 3.18 0.8 4.8 (With Breaker) PMX160308L-F 9.525 3.18 0.8 4.8 RE IC IT- -N 11 E025 Right hand insert shown. NEW PETIT CUT NP-TPMH080202R-F 4.76 2.38 0.2 2.5 PMH080202L-F 4.76 2.38 0.2 2.5 PMH080204R-F 4.76 2.38 0.4 2.5 PMH080204L-F 4.76 2.38 0.4 2.5 PMH090202R-F 5.56 2.38 0.2 2.9 PMH090202L-F 5.56 2.38 0.2 2.9 PMH090204R-F 5.56 2.38 0.4 2.9 PMH090204L-F 5.56 2.38 0.4 2.9 PMH110302R-F 6.35 3.18 0.2 3.4 PMH110302L-F 6.35 3.18 0.2 3.4 PMH110304R-F 6.35 3.18 0.4 3.4 PMH110304L-F 6.35 3.18 0.4 3.4 PMH160302R-F 9.525 3.18 0.2 4.4 PMH160302L-F 9.525 3.18 0.2 4.4 PMH160304R-F 9.525 3.18 0.4 4.4 (With Breaker) PMH160304L-F 9.525 3.18 0.4 4.4 RE IC -je 11 E007 Left hand insert shown. TPGT160302R-F 9.525 3.18 0.2 4.4 (With Breaker) 160302L-F 9.525 3.18 0.2 4.4 RE 160304R-F 9.525 3.18 0.4 4.4 160304L-F 9.525 3.18 0.4 4.4 ic r - V . 11 s Right hand insert shown. Inventory maintained in Japan. Non stock produced to order only. B062 (1 insert in one case)
