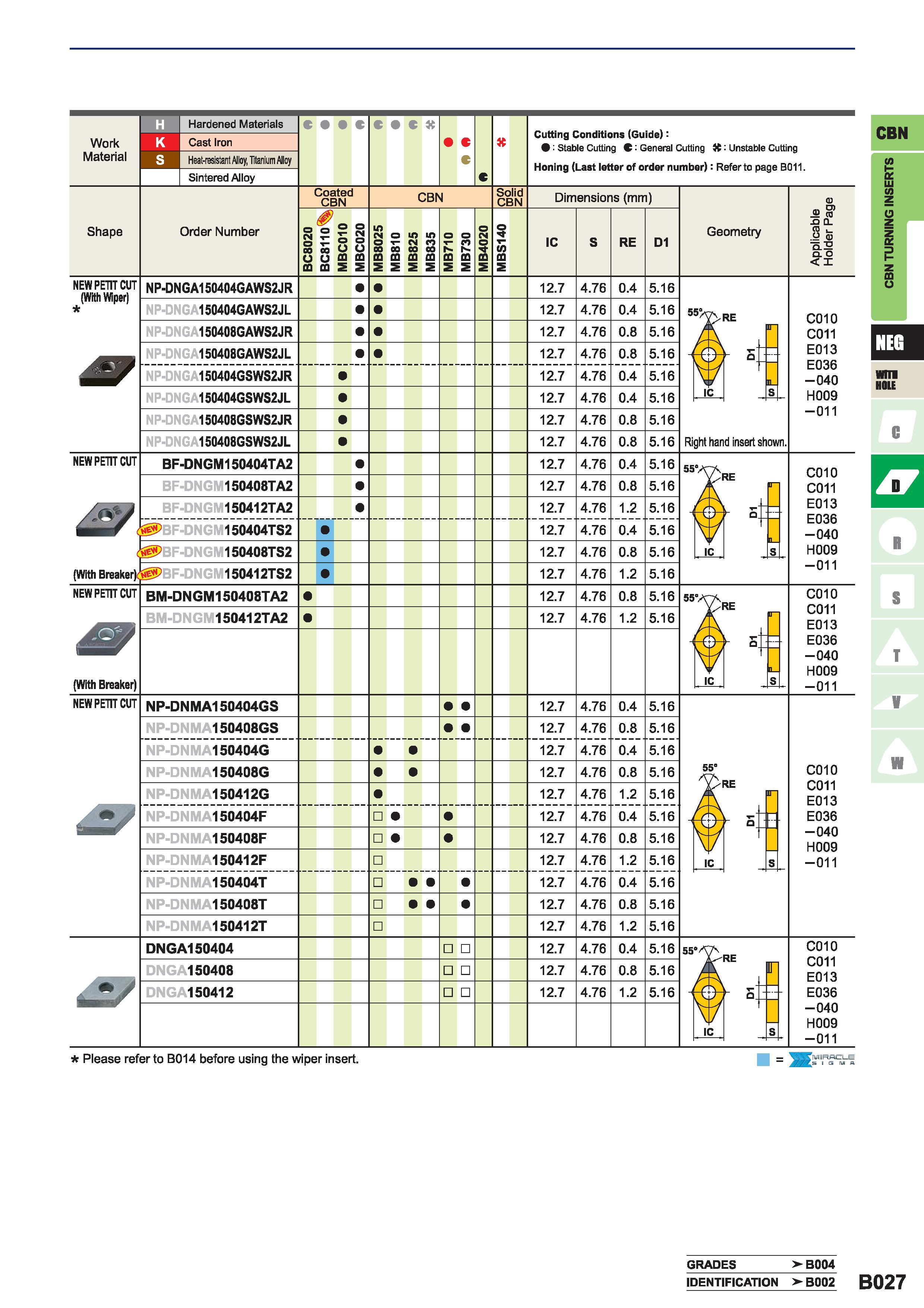

233 Каталог MITSUBISHI 2015 Токарный и вращающийся инструмент Инструментальные решения Стр.B027

Каталог MITSUBISHI 2015 Металлорежущий инструмент Стр. B027 0233 ENG Lab2u

Work Material Hardened Materials Cast Iron Heat-resistant Alloy Titanium Alloy Sintered Alloy Cutting Conditions (Guide) Stable Cutting C General Cutting K Unstable Cutting Honing (Last letter of order number) Refer to page B011. CBN 111 10 o DC 3 o Coated CBN CBN Solid CBN Dimensions (mm) Shape Order Number IC RE D1 Geometry ra tiro O a O X NEW PETIT CUT (With Wiper) NP-DNGA150404GAWS2JR 12.7 4.76 0.4 5.16 150404GAWS2JL 12.7 4.76 0.4 5.16 150408GAWS2JR 12.7 4.76 0.8 5.16 150408GAWS2JL 12.7 4.76 0.8 150404GSWS2JR 12.7 4.76 0.4 5.16 5.16 150404GSWS2JL 12.7 4.76 0.4 5.16 RE 5 IC 150408GSWS2JR 12.7 4.76 0.8 5.16 150408GSWS2JL 12.7 4.76 0.8 5.16 Right hand insert shown. C010 C011 E013 E036 -040 H009 -011 NEW PETIT CUT BF-DNGM150404TA2 12.7 4.76 0.4 5.16 DNGM150408TA2 12.7 4.76 0.8 5.16 55V A 150412TA2 PBF-DNGM150404TS2 12.7 12.7 4.76 4.76 1.2 0.4 5.16 5.16 DNGM150408TS2 12.7 4.76 0.8 5.16 ic (With Breaker) 150412TS2 12.7 4.76 1.2 5.16 C010 C011 E013 E036 -040 H009 -011 R S T V NEW PETIT CUT BM-DNGM150408TA2 12.7 4.76 0.8 5.16 150412TA2 12.7 4.76 1.2 5.16 (With Breaker) C010 C011 E013 E036 -040 H009 -011 NEW PETIT CUT NP-DNMA150404GS 12.7 4.76 0.4 5.16 150408GS 150404G 12.7 4.76 0.8 12.7 4.76 0.4 5.16 5.16 150408G 12.7 4.76 0.8 5.16 150412G 150404F 12.7 12.7 4.76 4.76 1.2 0.4 5.16 5.16 150408F 12.7 4.76 0.8 5.16 150412F 150404T 12.7 4.76 1.2 12.7 4.76 0.4 5.16 5.16 55" A Wr V IC :e 150408T 12.7 4.76 0.8 5.16 150412T 12.7 4.76 1.2 5.16 C010 C011 E013 E036 -040 H009 -011 DNGA150404 12.7 4.76 0.4 5.16 55 AA 150408 12.7 4.76 0.8 5.16 150412 12.7 4.76 1.2 5.16 A ra- 5 V IC C010 C011 E013 E036 -040 H009 -011 Please refer to B014 before using the wiper insert. GRADES B004 IDENTIFICATION B002 B027
