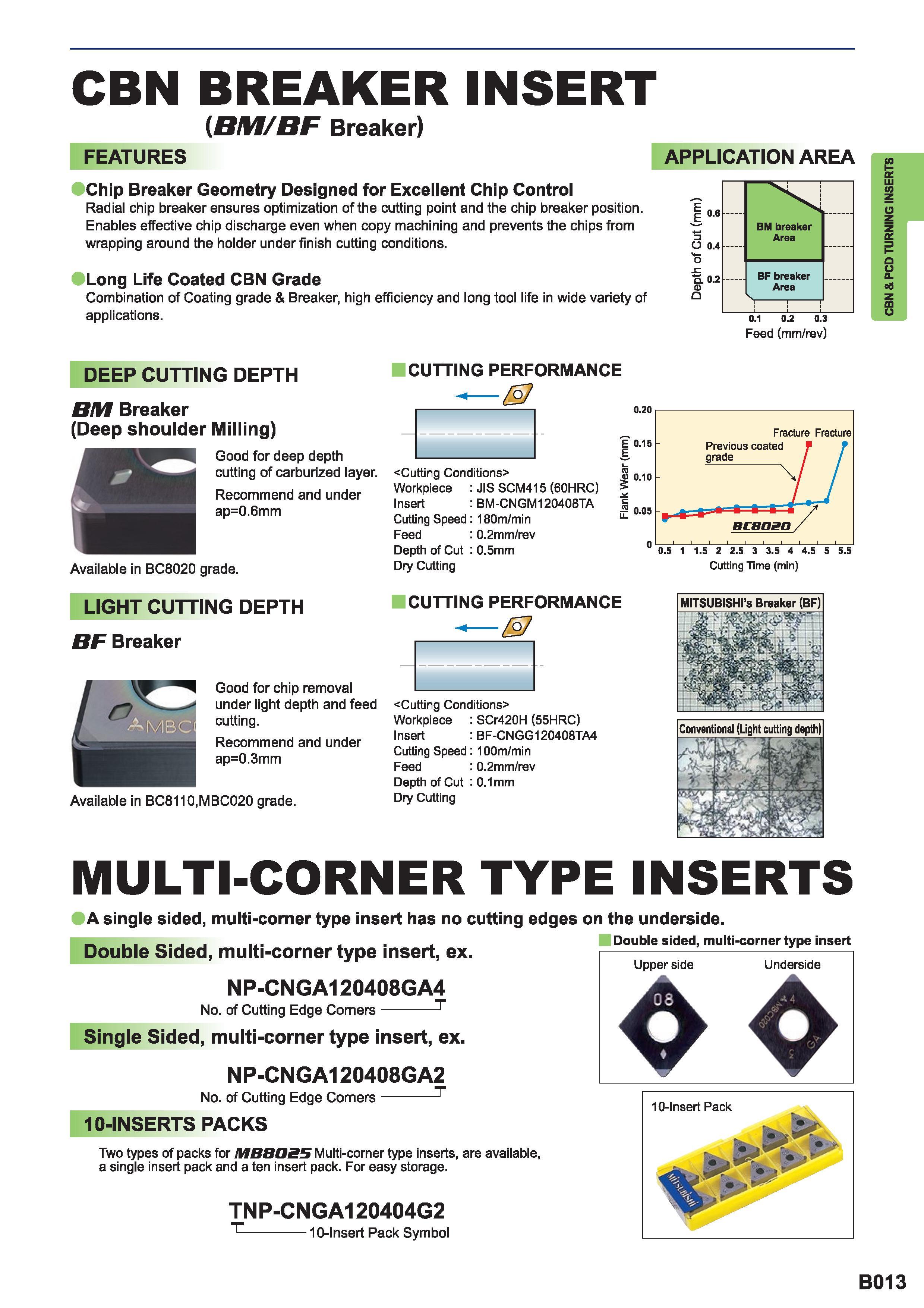

CBN BREAKER INSERT BM BF Breaker) FEATURES APPLICATION AREA Chip Breaker Geometry Designed for Excellent Chip Control Radial chip breaker ensures optimization of the cutting point and the chip breaker position. Enables effective chip discharge even when copy machining and prevents the chips from wrapping around the holder under finish cutting conditions. 0.6 O 0.4 M BM breaker Area Long Life Coated CBN Grade 1L 0.2 BF breaker Combination of Coating grade & Breaker high efficiency and long tool life in wide variety of a N applications. 0.1 0.2 0. 3 Feed (mm/rev) DEEP CUTTING DEPTH BlIf Breaker (Deep shoulder Milling) Good for deep depth cutting of carburized layer. Recommend and under ap0.6mm Available in BC8020 grade. LIGHT CUTTING DEPTH BF Breaker AMBCi Available in BC8110MBC020 grade. CUTTING PERFORMANCE - Z7 Cutting Conditions Workpiece JIS SCM415 (60HRC) Insert BM-CNGM120408TA Cutting Speed 180m/min Feed 0.2mm/rev Depth of Cut 0.5mm Dry Cutting CUTTING PERFORMANCE Z7 Good for chip removal under light depth and feed cutting. Recommend and under ap0.3mm Cutting Conditions Workpiece SCr420H (55HRC) Insert BF-CNGG120408TA4 Cutting Speed 100m/min Feed 0.2mm/rev Depth of Cut 0.1mm Dry Cutting Cutting Time (min) MITSUBISHI'S Breaker (BF) MULTI-CORNER TYPE INSERTS A single sided multi-corner type insert has no cutting edges Double Sided multi-corner type insert ex. NP-CNGA120408GA4 No. of Cutting Edge Corners- Single Sided multi-corner type insert ex. NP-CNGA120408GA2 No. of Cutting Edge Corners- 10-INSERTS PACKS Two types of packs for MBBOB5 Multi-corner type inserts are available a single insert pack and a ten insert pack. For easy storage. TNP-CNGA120404G2 - -10-Insert Pack Symbol on the underside. Double sided multi-corner type insert Upper side Underside B013 CBN & PCD TURNING INSERTS
