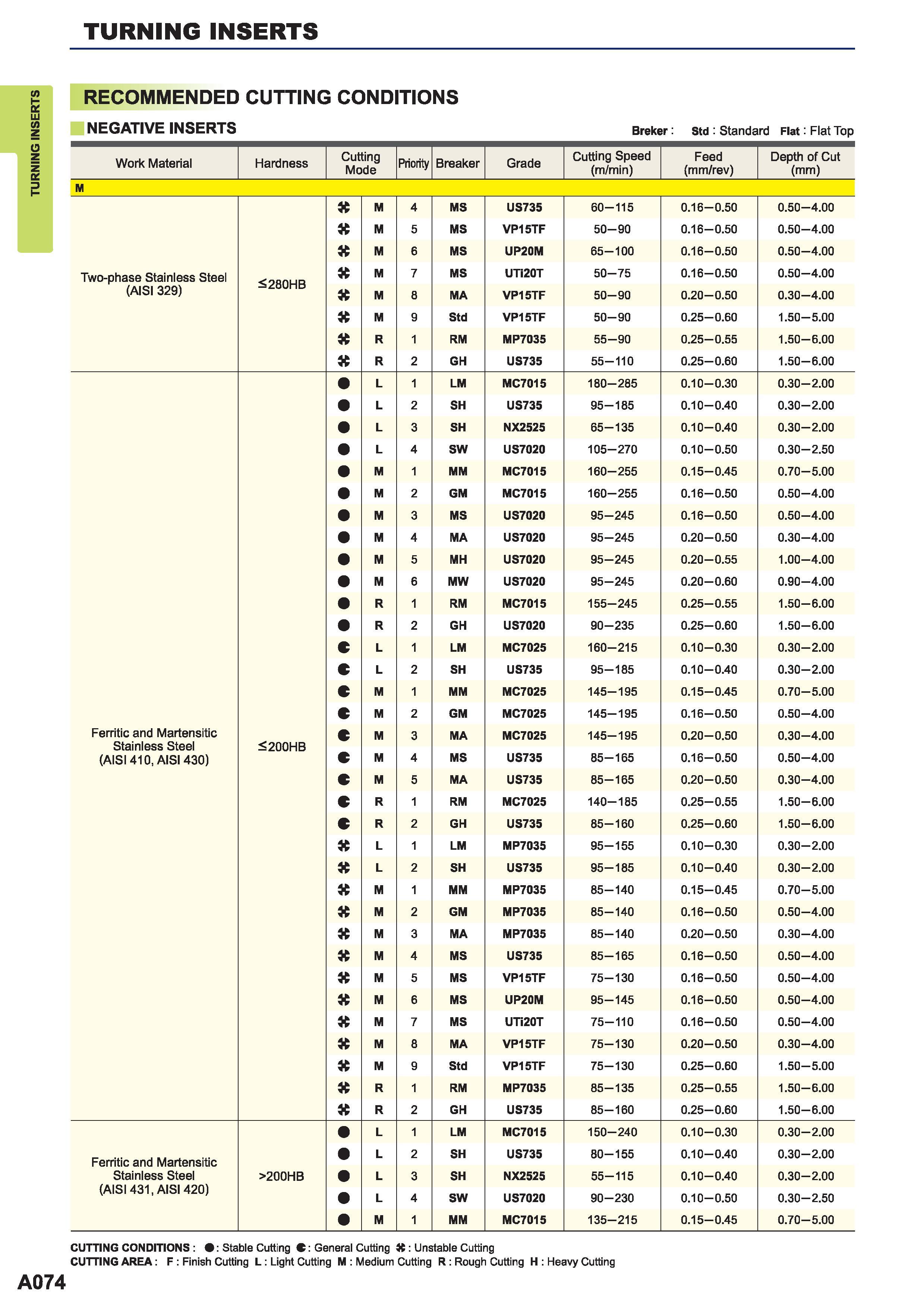

TURNING INSERTS TURNING INSERTS RECOMMENDED CUTTING CONDITIONS NEGATIVE INSERTS Breker Std Standard Flat Flat Top Work Material Hardness Cutting Mode Priority Breaker Grade Cutting Speed (m/min) Feed (mm/rev) Depth of Cut (mm) M M 4 MS US735 60-115 0.16-0.50 0.50-4.00 M 5 MS VP15TF 50-90 0.16-0.50 0.50-4.00 K M 6 MS UP20M 65-100 0.16-0.50 0.50-4.00 Two-phase Stainless Steel (AISI 329) 280HB M M 7 8 MS MA UTi20T VP15TF 50-75 50-90 0.16-0.50 0.20-0.50 0.50-4.00 0.30-4.00 M g Std VP15TF 50-90 0.25-0.60 1.50-5.00 R 1 RM MP7035 55-90 0.25-0.55 1.50-6.00 R 2 GH US735 55-110 0.25-0.60 1.50-6.00 L 1 LM MC7015 180-285 0.10-0.30 0.30-2.00 L 2 SH US735 95-185 0.10-0.40 0.30-2.00 L 3 SH NX2525 65-135 0.10-0.40 0.30-2.00 L 4 SW US7020 105-270 0.10-0.50 0.30-2.50 M 1 MM MC7015 160-255 0.15-0.45 0.70-5.00 M 2 GM MC7015 160-255 0.16-0.50 0.50-4.00 M 3 MS US7020 95-245 0.16-0.50 0.50-4.00 M 4 MA US7020 95-245 0.20-0.50 0.30-4.00 M 5 MH US7020 95-245 0.20-0.55 1.00-4.00 M 6 MW US7020 95-245 0.20-0.60 0.90-4.00 R 1 RM MC7015 155-245 0.25-0.55 1.50-6.00 R 2 GH US7020 90-235 0.25-0.60 1.50-6.00 C L 1 LM MC7025 160-215 0.10-0.30 0.30-2.00 C L 2 SH US735 95-185 0.10-0.40 0.30-2.00 e M 1 MM MC7025 145-195 0.15-0.45 0.70-5.00 e M 2 GM MC7025 145-195 0.16-0.50 0.50-4.00 Ferritic and Martensitic Stainless Steel (AISI 410 AISI 430) 200HB e M M 3 4 MA MS MC7025 US735 145-195 85-165 0.20-0.50 0.16-0.50 0.30-4.00 0.50-4.00 M 5 MA US735 85-165 0.20-0.50 0.30-4.00 c R 1 RM MC7025 140-185 0.25-0.55 1.50-6.00 c R 2 GH US735 85-160 0.25-0.60 1.50-6.00 L 1 LM MP7035 95-155 0.10-0.30 0.30-2.00 L 2 SH US735 95-185 0.10-0.40 0.30-2.00 M 1 MM MP7035 85-140 0.15-0.45 0.70-5.00 M 2 GM MP7035 85-140 0.16-0.50 0.50-4.00 M 3 MA MP7035 85-140 0.20-0.50 0.30-4.00 M 4 MS US735 85-165 0.16-0.50 0.50-4.00 M 5 MS VP15TF 75-130 0.16-0.50 0.50-4.00 M 6 MS UP20M 95-145 0.16-0.50 0.50-4.00 K M 7 MS UTi20T 75-110 0.16-0.50 0.50-4.00 M 8 MA VP15TF 75-130 0.20-0.50 0.30-4.00 M g Std VP15TF 75-130 0.25-0.60 1.50-5.00 R 1 RM MP7035 85-135 0.25-0.55 1.50-6.00 R 2 GH US735 85-160 0.25-0.60 1.50-6.00 L 1 LM MC7015 150-240 0.10-0.30 0.30-2.00 Ferritic and Martensitic Stainless Steel (AISI 431 AISI 420) 200HB L L L 2 3 4 SH SH SW US735 NX2525 US7020 80-155 55-115 90-230 0.10-0.40 0.10-0.40 0.10-0.50 0.30-2.00 0.30-2.00 0.30-2.50 M 1 MM MC7015 135-215 0.15-0.45 0.70-5.00 CUTTING CONDITIONS Stable Cutting C General Cutting W Unstable Cutting CUTTING AREA F Finish Cutting L Light Cutting M Medium Cutting R Rough Cutting H Heavy Cutting A074
