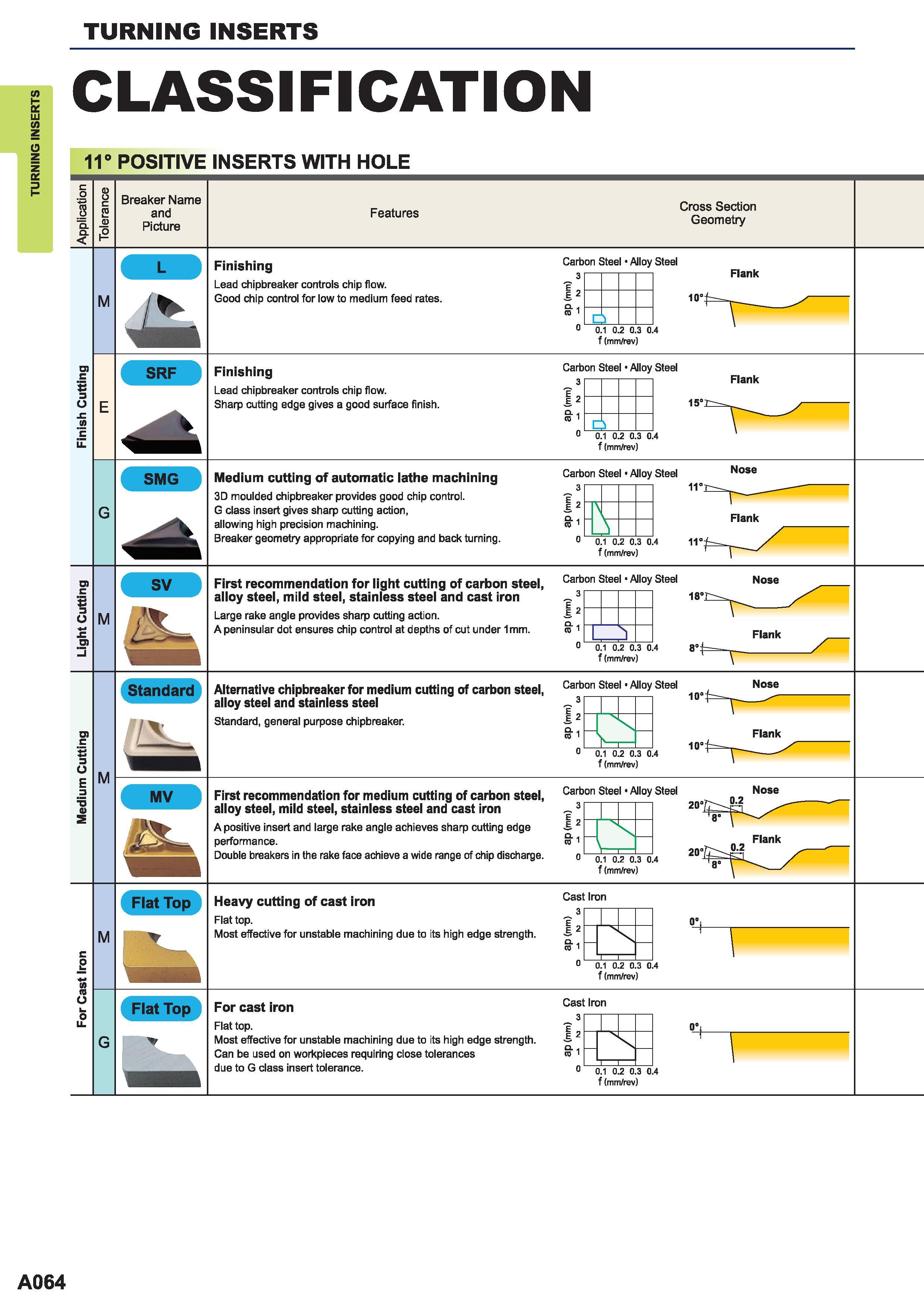

TURNING INSERTS TURNING INSERTS CLASSIFICATION 11 POSITIVE INSERTS WITH HOLE g a. a. Breaker Name and Picture Features Cross Section Geometry M Finishing Lead chipbreaker controls chip flow. Good chip control for low to medium feed rates. Carbon Steel Alloy Steel 3 2 Flank 0.1 0.2 0.3 0.4 f (mm/rev) Oi c 5 3 a .c Finishing Lead chipbreaker controls chip flow. Sharp cutting edge gives a good surface finish. Carbon Steel Alloy Steel 3 fa 1 0 Flank 0.1 0.2 0.3 0.4 f (mm/rev) Medium cutting of automatic lathe machining 3D moulded chipbreaker provides good chip control. G class insert gives sharp cutting action allowing high precision machining. Breaker geometry appropriate for copying and back turning. Carbon Steel Alloy Steel 3 I2 0 Nose Flank U. U.Z U.J f (mm/rev) oi c 5 3 o M First recommendation for light cutting of carbon steel alloy steel mild steel stainless steel and cast iron Large rake angle provides sharp cutting action. A peninsular dot ensures chip control at depths of cut under 1 mm. Carbon Steel Alloy Steel 3 r 1 0 i 18 0.1 0.2 0.3 0.4 f (mm/rev) 8') - Nose Flank M Alternative chipbreaker for medium cutting of carbon steel alloy steel and stainless steel Standard general purpose chipbreaker. Carbon Steel Alloy Steel 3r I2 0.1 0.2 0.3 0.4 f (mm/rev) 10 f 10-f Nose Flank MV First recommendation for medium cutting of carbon steel alloy steel mild steel stainless steel and cast iron A positive insert and large rake angle achieves sharp cutting edge performance. Double breakers in the rake face achieve a wide range of chip discharge. Carbon Steel Alloy Steel 3r 2 Nose 1 0 0.1 0.2 0.3 0.4 f (mm/rev) M Heavy cutting of cast iron Flat top. Most effective for unstable machining due to its high edge strength. Cast Iron 3r I2 81 0 0.10.2 0.3 0.4 f (mm/rev) For cast iron Flat top. Most effective for unstable machining due to its high edge strength. Can be used on workpieces requiring close tolerances due to G class insert tolerance. Cast Iron 3r 81 0 0.1 0.2 0.3 0.4 f (mm/rev) A064
