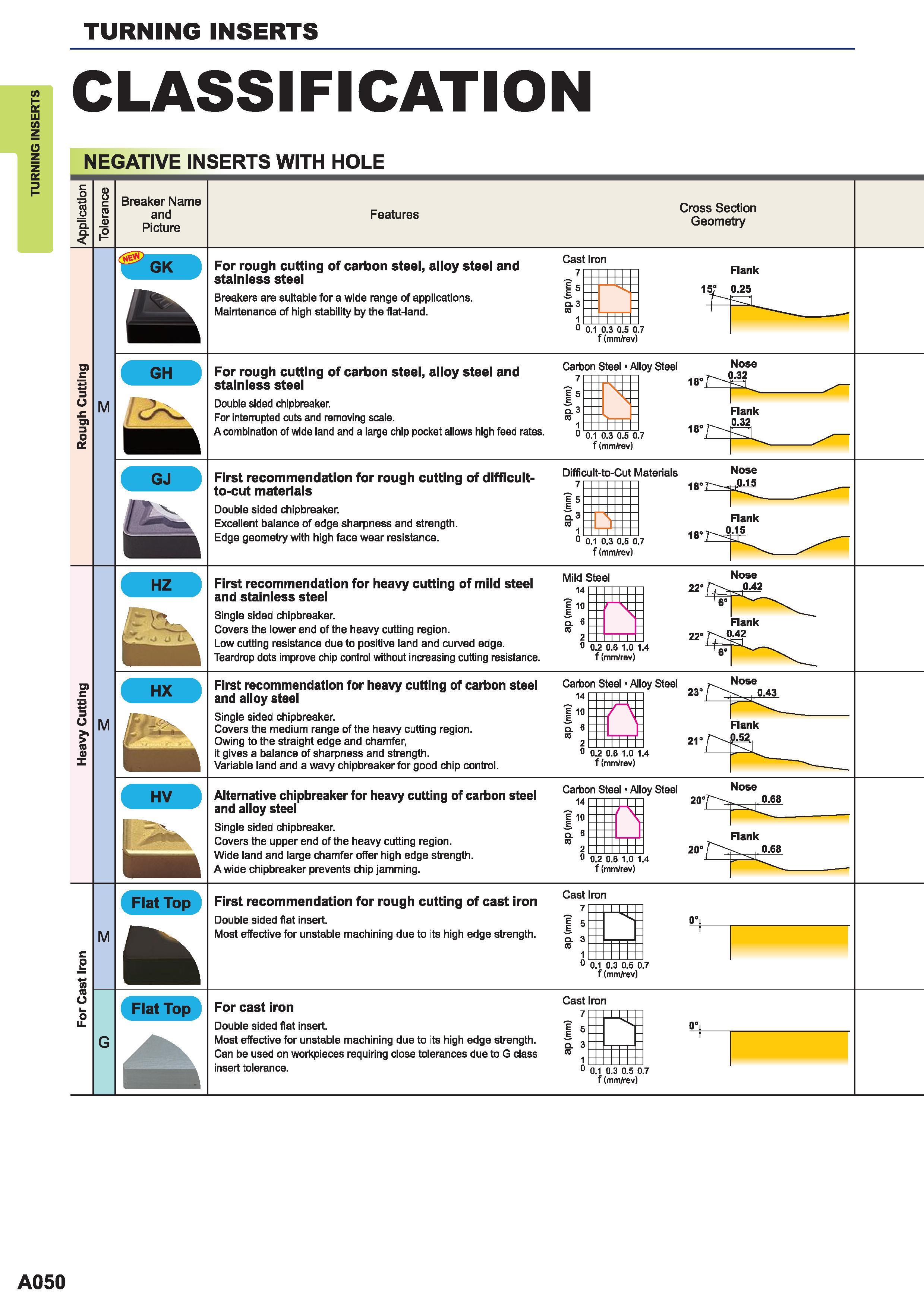

TURNING INSERTS TURNING INSERTS CLASSIFICATION NEGATIVE INSERTS WITH HOLE g a. a. Breaker Name and Picture Features Cross Section Geometry For rough cutting of carbon steel alloy steel and stainless steel Breakers are suitable for a wide range of applications. Maintenance of high stability by the flat-land. Cast Iron 7 0.3 CD 1 Jt 0 0.1 0.3 0.5 0.7 f (mm/rev) o -C 05 3 M For rough cutting of carbon steel alloy steel and stainless steel Double sided chipbreaker. For interrupted cuts and removing scale. A combination of wide land and a large chip pocket allows high feed rates. Carbon Steel Alloy Steel r q.3 CD 1 Nose 0.32 o 0.1 0.3 0.5 0.7 f (mm/rev) Flank GJ First recommendation for rough cutting of difficult-to-cut materials Double sided chipbreaker. Excellent balance of edge sharpness and strength. Edge geometry with high face wear resistance. Difficult-to-Cut Materials 7 i5t 0.3 . CD 1 0 0.1 0.3 0.5 0.7 f (mm/rev) IT Flank HZ First recommendation for heavy cutting of mild steel and stainless steel Single sided chipbreaker. Covers the lower end of the heavy cutting region. Low cutting resistance due to positive land and curved edge. Teardrop dots improve chip control without increasing cutting resistance. Mild Steel 14 110 1 m o 0.2 0.6 1.0 1.4 f (mm/rev) HX o n d M First recommendation for heavy cutting of carbon steel and alloy steel Single sided chipbreaker. Covers the medium range of the heavy cutting region. Owing to the straight edge and chamfer it gives a balance of sharpness and strength. Variable land and a wavy chipbreaker for good chip control. Carbon Steel Alloy Steel 14 110 Nose 23 0.43 o 0.2 0.6 1.0 1.4 f (mm/rev) Flank ar i HV Alternative chipbreaker for heavy cutting of carbon steel and alloy steel Single sided chipbreaker. Covers the upper end of the heavy cutting region. Wide land and large chamfer offer high edge strength. A wide chipbreaker prevents chip jamming. Carbon Steel Alloy Steel 14 I10 Nose 3nr . 0.68 0 0.2 0.6 1.0 1.4 f (mm/rev) Flank 20 0.68 Flat Top M First recommendation for rough cutting of cast iron Double sided flat insert. Most effective for unstable machining due to its high edge strength. Cast Iron 7 5 3 0.1 0.3 0.5 0.7 f (mm/rev) For cast iron Double sided flat insert. Most effective for unstable machining due to its high edge strength. Can be used on workpieces requiring close tolerances due to G class insert tolerance. Cast Iron 7 5 3 1 CD 0 0.1 0.3 0.5 0.7 f (mm/rev) A050
