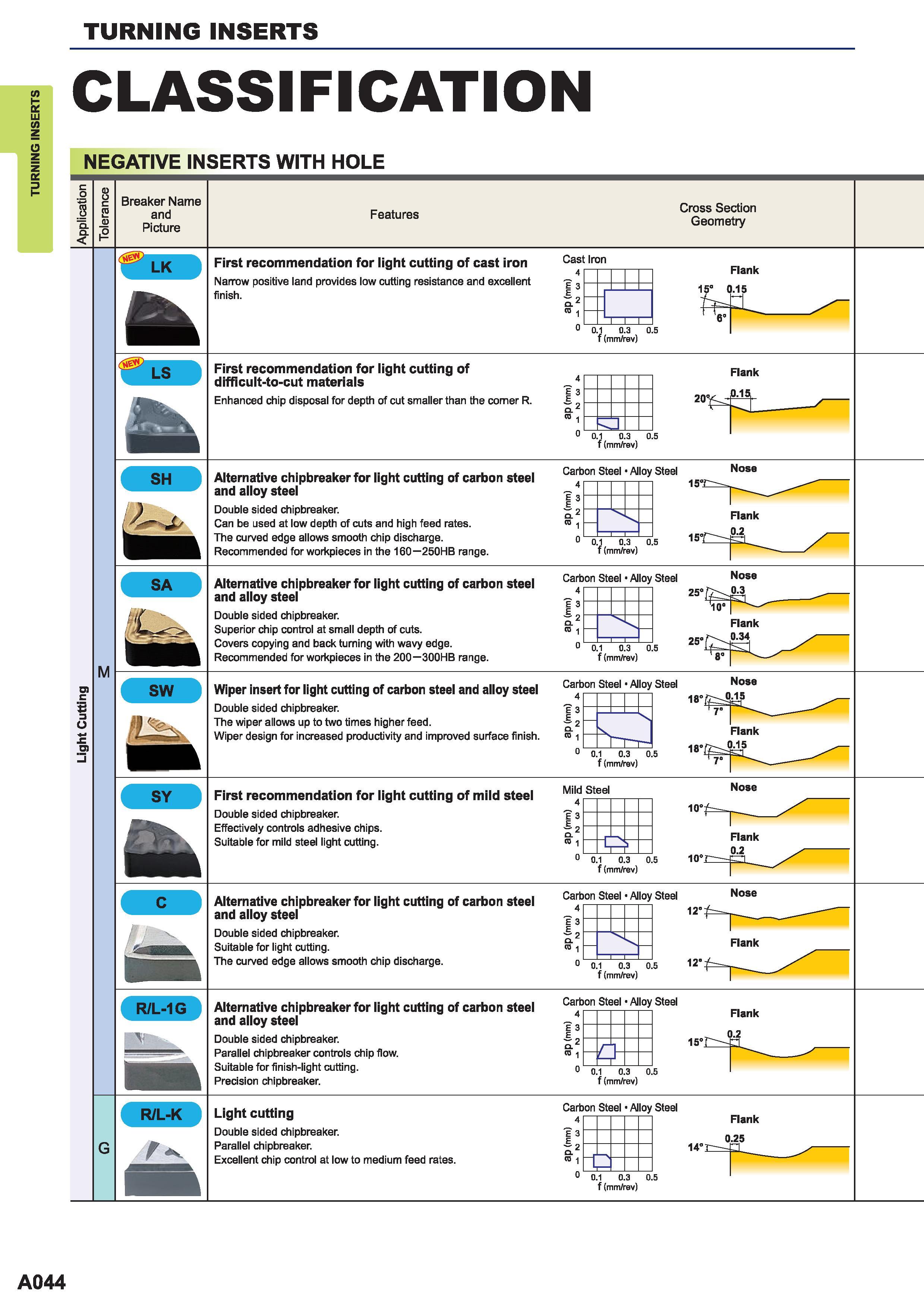

TURNING INSERTS TURNING INSERTS CLASSIFICATION NEGATIVE INSERTS WITH HOLE 0 1 a. a. Breaker Name and Picture Features Cross Section Geometry First recommendation for light cutting of cast iron Narrow positive land provides low cutting resistance and excellent finish. Cast Iron 4 I3 O 2 . 0 0.1 0.3 0.5 f (mm/rev) First recommendation for light cutting of difficult-to-cut materials Enhanced chip disposal for depth of cut smaller than the comer R. Flank f (mm/rev) SH Alternative chipbreaker for light cutting of carbon steel and alloy steel Double sided chipbreaker. Can be used at low depth of cuts and high feed rates. The curved edge allows smooth chip discharge. Recommended for workpieces in the 160 250HB range. Carbon Steel Alloy Steel 4 Nose 0 0.1 0.3 0.5 f (mm/rev) M Alternative chipbreaker for light cutting of carbon steel and alloy steel Double sided chipbreaker. Superior chip control at small depth of cuts. Covers copying and back turning with wavy edge. Recommended for workpieces in the 200 300HB range. Carbon Steel Alloy Steel 4 Nose 0 0.1 0.3 0.5 f (mm/rev) O) c 5 3 o sw Wiper insert for light cutting of carbon steel and alloy steel Double sided chipbreaker. The wiper allows up to two times higher feed. Wiper design for increased productivity and improved surface finish. Carbon Steel Alloy Steel 4T E 3 Nose 0 0.1 0.3 0.5 f (mm/rev) First recommendation for light cutting of mild steel Double sided chipbreaker. Effectively controls adhesive chips. Suitable for mild steel light cutting. Mild Steel 4 E 3 2 Nose 1 h- 0 0.1 0.3 0.5 f (mm/rev) Alternative chipbreaker for light cutting of carbon steel and alloy steel Double sided chipbreaker. Suitable for light cutting. The curved edge allows smooth chip discharge. Carbon Steel Alloy Steel 4T Nose 12" . 0 0.1 0.3 0.5 f (mm/rev) Alternative chipbreaker for light cutting of carbon steel and alloy steel Double sided chipbreaker. Parallel chipbreaker controls chip flow. Suitable for finish-light cutting. Precision chipbreaker. Carbon Steel Alloy Steel 4 3 i2 CD 1 0 Flank 0.1 0.3 f (mm/rev) Light cutting Double sided chipbreaker. Parallel chipbreaker. Excellent chip control at low to medium feed rates. Carbon Steel Alloy Steel 4 E 3 i2 tp Flank 0 0.1 0.3 0.5 f (mm/rev) A044
