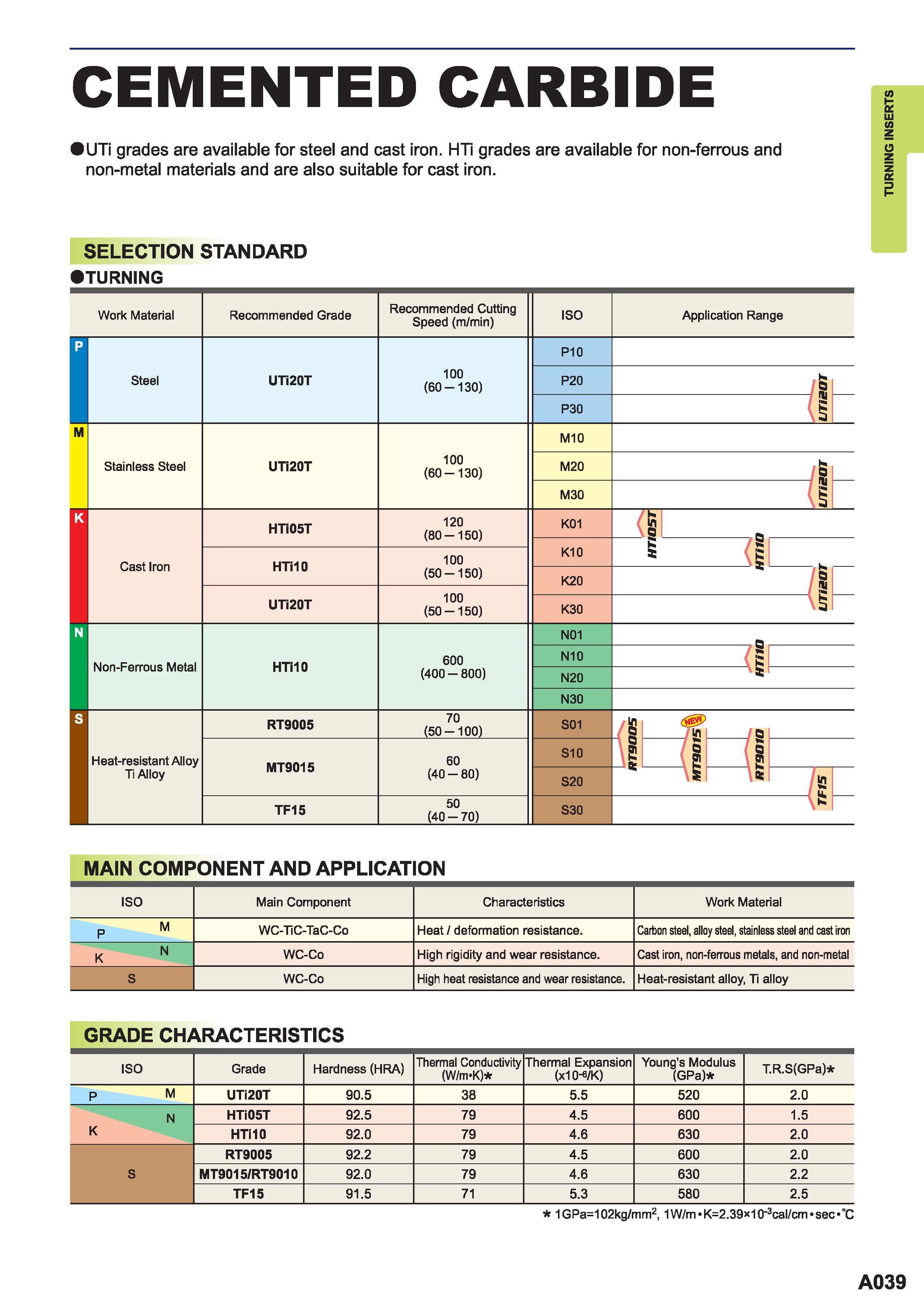

81 Каталог MITSUBISHI 2015 Токарный и вращающийся инструмент Инструментальные решения Стр.A039

Каталог MITSUBISHI 2015 Металлорежущий инструмент Стр. A039 0081 ENG Lab2u

CEMENTED CARBIDE UTi grades are available for steel and cast iron. HTi grades are available for non-ferrous and non-metal materials and are also suitable for cast iron. SELECTION STANDARD TURNING Work Material Steel Recommended Grade Recommended Cutting Speed (m/min) ISO Application Range UTi20T P10 100 (60-130) P20 P30 a M Stainless Steel UTi20T M10 100 (60-130) M20 M30 a Cast Iron HTi05T HTi10 UTi20T 120 (80-150) K01 100 (50-150) K10 i K20 100 (50-150) K30 Non-Ferrous Metal HTi10 N01 600 (400 - 800) N10 N20 N30 Heat-resistant Alloy Ti Alloy RT9005 MT9015 TF15 70 (50-100) S01 60 (40 - 80) S10 S20 ft ft 50 (40-70) S30 MAIN COMP ONENT AND APPLICAT ION iso Main Component Characteristics Work Material p M WC-TiC-TaC-Co Heat deformation resistance. Caibon steel alloy steel stainless steel and cast iron K N WC-Co High rigidity and wear resistance. Cast iron non-ferrous metals and non-metal s WC-Co High heat resistance and wear resistance. Heat-resistant alloy Ti alloy GRADE CHARACTERISTICS ISO Grade Hardness (HRA) Thermal Conductivity (W nvK) Thermal Expansion (x10-e K) Young's Modulus (GPa) T.R.S(GPa) p M UTi20T 90.5 38 5.5 520 2.0 N K HTi05T 92.5 79 4.5 600 1.5 HTi 10 92.0 79 4.6 630 2.0 S RT9005 92.2 79 4.5 600 2.0 MT9015 RT9010 92.0 79 4.6 630 2.2 TF15 91.5 71 5.3 580 2.5 1GPa102kg mm2 1 W m K2.39 10'3cal cm sec C A039 TURNING INSERTS
