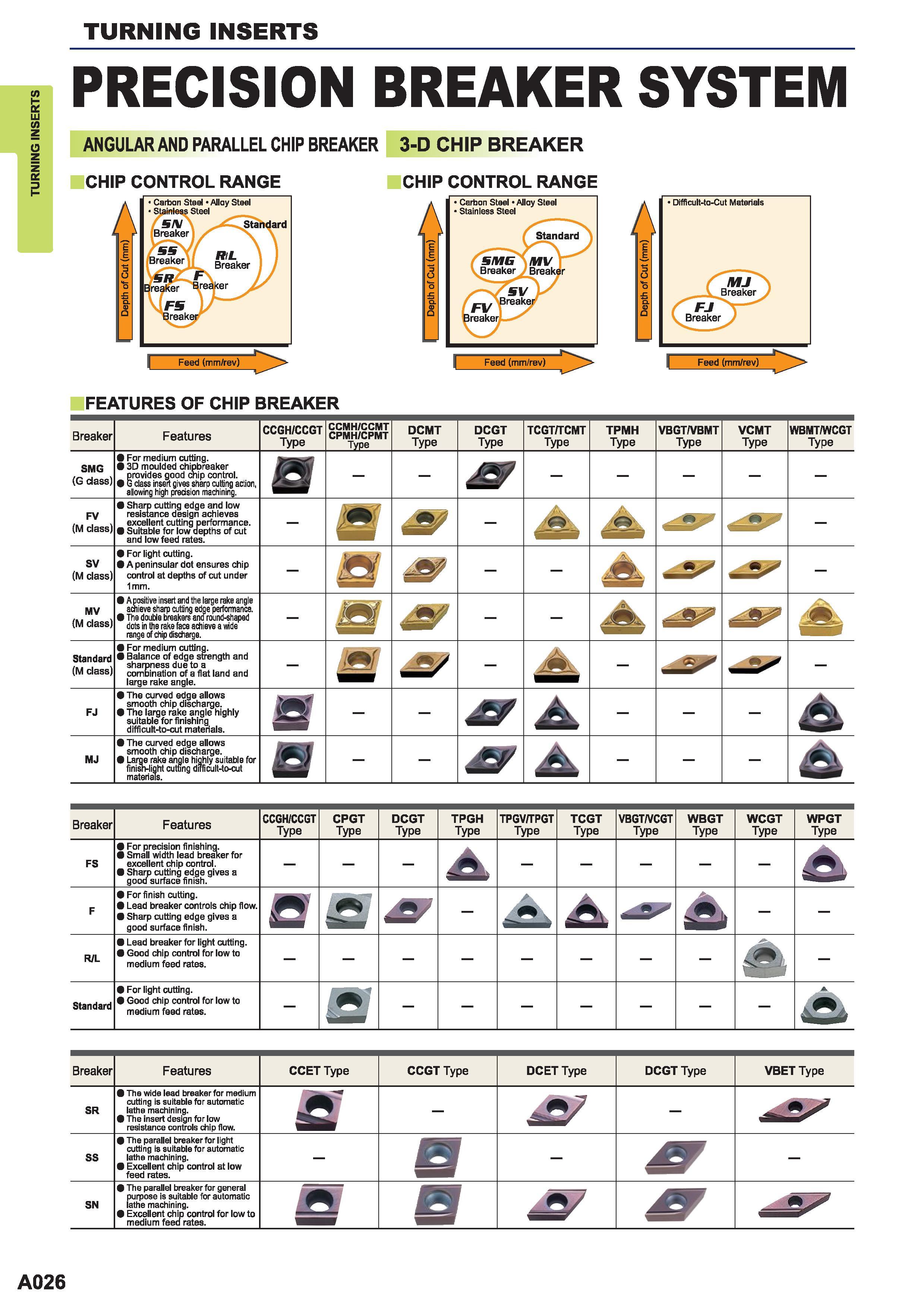

68 Каталог MITSUBISHI 2015 Токарный и вращающийся инструмент Инструментальные решения Стр.A026

Каталог MITSUBISHI 2015 Металлорежущий инструмент Стр. A026 0068 ENG Lab2u

TURNING INSERTS TURNING INSERTS PRECISION BREAKER SYSTEM ANGULAR AND PARALLEL CHIP BREAKER 3-D CHIP BREAKER CHIP CONTROL RANGE CHIP CONTROL RANGE Feed (mm/rev) FEATURES OF CHIP BREAKER Breaker Features CCGH CCGT Type CCMH CCMT CPMH CPMT Type DCMT Type DCGT Type TCGT TCMT Type TPMH Type VBGT VBMT Type VCMT Type WBMT WCGT Type SMG (G dass) For medium cutting. 3D moulded chipbreaker provides good cnip control. G class insert gives sharp culling action allowing high precision machining. a & FV (M dass) Sharp cutting edge and low resistance design achieves excellent cutting performance. Suitable for low depths of cut and low feed rates. m SV (M class) For light cutting. A peninsular dot ensures chip control at depths of cut under 1mm. & JL MV (M class) A positive insert and the large rake angle achieve sharp cutting edge performance. The double breakers ana round-shaped dots in the rake face achieve a wide range of chip discharge. & Standard (M dass) For medium cutting. Balance of edge strength and sharpness due to a combination of a flat land and large rake angle. Mf jg -2 -S FJ The curved edge allows smooth chip discharge. The large rake angle highly suitable for finishing difficult-to-cut materials. A & MJ The curved edge allows smooth chip discharge. Large rake angle highly suitable for finish-light cutting dirficult-to-cut XT A & Breaker Features CCGH CCGT Type CPGT Type DCGT Type TPGH Type TPGV TPGT Type TCGT Type VBGT VCGT Type WBGT Type WCGT Type WPGT Type FS For precision finishing. Small width lead breaker for excellent chip control. Sharp cutting edge gives a good surface finish. A F For finish cutting. Lead breaker controls chip flow. Sharp cutting edge gives a good surface finish. a & A. m. A R7L Lead breaker for light cutting. Good chip control for low to medium feed rates. Standard For light cutting. Good chip control for low to medium feed rates. fl A Breaker Features CCET Type CCGT Type DCET Type DCGT Type VBET Type SR The wide lead breaker far medium cutting is suitable far automatic lathe machining. The insert design far low resistance controls chip flow. B SS The parallel breaker for light cutting is suitable for automatic lathe machining. Excellent chip control at low feed rates. B & SN The parallel breaker far general purpose is suitable for automatic lathe machining. Excellent chip control for low to medium feed rates. O m & my A026
