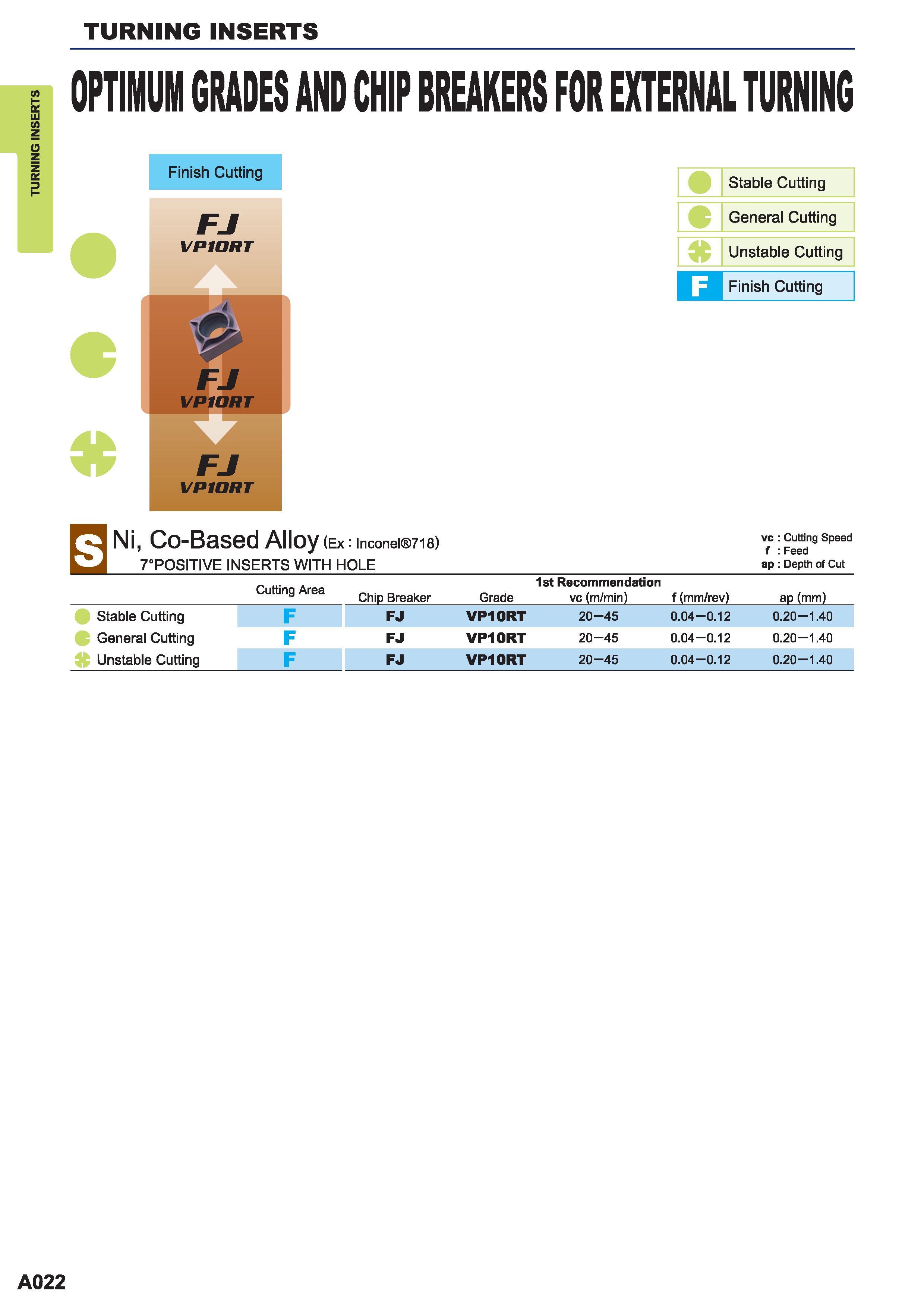

TURNING INSERTS TURNING INSERTS OPTIMUM GRADES AND CHIP BREAKERS FOR EXTERNAL TURNING Finish Cutting FJ VPIORT a FJ VPIORT FJ VPIORT Stable Cutting General Cutting Unstable Cutting Finish Cutting Ni Co-Based Alloy (ex inconei 7i8) 7; Speed 7-POSITIVE INSERTS WITH HOLE ap Depth of Cut Cutting Area Chip Breaker Grade 1st Recommendation vc (m/min) f (mm/rev) ap (mm) Stable Cutting F FJ VP10RT 20-45 0.04-0.12 0.20-1.40 General Cutting F FJ VP10RT 20-45 0.04-0.12 0.20-1.40 Unstable Cutting F FJ VP10RT 20-45 0.04-0.12 0.20-1.40 A022
