Mitsubishi токарный инструмент с режущими сменными пластинами для наружного проходного точения и подрезки торца заготовки Резцы PCLNR/L DCLNR/L

Mitsubishi токарный инструмент с режущими сменными пластинами для наружного проходного точения и подрезки торца заготовки Резцы PCLNR/L DCLNR/L

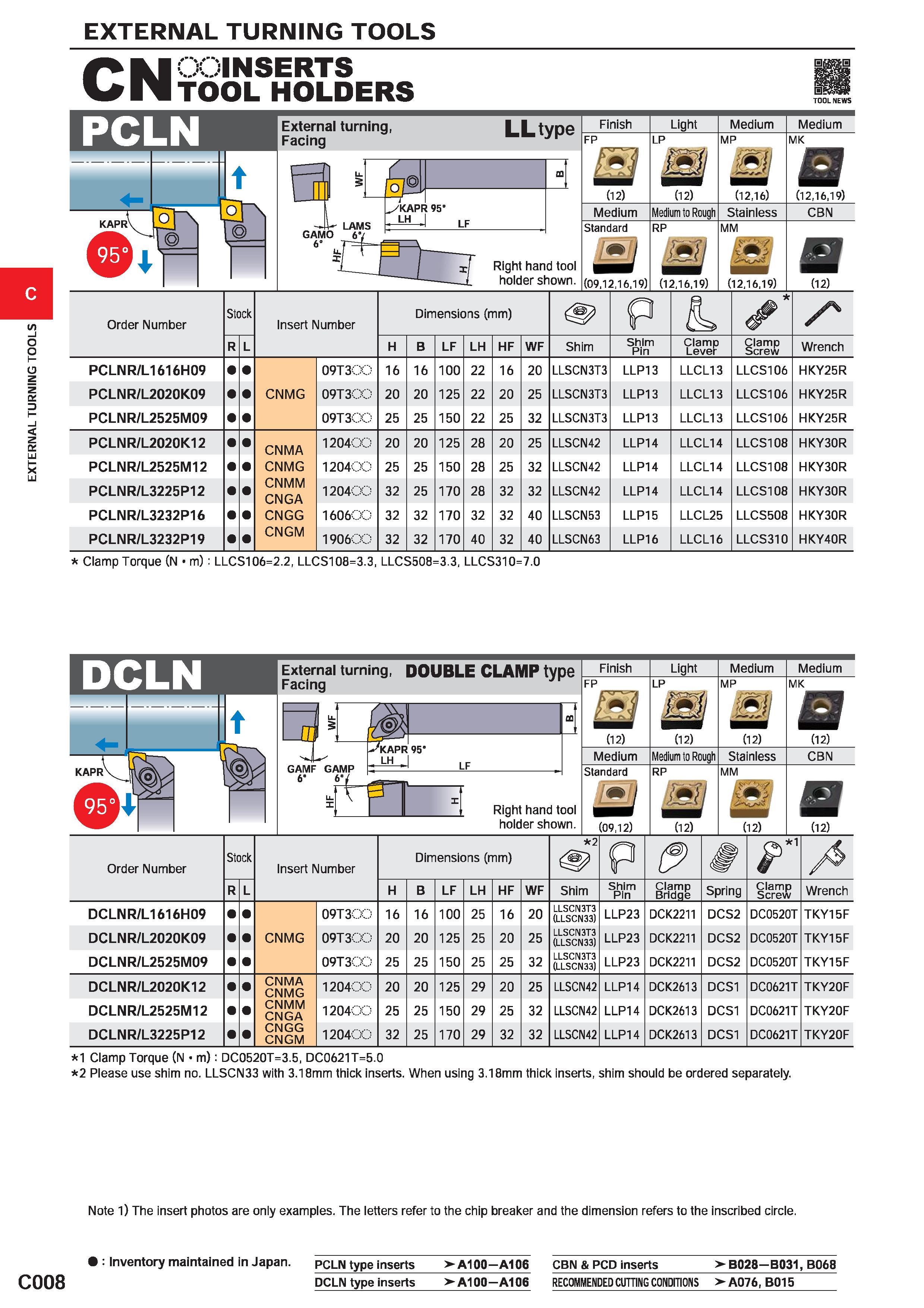

Mitsubishi токарный инструмент с режущими сменными пластинами для наружного проходного точения и подрезки торца заготовки Резцы PCLNR/L DCLNR/L _ EXTERNAL TURNING TOOLS EXTERNAL TURNING TOOLS c C008 : V CN INSERTS TOOL HOLDERS 0S TOOL NEWS External turning, Facing LLtype Right hand tool holder shown. Finish FP (12) Medium Standard (09,12,16,19) Light Medium to Rough Medium MP (12,16) Stainless MM (12,16,19) Medium MK (12,16,19) CBN (12) Order Number Stock Insert Number Dimensions (mm) P R L H B LF LH HF WF Shim Shim Pin Clamp Lever Clamp Screw Wrench PCLNR/L1616H09 09T300 16 16 100 22 16 20 LLSCN3T3 LLP13 LLCL13 LLCS106 HKY25R PCLNR/L2020K09 CNMG 09T300 20 20 125 22 20 25 LLSCN3T3 LLP13 LLCL13 LLCS106 HKY25R PCLNR/L2525M09 09T300 25 25 150 22 25 32 LLSCN3T3 LLP13 LLCL13 LLCS106 HKY25R PCLNR/L2020K12 CNMA 120400 20 20 125 28 20 25 LLSCN42 LLP14 LLCL14 LLCS108 HKY30R PCLNR/L2525M12 CNMG 120400 25 25 150 28 25 32 LLSCN42 LLP14 LLCL14 LLCS108 HKY30R PCLNR/L3225P12 CNMM CNGA 120400 32 25 170 28 32 32 LLSCN42 LLP14 LLCL14 LLCS108 HKY30R PCLNR/L3232P16 CNGG 160600 32 32 170 32 32 40 LLSCN53 LLP15 LLCL25 LLCS508 HKY30R PCLNR/L3232P19 CNGM 190600 32 32 170 40 32 40 LLSCN63 LLP16 LLCL16 LLCS310 HKY40R Clamp Torque (N m) : LLCS106=2.2, LLCS108=3.3, LLCS508=3.3, LLCS310=7.0 External turning, DOUBLE CLAMP type Facing Right hand tool holder shown. Finish Medium Standard (09,12) Light LP mj Hj (12) (12) Medium to Rough RP Mj (12) Medium MP Stainless MM Medium MK (12) CBN (12) Order Number Stock Insert Number Dimensions (mm) 2 P & R L H B LF LH HF WF Shim Shim Pin Clamp Bridqe Spring Clamp Screw Wrench DCLNR/L1616H09 09T300 16 16 100 25 16 20 LLSCN3T3 (LLSCN33) LLP23 DCK2211 DCS2 DC0520T TKY15F DCLNR/L2020K09 CNMG 09T300 20 20 125 25 20 25 LLSCN3T3 (LLSCN33) LLP23 DCK2211 DCS2 DC0520T TKY15F DCLNR/L2525M09 09T300 25 25 150 25 25 32 LLSCN3T3 (LLSCN33) LLP23 DCK2211 DCS2 DC0520T TKY15F DCLNR/L2020K12 CNMA CNMG 120400 20 20 125 29 20 25 LLSCN42 LLP14 DCK2613 DCS1 DC0621T TKY20F DCLNR/L2525M12 CNMM CNGA 120400 25 25 150 29 25 32 LLSCN42 LLP14 DCK2613 DCS1 DC0621T TKY20F DCLNR/L3225P12 CNGG CNGM 120400 32 25 170 29 32 32 LLSCN42 LLP14 DCK2613 DCS1 DC0621T TKY20F 1 Clamp Torque (N m): DC0520T=3.5, DC0621T=5.0 2 Please use shim no. LLSCN33 with 3.18mm thick inserts. When using 3.18mm thick inserts, shim should be ordered separately. Note 1) The insert photos are only examples. The letters refer to the chip breaker and the dimension refers to the inscribed circle. : Inventory maintained in Japan. PCLN type inserts > A100-A106 CBN & PCD inserts >B028-B031, B068 DCLN type inserts > A100-A106 RECOMMENDED CUTTING CONDITIONS > A076, B015
