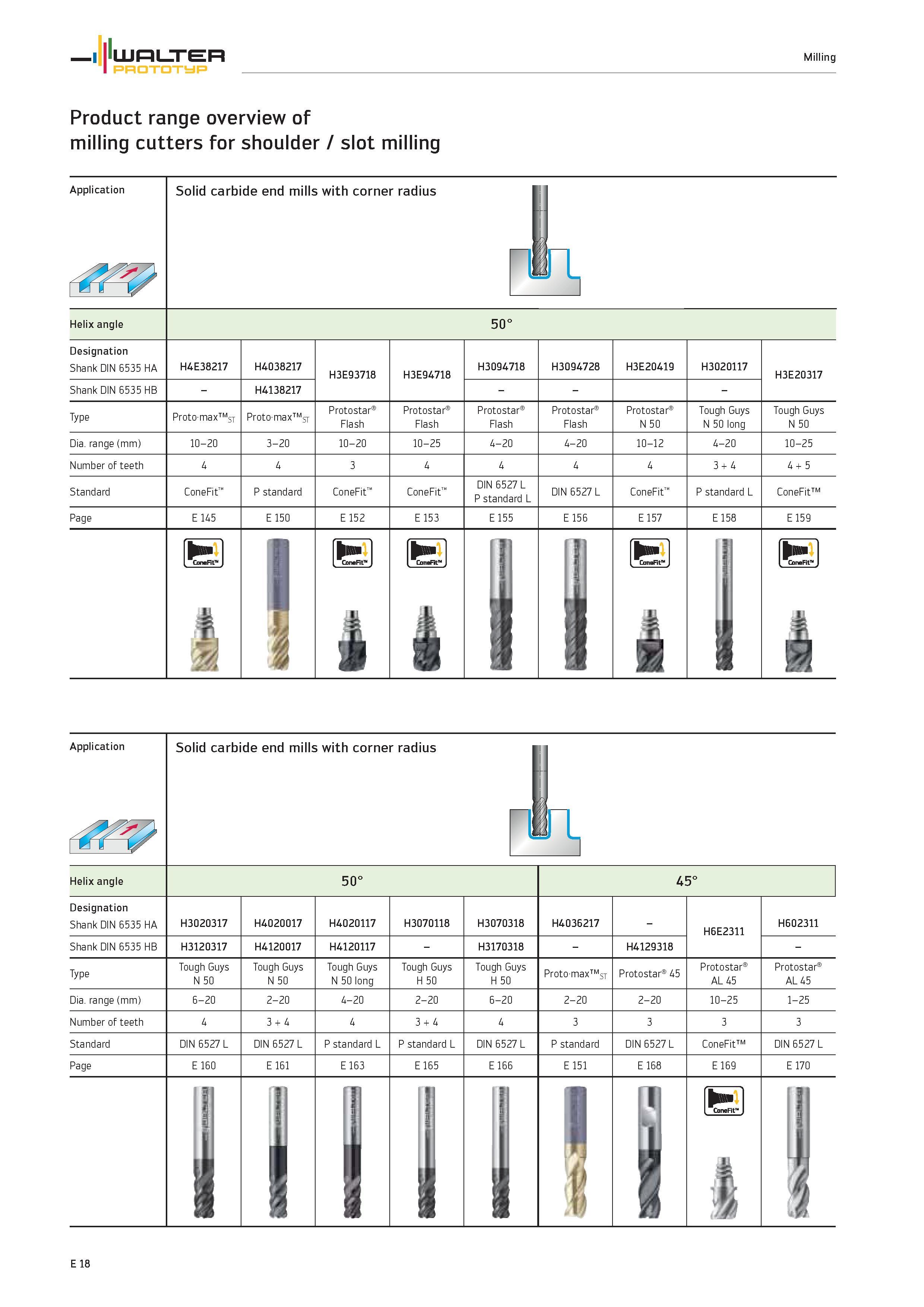

Milling Product range overview of milling cutters WALTER Prototyp for shoulder / slot milling Application Solid carbide end mills with corner radius nn Helix angle 50° Designation Shank DIN 6535 HA H4E38217 Shank DIN 6535 HB H4038217 H4138217 H3E93718 H3E94718 H3094718 H3094728 H3E20419 H3020117 H3E20317 Type Protomax S- Proto-max s Protostar Flash Protostar Flash Protostar Flash Protostar Flash Protostar N 50 Tough Guys N 50 long Tough Guys N 50 Dia. range (mm) 10-20 3-20 10-20 10-25 4-20 4-20 10-12 4-20 10-25 Number of teeth 3 + 4 4 + 5 Standard ConeFit P standard ConeFit ConeFit DIN 6527 L P standard L DIN 6527L ConeFit P standard L ConeFit Page E 145 E 150 E 152 i E 153 E 155 E 156 E 157 E 158 E 159 4 Application Solid carbide end mills with corner radius Helix angle 50° 45° Designation Shank DIN 6535 HA H3020317 Shank DIN 6535 HB H3120317 H4020017 H4120017 H4020117 H4120117 H3070118 H3070318 H4036217 H3170318 H4129318 H6E2311 H602311 Type Tough Guys N 50 Tough Guys N 50 Tough Guys N 50 long Tough Guys H 50 Tough Guys H 50 Protomax S- Protostar 45 Protostar AL 45 Protostar AL 45 Dia. range (mm) 6-20 2-20 4-20 2-20 6-20 2-20 2-20 10-25 1-25 Number of teeth 3 + 4 3 + 4 Standard DIN 6527 L DIN 6527 L P standard L P standard L DIN 6527 L P standard DIN 6527L ConeFit DIN 6527 L Page E 160 E 161 E 163 E 165 E 166 E 151 E 168 E 169 E 170 4 4 4 3 3 3 3 E 18
