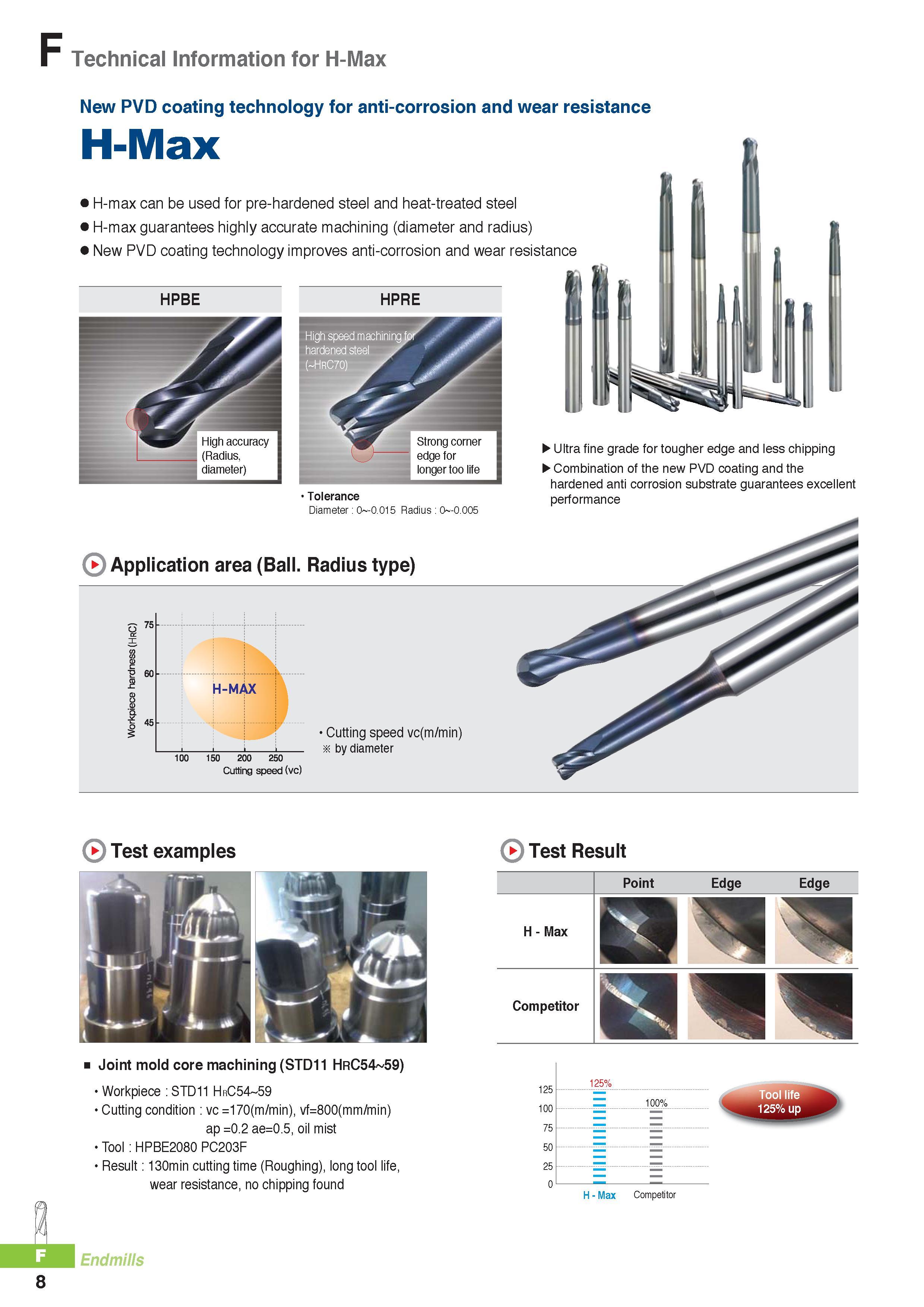

Metal machining CNC tools Korloy solid end mills H-Max Technical Information New PVD coating technology for anti-corrosion and wear resistance H-max can be used for pre-hardened steel and heat-treated steel H-max guarantees highly accurate machining (diameter and radius) New PVD coating technology improves anti-corrosion and wear resistance HPBE HPRE High speed machining fc JF jr hardened steel ( HrC70) Jr Jr y w / s Strong corner edge for longer too life Tolerance Diameter 0 -0.015 Radius 0 -0.005 Ultra fine grade for tougher edge and less chipping Combination of the new PVD coating and the hardened anti corrosion substrate guarantees excellent performance Application area (Ball. Radius type) 100 1 50 200 250 Cutting speed (vc) Cutting speed vc(m/min) by diameter Test examples Test Result H - Max Competitor Point Edge Edge ± Joint mold core machining (STD11 HrC54 59) Workpiece STD11 HrC54 59 Cutting condition vc =170(m/min), vf=800(mm/min) ap =0.2ae=0.5, oil mist Tool HPBE2080 PC203F Result: 130min cutting time (Roughing), long tool life, wear resistance, no chipping found Endmills 125 100 75 50 25 0 125% 100% H - Max Competitor 8 H-Max
