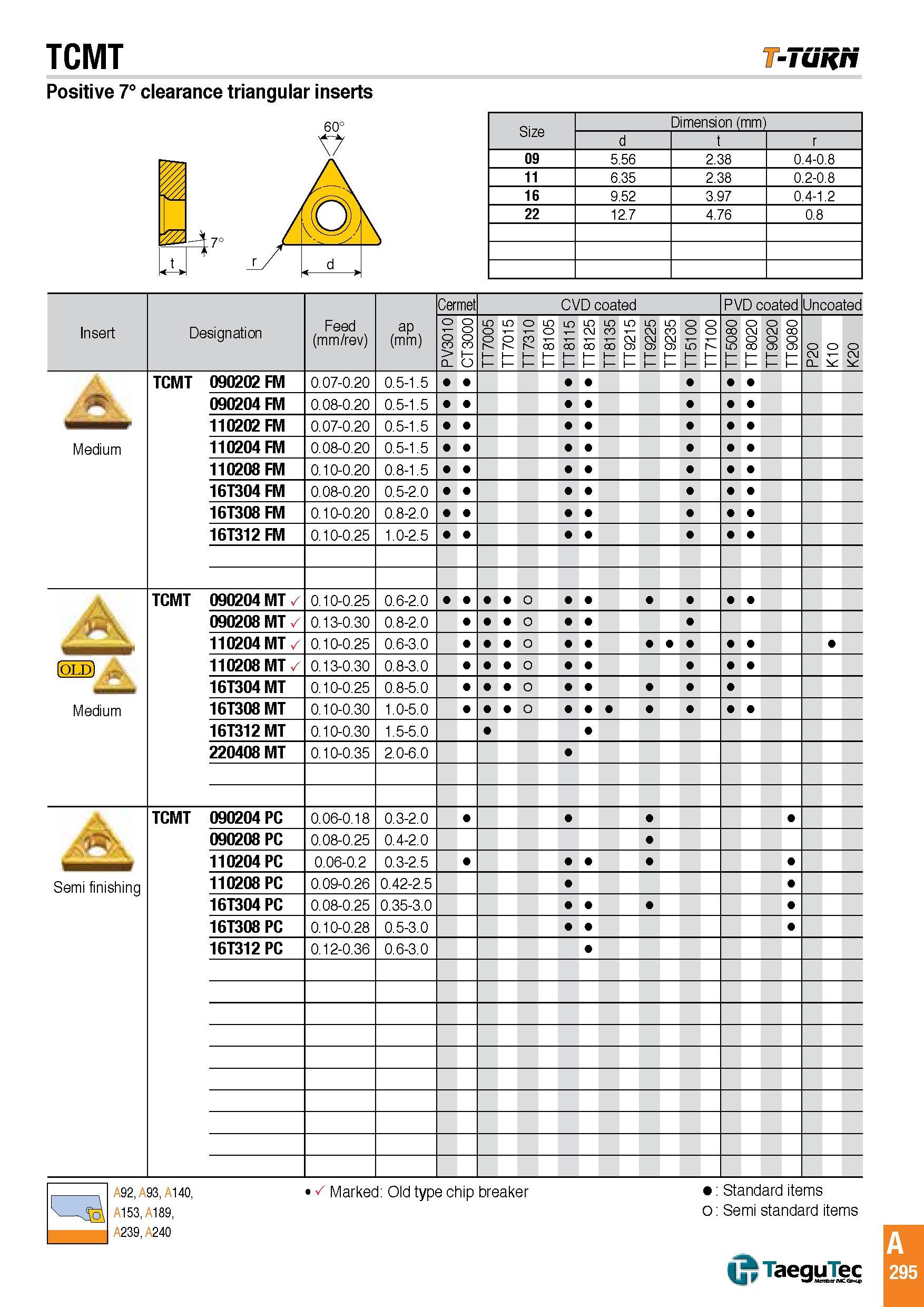

TCMT -Tunri Positive 7° clearance triangular inserts 47 Size Dimension (mm) d r 09 5.56 2.38 0.4-0.8 11 6.35 2.38 0.2-0.8 16 9.52 3.97 0.4-1.2 22 12.7 4.76 0.8 Insert Designation Feed (mm/rev) ap (mm) Cermet CVD coated PVD coated Uncoatec PV3010 O o o 3 1 o TT7005 TT7015 TT7310 TT8105 TT8115 TT8125 TT8135 TT9215 TT9225 TT9235 TT5100 O o TT i TT5080I TT8020 TT9020 O 8 o 9 TT 1 o 2 CL o o CM Medium TCMT 090202 FM 0.07-0.20 0.5-1.5 090204 FM 0.08-0.20 0.5-1.5 110202 FM 0.07-0.20 0.5-1.5 110204 FM 0.08-0.20 0.5-1.5 110208 FM 0.10-0.20 0.8-1.5 16T304 FM 0.08-0.20 0.5-2.0 16T308 FM 0.10-0.20 0.8-2.0 16T312 FM 0.10-0.25 10-2.5 TCMT 090204 MT / 0.10-0.25 0.6-2.0 0 090208 MT / 0.13-0.30 0.8-2.0 0 110204 MT / 0.10-0.25 0.6-3.0 o (old) 110208 MT / 0.13-0.30 0.8-3.0 0 16T304 MT 0.10-0.25 0.8-5.0 0 Medium 16T308 MT 0.10-0.30 1.0-5.0 o 16T312 MT 0.10-0.30 15-5.0 220408 MT 0.10-0.35 2.0-6.0 .A. TCMT 090204 PC 0.06-0.18 0.3-2.0 090208 PC 0.08-0.25 0.4-2.0 110204 PC 0.06-0.2 0.3-2.5 Semi finishing 110208 PC 0.09-0.26 0.42-2.5 16T304 PC 0.08-0.25 0.35-3.0 16T308 PC 0.10-0.28 0.5-3.0 16T312 PC 0.12-0.36 0.6-3.0 A92, A93, A140, A153, A189, A239, A240 Marked Old type chip breaker Standard items o Semi standard items ( TaeguTec A 295
