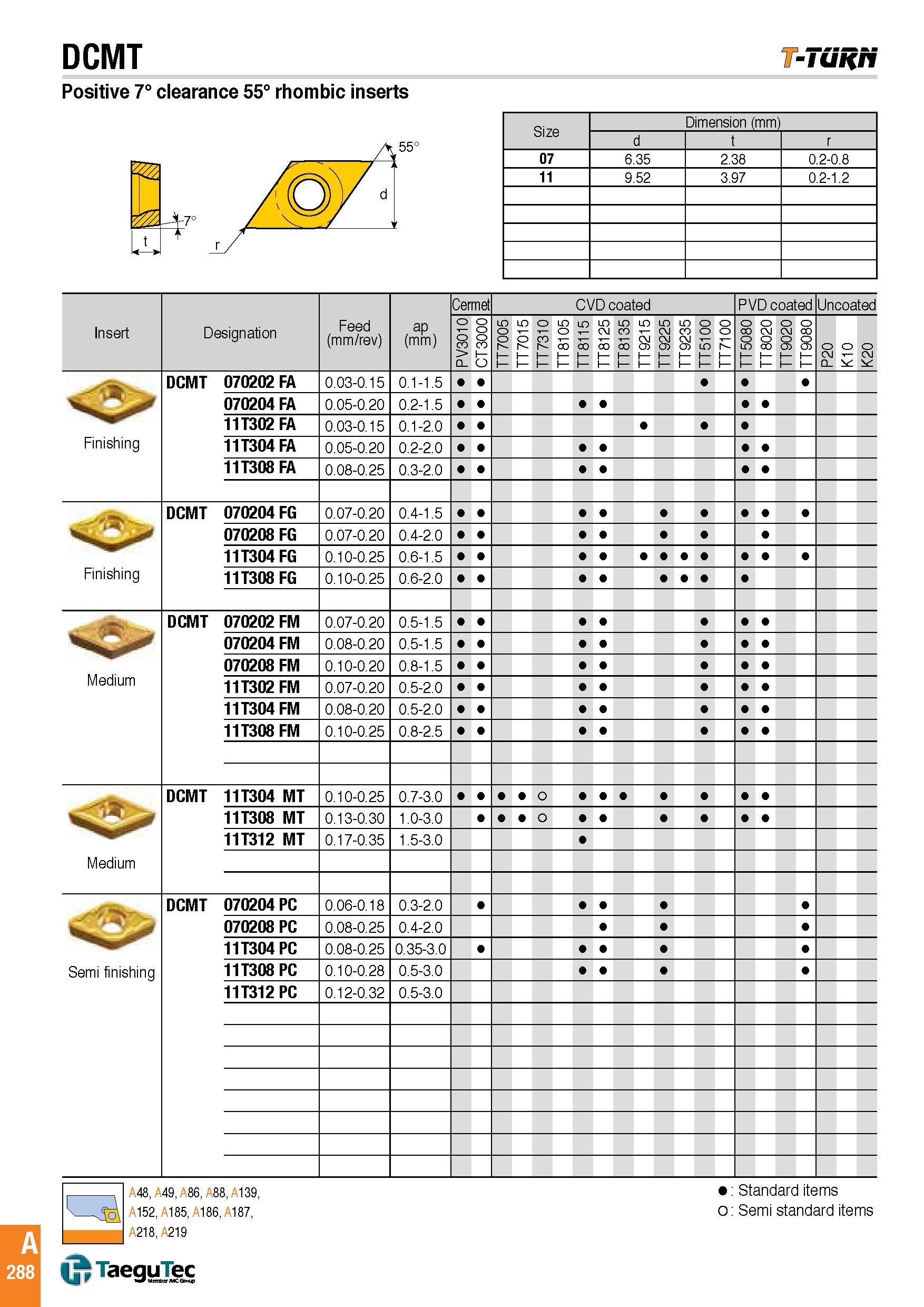

DCMT T-Tuifn Positive 7° clearance 55° rhombic inserts Size Dimension (mm) d t r 07 6.35 2.38 0.2-0.8 11 9.52 3.97 0.2-1.2 Insert Designation Feed (mm/rev) ap (mm) Cermet CVD coated PVD coated Uncoatec o o CO CL o o o 3 1 o TT7005 TT7015 TT7310 TT8105 TT8115 TT8125 TT8135 TT9215 TT9225 TT9235 TT5100 O o TT 1 TT5080I TT8020 TT9020 O 8 o c& TT 1 o CM CL O o CM DCMT 070202 FA 0.03-0.15 0.1-1.5 070204 FA 0.05-0.20 0.2-1.5 Finishing 11T302 FA 0.03-0.15 0.1-2.0 11T304 FA 0.05-0.20 0.2-2.0 11T308 FA 0.08-0.25 0.3-2.0 Finishing DCMT 070204 FG 0.07-0.20 0.4-1.5 070208 FG 0.07-0.20 0.4-2.0 11T304 FG 0.10-0.25 0.6-1.5 11T308 FG 0.10-0.25 0.6-2.0 Medium DCMT 070202 FM 0.07-0.20 0.5-1.5 070204 FM 0.08-0.20 0.5-1.5 070208 FM 0.10-0.20 0.8-1.5 11T302 FM 0.07-0.20 0.5-2.0 11T304 FM 0.08-0.20 0.5-2.0 11T308 FM 0.10-0.25 0.8-2.5 DCMT 11T304 MT 0.10-0.25 0.7-3.0 o 11T308 MT 0.13-0.30 1.0-3.0 o Medium 11T312 MT 0.17-0.35 1.5-3.0 Semi finishing DCMT 070204 PC 0.06-0.18 0.3-2.0 070208 PC 0.08-0.25 0.4-2.0 11T304 PC 0.08-0.25 0.35-3.0 11T308 PC 0.10-0.28 0.5-3.0 11T312 PC 0.12-0.32 0.5-3.0 A48, A49, A86, A88, A139, A152, A185, A186, A187, A218, A219 Standard items o Semi standard items TaeguTec A 288
