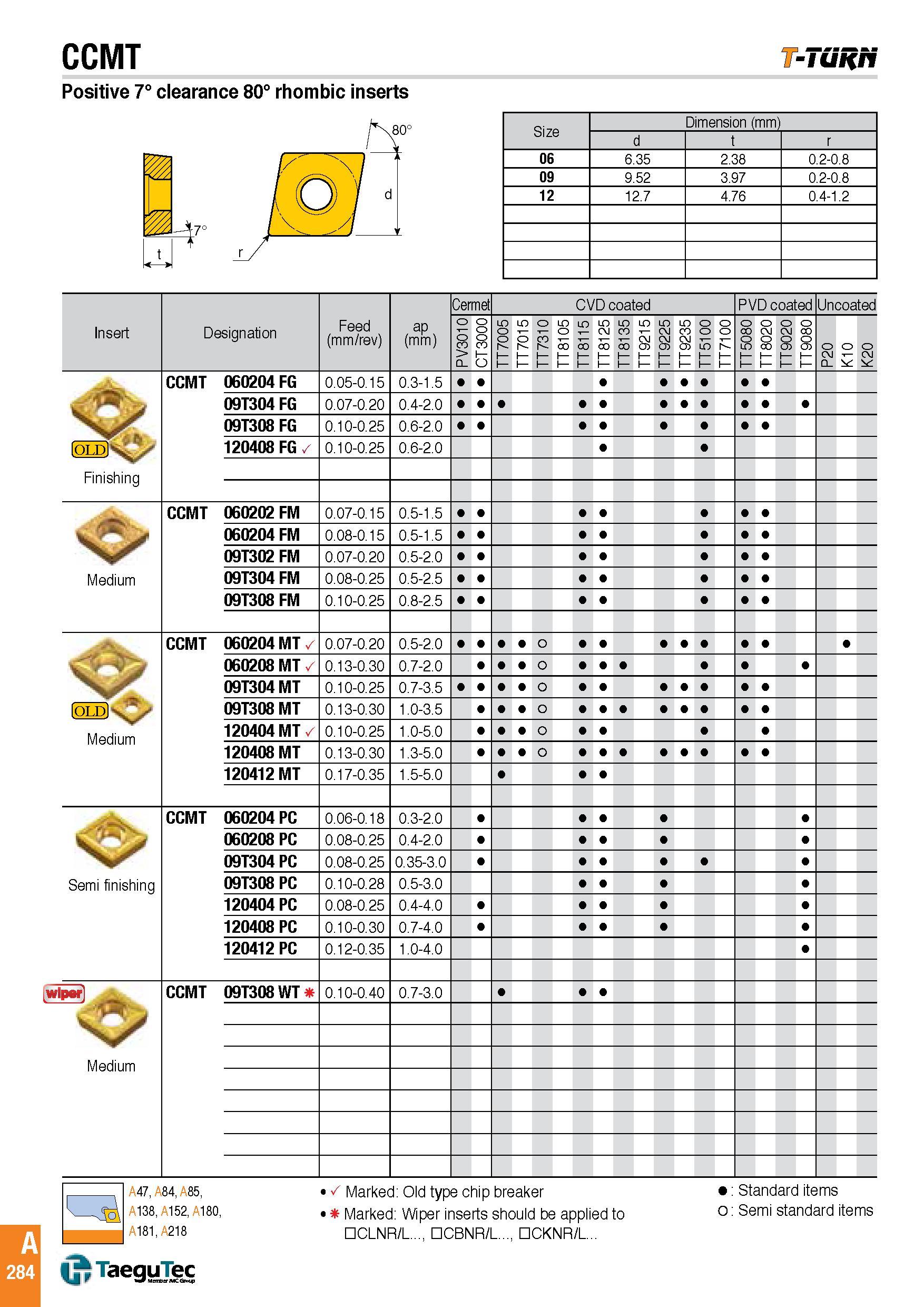

CCMT T-Tuifn Positive 7° clearance 80° rhombic inserts 47 Size Dimension (mm) d t r 06 6.35 2.38 0.2-0.8 09 9.52 3.97 0.2-0.8 12 12.7 4.76 0.4-1.2 Insert Designation Feed (mm/rev) ap (mm) Cermet CVD coated PVD coated Uncoatec o o CO CL o o o 3 1 o TT7005 TT7015 TT7310 TT8105 TT8115 TT8125 TT8135 TT9215 TT9225 TT9235 TT5100 O o TT 1 TT5080I TT8020 TT9020 O 8 o 9 TT 1 o CM CL O o CM & (OLD) Finishing CCMT 060204 FG 0.05-0.15 0.3-1.5 09T304 FG 0.07-0.20 0.4-2.0 09T308 FG 0.10-0.25 0.6-2.0 120408 FG / 0.10-0.25 0.6-2.0 Medium CCMT 060202 FM 0.07-0.15 0.5-1.5 060204 FM 0.08-0.15 0.5-1.5 09T302 FM 0.07-0.20 0.5-2.0 09T304 FM 0.08-0.25 0.5-2.5 09T308 FM 0.10-0.25 0.8-2.5 (OLD CCMT 060204 MT / 0.07-0.20 0.5-2.0 o 060208 MT / 0.13-0.30 0.7-2.0 o 09T304 MT 0.10-0.25 0.7-3.5 o 09T308 MT 0.13-0.30 1.0-3.5 Medium 120404 MT / 0.10-0.25 1.0-5.0 o 120408 MT 0.13-0.30 1.3-5.0 120412 MT 0.17-0.35 1.5-5.0 Semi finishing CCMT 060204 PC 0.06-0.18 0.3-2.0 060208 PC 0.08-0.25 0.4-2.0 09T304 PC 0.08-0.25 0.35-3.0 09T308 PC 0.10-0.28 0.5-3.0 120404 PC 0.08-0.25 0.4-4.0 120408 PC 0.10-0.30 0.7-4.0 120412 PC 0.12-0.35 1.0-4.0 CCMT 09T308 WT 0.10-0.40 0.7-3.0 O Medium is A47, A84, A85, A138, A152, A180, A181, A218 / Marked Old type chip breaker Marked Wiper inserts should be applied to CLNR/L..., CBNR/L..., CKNR/L Standard items o Semi standard items U TaeguTec
