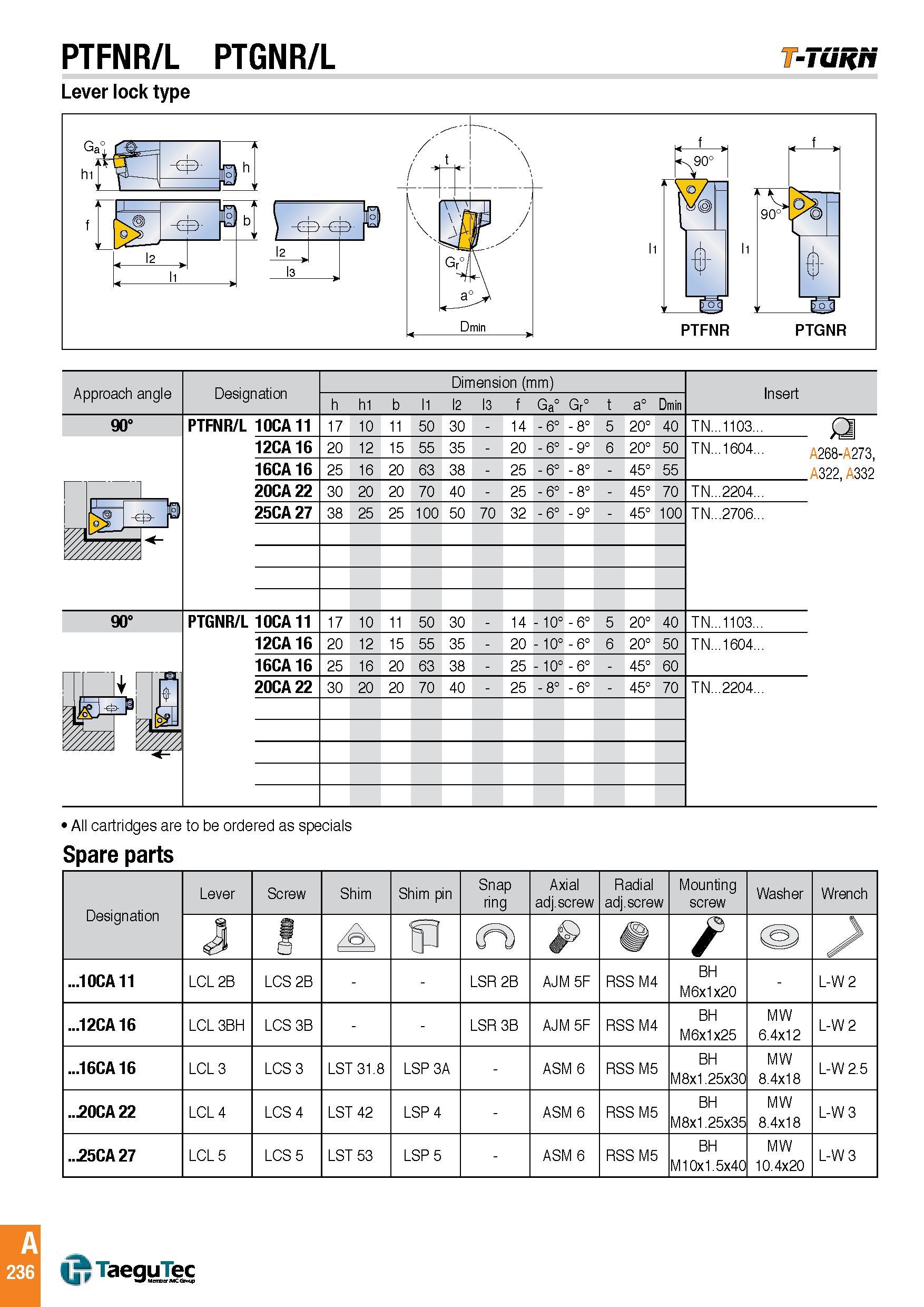

PTFNR/L PTGNR/L -Tuh/t Lever lock type All cartridges are to be ordered as specials Spare parts Designation Lever Screw Shim Shim pin Snap ring Axial adj.screw Radial adj.screw Mounting screw Washer Wrench J 1 P (n) dD ...10CA 11 LCL 2B LCS 2B - - LSR 2B AJM 5F RSS M4 BH M6x1x20 - L-W 2 ...12CA 16 LCL 3BH LCS 3B - - LSR 3B AJM 5F RSS M4 BH M6x1x25 MW 6.4x12 L-W 2 ...16CA 16 LCL 3 LCS 3 LST 31.8 LSP 3A - ASM 6 RSS M5 BH M8x1.25x30 MW 8.4x18 L-W 2.5 ...20CA 22 LCL 4 LCS 4 LST 42 LSP 4 - ASM 6 RSS M5 BH M8x1.25x35 MW 8.4x18 L-W 3 ...25CA 27 LCL 5 LCS 5 LST 53 LSP 5 - ASM 6 RSS M5 BH M10x1.5x40 MW 10.4x20 L-W 3 A 236 TaeguTec
