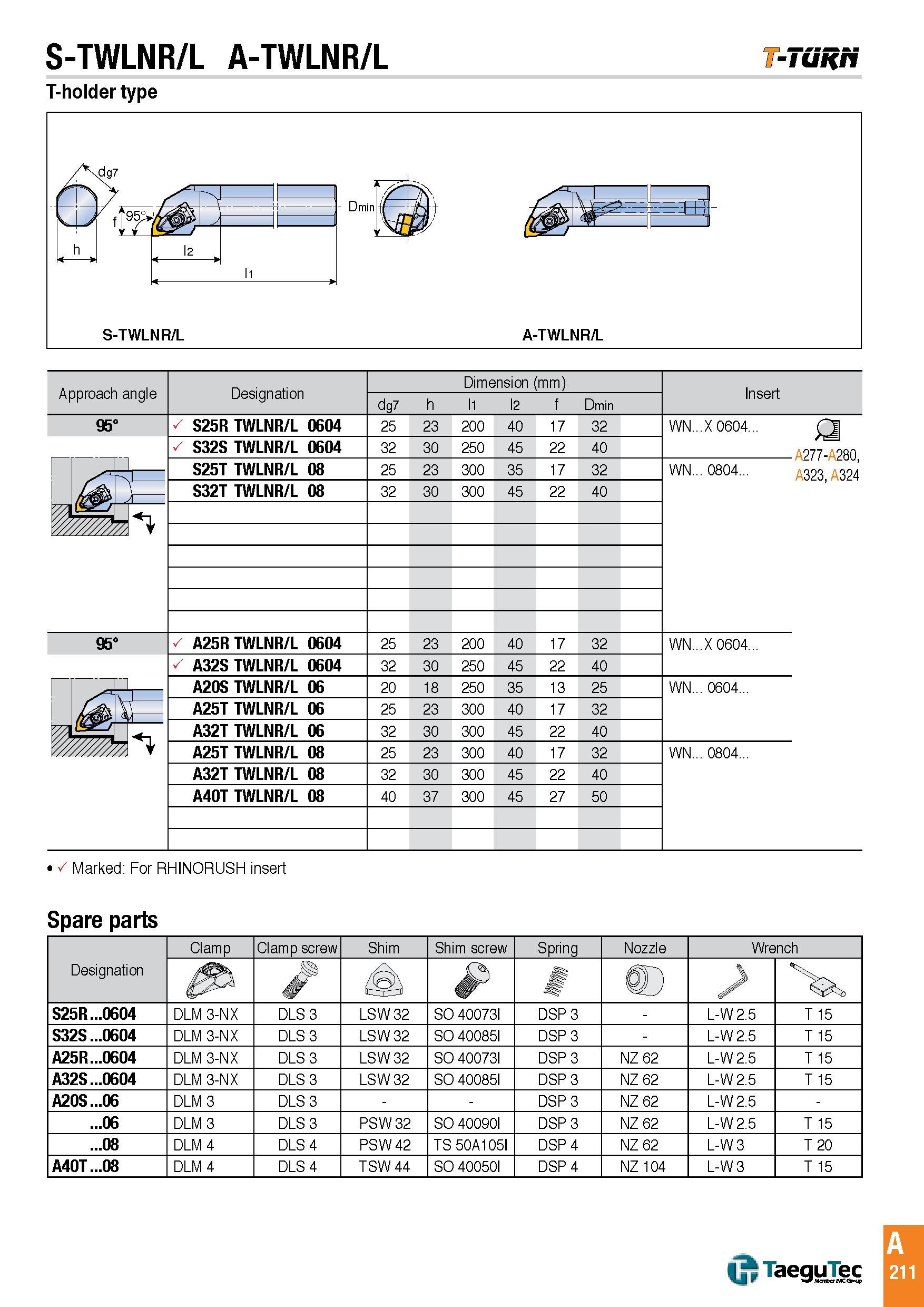

S-TWLNR/L A-TWLNR/L -Tunri T-holder type Approach angle Designation Dimension (mm) Insert dg7 h l1 l2 f Dmin 95° S25R TWLNR/L 0604 25 23 200 40 17 32 WN...X 0604 A277- 280 S32S TWLNR/L 0604 32 30 250 45 22 40 P - S25T TWLNR/L 08 25 23 300 35 17 32 WN .. 0804 .. 323, 324 \ S32T TWLNR/L 08 32 30 300 45 22 40 /////// 95° A25R TWLNR/L 0604 25 23 200 40 17 32 WN...X 0604 i A32S TWLNR/L 0604 32 30 250 45 22 40 A20S TWLNR/L 06 20 18 250 35 13 25 WN 0604 A25T TWLNR/L 06 25 23 300 40 17 32 ‘1 A32T TWLNR/L 06 32 30 300 45 22 40 yy A25T TWLNR/L 08 25 23 300 40 17 32 WN 0804 A32T TWLNR/L 08 32 30 300 45 22 40 A40T TWLNR/L 08 40 37 300 45 27 50 / Marked For RHINORUSH insert Spare parts Designation Clamp Clamp screw Shim Shim screw Spring Nozzle Wrench ¥ f ID S25R ...0604 DLM 3-NX DLS 3 LSW 32 SO 40073I DSP 3 - L-W 2.5 T 15 S32S ...0604 DLM 3-NX DLS 3 LSW 32 SO 40085I DSP 3 - L-W 2.5 T 15 A25R...0604 DLM 3-NX DLS 3 LSW 32 SO 40073I DSP 3 NZ 62 L-W 2.5 T 15 A32S ...0604 DLM 3-NX DLS 3 LSW 32 SO 40085I DSP 3 NZ 62 L-W 2.5 T 15 A20S ...06 DLM 3 DLS 3 - - DSP 3 NZ 62 L-W 2.5 - ...06 DLM 3 DLS 3 PSW 32 SO 40090I DSP 3 NZ 62 L-W 2.5 T 15 ...08 DLM 4 DLS 4 PSW 42 TS 50A105I DSP 4 NZ 62 L-W 3 T 20 A40T ...08 DLM 4 DLS 4 TSW 44 SO 40050I DSP 4 NZ 104 L-W 3 T 15 C TaeguTec A 211
