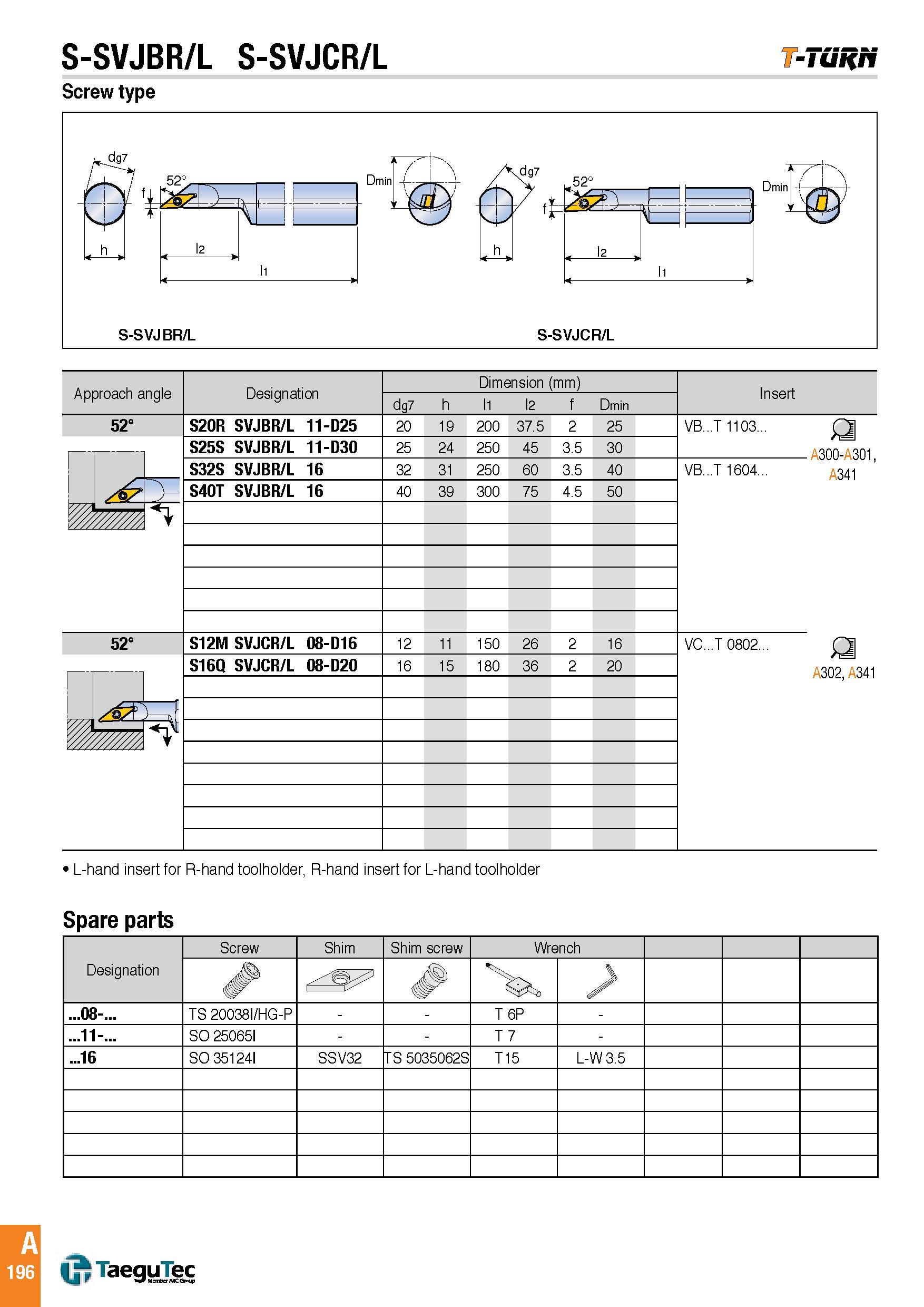

S-SVJBR/L S-SVJCR/L -Tuh/t Screw type Approach angle Designation Dimension (mm) Insert dg7 h l1 l2 f Dmin 52° S20R SVJBR/L 11-D25 20 19 200 37.5 2 25 VB...T 1103 i 3nn- 301 S25S SVJBR/L 11-D30 25 24 250 45 3.5 30 S32S SVJBR/L 16 32 31 250 60 3.5 40 VB...T 1604 A341 V S40T SVJBR/L 16 40 39 300 75 4.5 50 1 52° S12M SVJCR/L 08-D16 12 11 150 26 2 16 VC...T 0802 A302, A341 S16Q SVJCR/L 08-D20 16 15 180 36 2 20 stt') V L-hand insert for R-hand toolholder, R-hand insert for L-hand toolholder Spare parts A 196 TaeguTec
