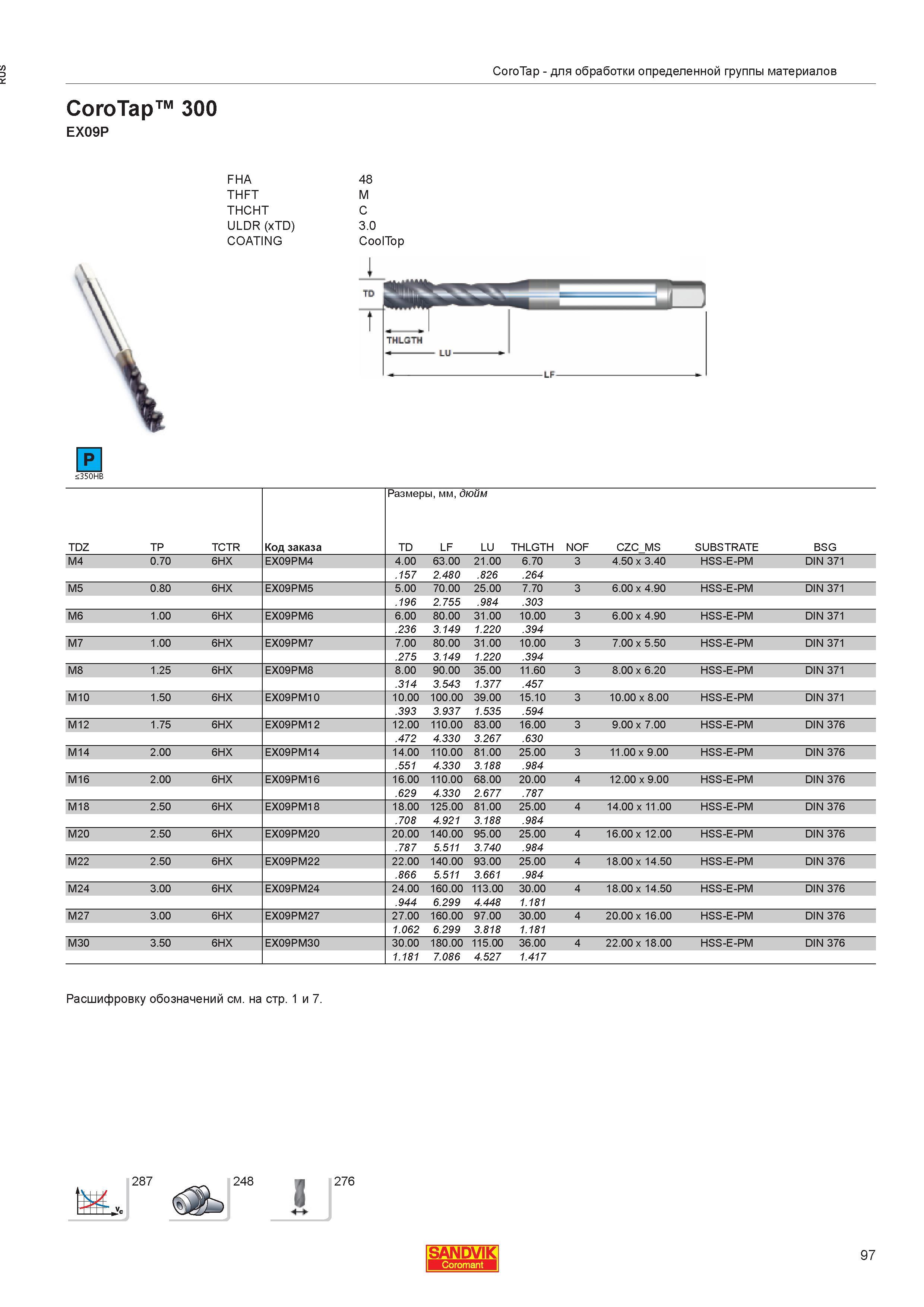

CoroTap для обработки определенной группы материалов CoroTap 300 EX09P FHA THFT THCHT ULDR (xTD) COATING 48 M C 3.0 CoolTop Tt О" М THLGTH LU LF TDZ TP TCTR Код заказа Размеры мм дюйм TD LF LU THLGTH NOF CZCMS SUBSTRATE BSG M4 0.70 6HX EX09PM4 4.00 63.00 21.00 6.70 3 4.50 x 3.40 HSS-E-PM DIN 371 .157 2.480 .826 .264 M5 0.80 6HX EX09PM5 5.00 70.00 25.00 7.70 3 6.00 x 4.90 HSS-E-PM DIN 371 .196 2.755 .984 .303 M6 1.00 6HX EX09PM6 6.00 80.00 31.00 10.00 3 6.00 x 4.90 HSS-E-PM DIN 371 .236 3.149 1.220 .394 M7 1.00 6HX EX09PM7 7.00 80.00 31.00 10.00 3 7.00 x 5.50 HSS-E-PM DIN 371 .275 3.149 1.220 .394 M8 1.25 6HX EX09PM8 8.00 90.00 35.00 11.60 3 8.00 x 6.20 HSS-E-PM DIN 371 .314 3.543 1.377 .457 M10 1.50 6HX EX09PM10 10.00 100.00 39.00 15.10 3 10.00 x 8.00 HSS-E-PM DIN 371 .393 3.937 1.535 .594 M12 1.75 6HX EX09PM12 12.00 110.00 83.00 16.00 3 9.00 x 7.00 HSS-E-PM DIN 376 .472 4.330 3.267 .630 M14 2.00 6HX EX09PM14 14.00 110.00 81.00 25.00 3 11.00 x 9.00 HSS-E-PM DIN 376 .551 4.330 3.188 .984 M16 2.00 6HX EX09PM16 16.00 110.00 68.00 20.00 4 12.00 x 9.00 HSS-E-PM DIN 376 .629 4.330 2.677 .787 M18 2.50 6HX EX09PM18 18.00 125.00 81.00 25.00 4 14.00 x 11.00 HSS-E-PM DIN 376 .708 4.921 3.188 .984 M20 2.50 6HX EX09PM20 20.00 140.00 95.00 25.00 4 16.00 x 12.00 HSS-E-PM DIN 376 .787 5.511 3.740 .984 M22 2.50 6HX EX09PM22 22.00 140.00 93.00 25.00 4 18.00 x 14.50 HSS-E-PM DIN 376 .866 5.511 3.661 .984 M24 3.00 6HX EX09PM24 24.00 160.00 113.00 30.00 4 18.00 x 14.50 HSS-E-PM DIN 376 .944 6.299 4.448 1.181 M27 3.00 6HX EX09PM27 27.00 160.00 97.00 30.00 4 20.00 x 16.00 HSS-E-PM DIN 376 1.062 6.299 3.818 1.181 M30 3.50 6HX EX09PM30 30.00 180.00 115.00 36.00 4 22.00 x 18.00 HSS-E-PM DIN 376 1.181 7.086 4.527 1.417 Расшифровку обозначений см. на стр. 1 и 7. 287 248 276 SANDVIK 97 350HB
