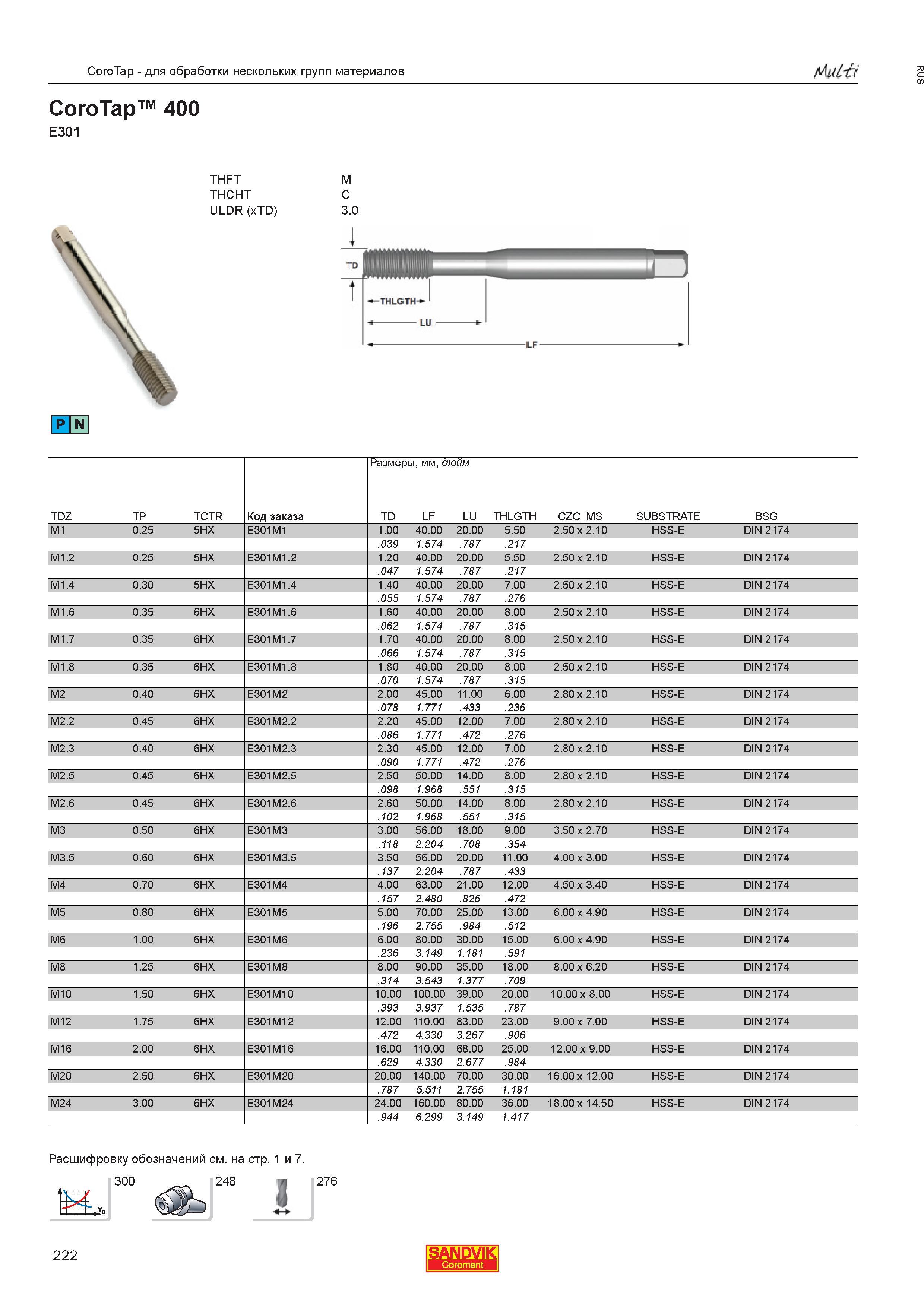

224 Каталог SANDVIK COROMANT 2013 Метчики и оснастка для резьбонарезания Стр.222

Каталог SANDVIK COROMANT 2013 Метчики Стр. 222 0224 Lab2u

CoroTap для обработки нескольких групп материалов CoroTap 400 E301 THFT M THCHT C ULDR (xTD) 3.0 LEE Размеры мм дюйм TDZ TP TCTR Код заказа TD LF LU THLGTH CZCMS SUBSTRATE BSG M1 0.25 5HX E301M1 1.00 40.00 20.00 5.50 2.50 x 2.10 HSS-E DIN 2174 .039 1.574 .787 .217 M1.2 0.25 5HX E301M1.2 1.20 40.00 20.00 5.50 2.50 x 2.10 HSS-E DIN 2174 .047 1.574 .787 .217 M1.4 0.30 5HX E301M1.4 1.40 40.00 20.00 7.00 2.50 x 2.10 HSS-E DIN 2174 .055 1.574 .787 .276 M1.6 0.35 6HX E301M1.6 1.60 40.00 20.00 8.00 2.50 x 2.10 HSS-E DIN 2174 .062 1.574 .787 .315 M1.7 0.35 6HX E301M1.7 1.70 40.00 20.00 8.00 2.50 x 2.10 HSS-E DIN 2174 .066 1.574 .787 .315 M1.8 0.35 6HX E301M1.8 1.80 40.00 20.00 8.00 2.50 x 2.10 HSS-E DIN 2174 .070 1.574 .787 .315 M2 0.40 6HX E301M2 2.00 45.00 11.00 6.00 2.80 x 2.10 HSS-E DIN 2174 .078 1.771 .433 .236 M2.2 0.45 6HX E301M2.2 2.20 45.00 12.00 7.00 2.80 x 2.10 HSS-E DIN 2174 .086 1.771 .472 .276 M2.3 0.40 6HX E301M2.3 2.30 45.00 12.00 7.00 2.80 x 2.10 HSS-E DIN 2174 .090 1.771 .472 .276 M2.5 0.45 6HX E301M2.5 2.50 50.00 14.00 8.00 2.80 x 2.10 HSS-E DIN 2174 .098 1.968 .551 .315 M2.6 0.45 6HX E301M2.6 2.60 50.00 14.00 8.00 2.80 x 2.10 HSS-E DIN 2174 .102 1.968 .551 .315 M3 0.50 6HX E301M3 3.00 56.00 18.00 9.00 3.50 x 2.70 HSS-E DIN 2174 .118 2.204 .708 .354 M3.5 0.60 6HX E301M3.5 3.50 56.00 20.00 11.00 4.00 x 3.00 HSS-E DIN 2174 .137 2.204 .787 .433 M4 0.70 6HX E301M4 4.00 63.00 21.00 12.00 4.50 x 3.40 HSS-E DIN 2174 .157 2.480 .826 .472 M5 0.80 6HX E301M5 5.00 70.00 25.00 13.00 6.00 x 4.90 HSS-E DIN 2174 .196 2.755 .984 .512 M6 1.00 6HX E301M6 6.00 80.00 30.00 15.00 6.00 x 4.90 HSS-E DIN 2174 .236 3.149 1.181 .591 M8 1.25 6HX E301M8 8.00 90.00 35.00 18.00 8.00 x 6.20 HSS-E DIN 2174 .314 3.543 1.377 .709 M10 1.50 6HX E301M10 10.00 100.00 39.00 20.00 10.00 x 8.00 HSS-E DIN 2174 .393 3.937 1.535 .787 M12 1.75 6HX E301M12 12.00 110.00 83.00 23.00 9.00 x 7.00 HSS-E DIN 2174 .472 4.330 3.267 .906 M16 2.00 6HX E301M16 16.00 110.00 68.00 25.00 12.00 x 9.00 HSS-E DIN 2174 .629 4.330 2.677 .984 M20 2.50 6HX E301M20 20.00 140.00 70.00 30.00 16.00 x 12.00 HSS-E DIN 2174 .787 5.511 2.755 1.181 M24 3.00 6HX E301M24 24.00 160.00 80.00 36.00 18.00 x 14.50 HSS-E DIN 2174 .944 6.299 3.149 1.417 Расшифровку обозначений см. на стр. 1 и 7. 222 SANDVIK Coromant
