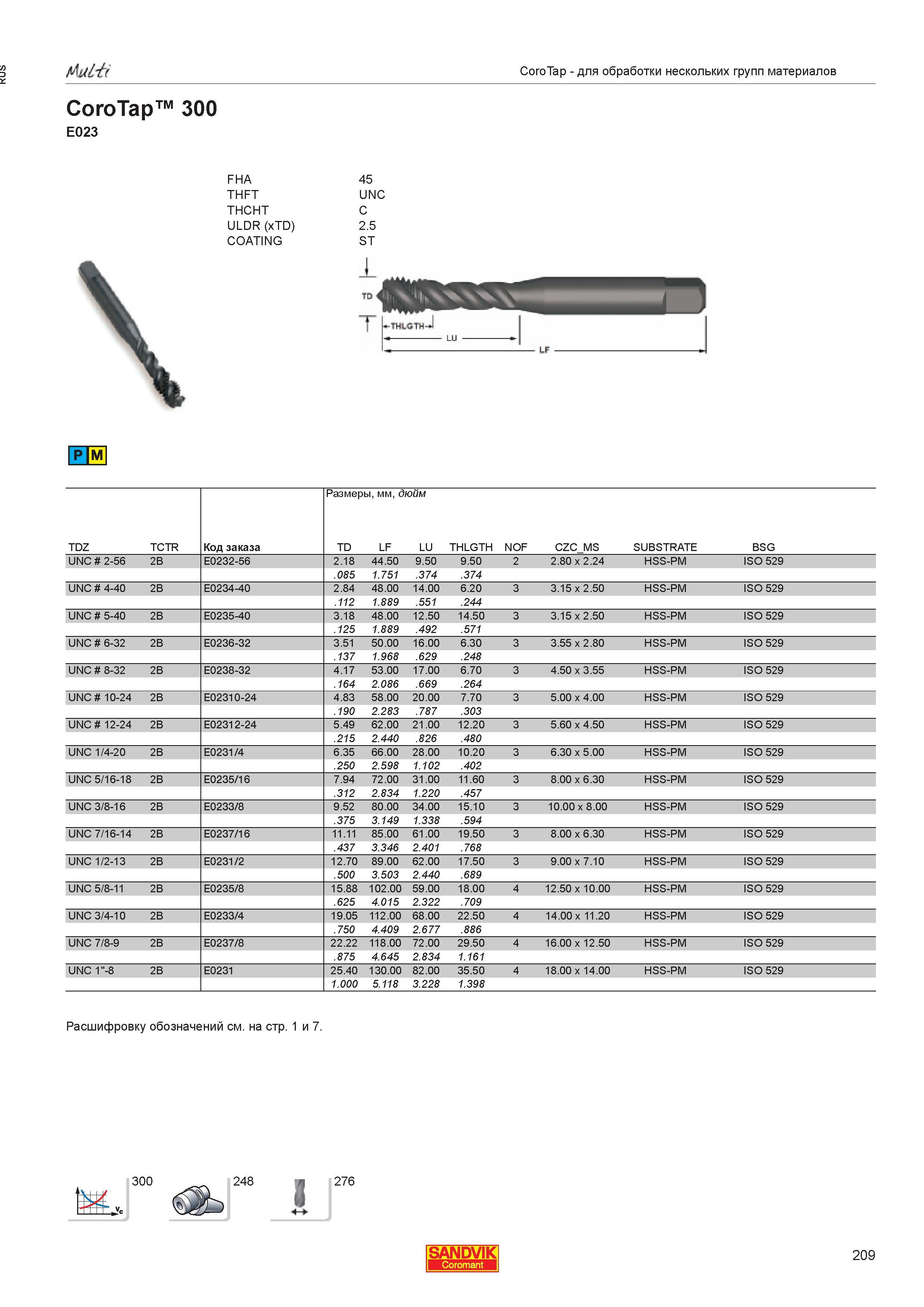

211 Каталог SANDVIK COROMANT 2013 Метчики и оснастка для резьбонарезания Стр.209

Каталог SANDVIK COROMANT 2013 Метчики Стр. 209 0211 Lab2u

CoroTap для обработки нескольких групп материалов CoroTap 300 E023 FHA THFT THCHT ULDR (xTD) COATING TDZ TCTR Код заказа Размеры мм дюйм TD LF LU THLGTH NOF CZCMS SUBSTRATE BSG UNC 2-56 2B E0232-56 2.18 44.50 9.50 9.50 2 2.80 x 2.24 HSS-PM ISO 529 .085 1.751 .374 .374 UNC 4-40 2B E0234-40 2.84 48.00 14.00 6.20 3 3.15 x 2.50 HSS-PM ISO 529 .112 1.889 .551 .244 UNC 5-40 2B E0235-40 3.18 48.00 12.50 14.50 3 3.15 x 2.50 HSS-PM ISO 529 .125 1.889 .492 .571 UNC 6-32 2B E0236-32 3.51 50.00 16.00 6.30 3 3.55 x 2.80 HSS-PM ISO 529 .137 1.968 .629 .248 UNC 8-32 2B E0238-32 4.17 53.00 17.00 6.70 3 4.50 x 3.55 HSS-PM ISO 529 .164 2.086 .669 .264 UNC 10-24 2B E02310-24 4.83 58.00 20.00 7.70 3 5.00 x 4.00 HSS-PM ISO 529 .190 2.283 .787 .303 UNC 12-24 2B E02312-24 5.49 62.00 21.00 12.20 3 5.60 x 4.50 HSS-PM ISO 529 .215 2.440 .826 .480 UNC 1 4-20 2B E0231 4 6.35 66.00 28.00 10.20 3 6.30 x 5.00 HSS-PM ISO 529 .250 2.598 1.102 .402 UNC 5 16-18 2B E0235 16 7.94 72.00 31.00 11.60 3 8.00 x 6.30 HSS-PM ISO 529 .312 2.834 1.220 .457 UNC 3 8-16 2B E0233 8 9.52 80.00 34.00 15.10 3 10.00 x 8.00 HSS-PM ISO 529 .375 3.149 1.338 .594 UNC 7 16-14 2B E0237 16 11.11 85.00 61.00 19.50 3 8.00 x 6.30 HSS-PM ISO 529 .437 3.346 2.401 .768 UNC 1 2-13 2B E0231 2 12.70 89.00 62.00 17.50 3 9.00 x 7.10 HSS-PM ISO 529 .500 3.503 2.440 .689 UNC 5 8-11 2B E0235 8 15.88 102.00 59.00 18.00 4 12.50 x 10.00 HSS-PM ISO 529 .625 4.015 2.322 .709 UNC 3 4-10 2B E0233 4 19.05 112.00 68.00 22.50 4 14.00 x 11.20 HSS-PM ISO 529 .750 4.409 2.677 .886 UNC 7 8-9 2B E0237 8 22.22 118.00 72.00 29.50 4 16.00 x 12.50 HSS-PM ISO 529 .875 4.645 2.834 1.161 UNC 1"-8 2B E0231 25.40 130.00 82.00 35.50 4 18.00 x 14.00 HSS-PM ISO 529 1.000 5.118 3.228 1.398 Расшифровку обозначений см. на стр. 1 и 7. SANDVIK Coromant 209
