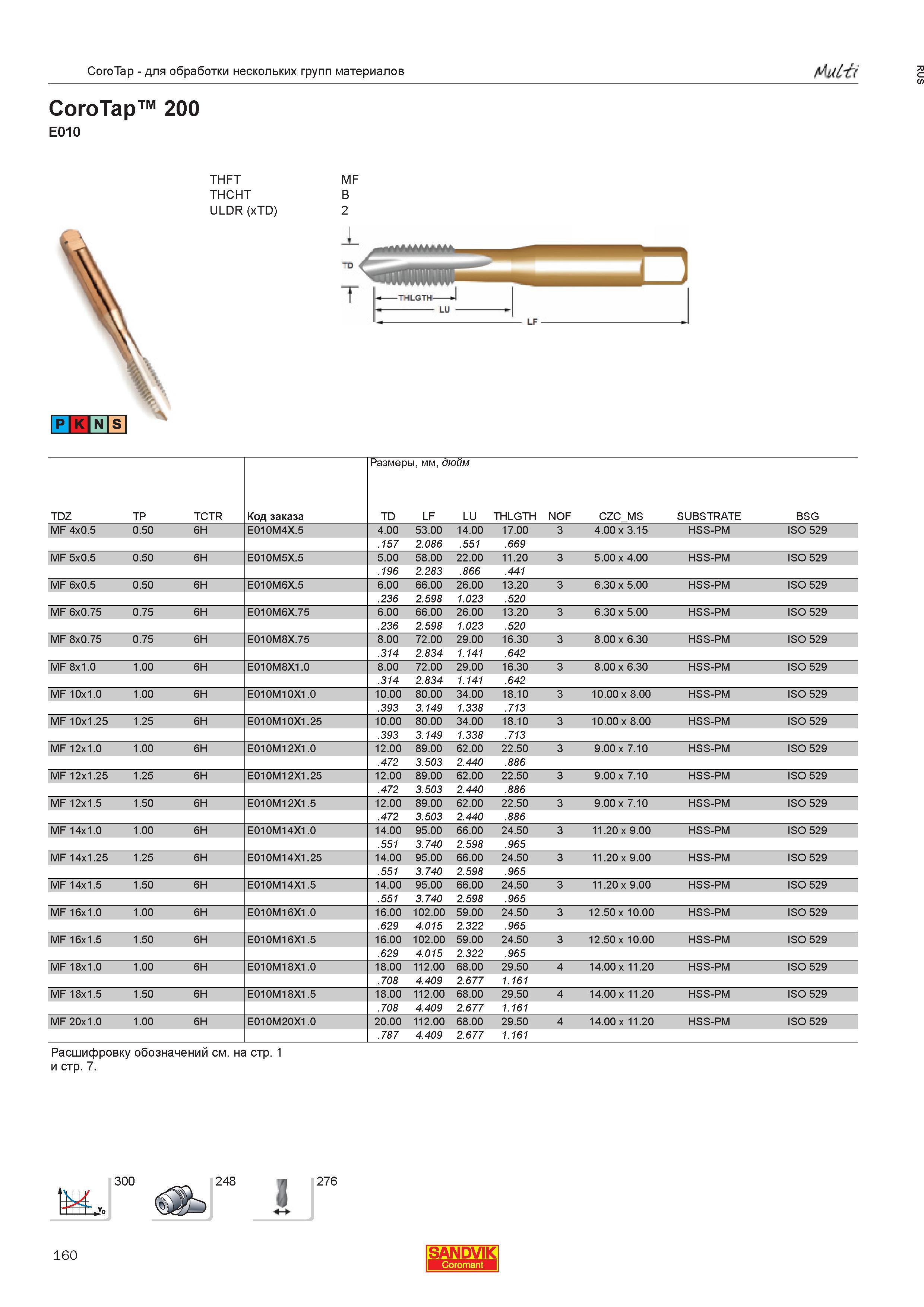

162 Каталог SANDVIK COROMANT 2013 Метчики и оснастка для резьбонарезания Стр.160

Каталог SANDVIK COROMANT 2013 Метчики Стр. 160 0162 Lab2u

CoroTap для обработки нескольких групп материалов Multi CoroTap 200 E010 THFT MF THCHT B ULDR (xTD) 2 Размеры мм дюйм TDZ TP TCTR Код заказа TD LF LU THLGTH NOF CZCMS SUBSTRATE BSG MF 4x0.5 0.50 6H E010M4X.5 4.00 53.00 14.00 17.00 3 4.00 x 3.15 HSS-PM ISO 529 .157 2.086 .551 .669 MF 5x0.5 0.50 6H E010M5X.5 5.00 58.00 22.00 11.20 3 5.00 x 4.00 HSS-PM ISO 529 .196 2.283 .866 .441 MF 6x0.5 0.50 6H E010M6X.5 6.00 66.00 26.00 13.20 3 6.30 x 5.00 HSS-PM ISO 529 .236 2.598 1.023 .520 MF 6x0.75 0.75 6H E010M6X.75 6.00 66.00 26.00 13.20 3 6.30 x 5.00 HSS-PM ISO 529 .236 2.598 1.023 .520 MF 8x0.75 0.75 6H E010M8X.75 8.00 72.00 29.00 16.30 3 8.00 x 6.30 HSS-PM ISO 529 .314 2.834 1.141 .642 MF 8x1.0 1.00 6H E010M8X1.0 8.00 72.00 29.00 16.30 3 8.00 x 6.30 HSS-PM ISO 529 .314 2.834 1.141 .642 MF 10x1.0 1.00 6H E010M10X1.0 10.00 80.00 34.00 18.10 3 10.00 x 8.00 HSS-PM ISO 529 .393 3.149 1.338 .713 MF 10x1.25 1.25 6H E010M10X1.25 10.00 80.00 34.00 18.10 3 10.00 x 8.00 HSS-PM ISO 529 .393 3.149 1.338 .713 MF 12x1.0 1.00 6H E010M12X1.0 12.00 89.00 62.00 22.50 3 9.00 x 7.10 HSS-PM ISO 529 .472 3.503 2.440 .886 MF 12x1.25 1.25 6H E010M12X1.25 12.00 89.00 62.00 22.50 3 9.00 x 7.10 HSS-PM ISO 529 .472 3.503 2.440 .886 MF 12x1.5 1.50 6H E010M12X1.5 12.00 89.00 62.00 22.50 3 9.00 x 7.10 HSS-PM ISO 529 .472 3.503 2.440 .886 MF 14x1.0 1.00 6H E010M14X1.0 14.00 95.00 66.00 24.50 3 11.20 x 9.00 HSS-PM ISO 529 .551 3.740 2.598 .965 MF 14x1.25 1.25 6H E010M14X1.25 14.00 95.00 66.00 24.50 3 11.20 x 9.00 HSS-PM ISO 529 .551 3.740 2.598 .965 MF 14x1.5 1.50 6H E010M14X1.5 14.00 95.00 66.00 24.50 3 11.20 x 9.00 HSS-PM ISO 529 .551 3.740 2.598 .965 MF 16x1.0 1.00 6H E010M16X1.0 16.00 102.00 59.00 24.50 3 12.50 x 10.00 HSS-PM ISO 529 .629 4.015 2.322 .965 MF 16x1.5 1.50 6H E010M16X1.5 16.00 102.00 59.00 24.50 3 12.50 x 10.00 HSS-PM ISO 529 .629 4.015 2.322 .965 MF 18x1.0 1.00 6H E010M18X1.0 18.00 112.00 68.00 29.50 4 14.00 x 11.20 HSS-PM ISO 529 .708 4.409 2.677 1.161 MF 18x1.5 1.50 6H E010M18X1.5 18.00 112.00 68.00 29.50 4 14.00 x 11.20 HSS-PM ISO 529 .708 4.409 2.677 1.161 MF 20x1.0 1.00 6H E010M20X1.0 20.00 112.00 68.00 29.50 4 14.00 x 11.20 HSS-PM ISO 529 .787 4.409 2.677 1.161 Расшифровку обозначений см. на стр. 1 и стр. 7. 160 SANDVIK Coromant
