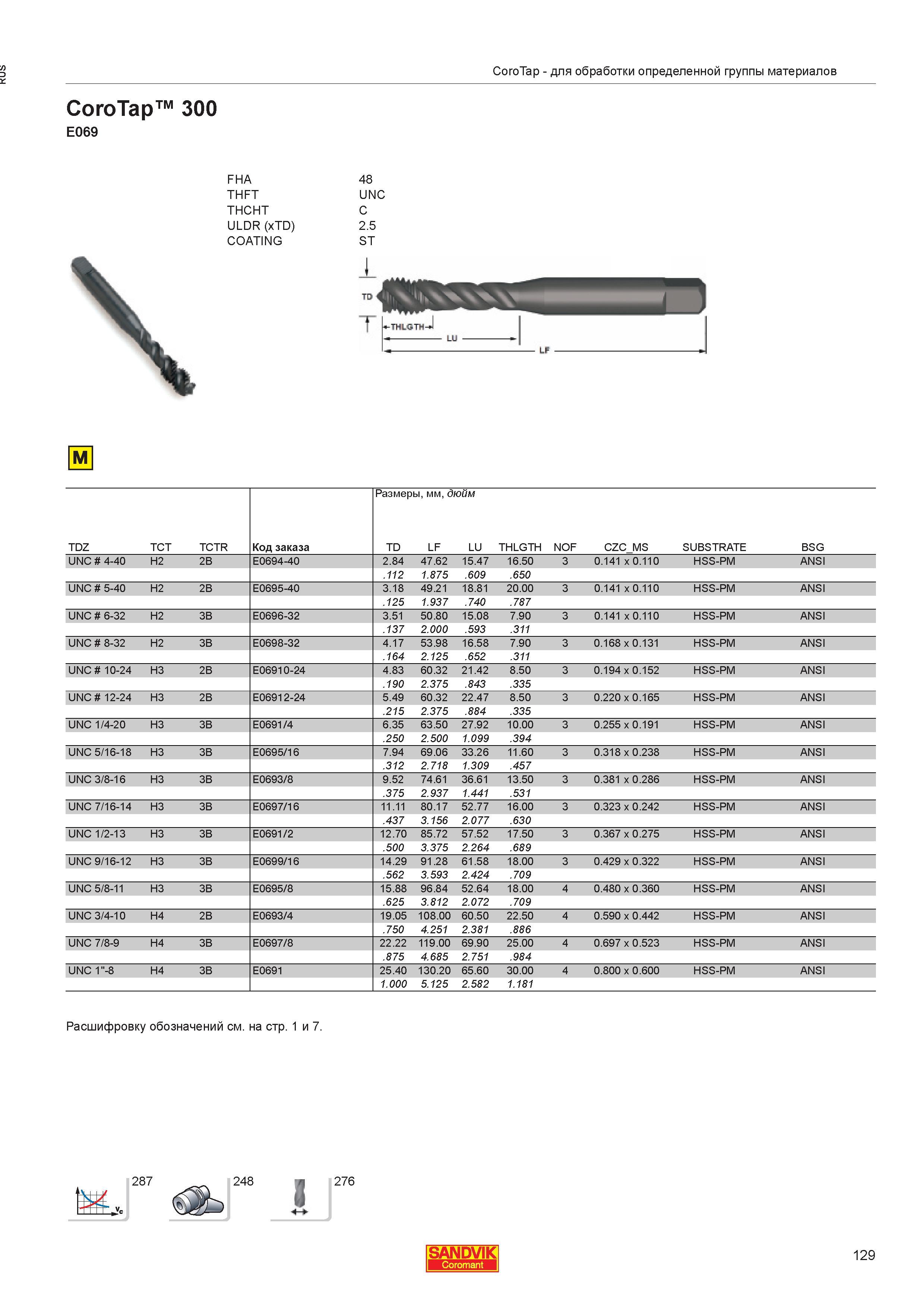

CoroTap для обработки определенной группы материалов CoroTap 300 E069 FHA THFT THCHT ULDR (xTD) COATING 48 UNC C 2.5 ST TDZ TCT TCTR Код заказа Размеры мм дюйм TD LF LU THLGTH NOF CZCMS SUBSTRATE BSG UNC 4-40 H2 2B E0694-40 2.84 47.62 15.47 16.50 3 0.141 x 0.110 HSS-PM ANSI .112 1.875 .609 .650 UNC 5-40 H2 2B E0695-40 3.18 49.21 18.81 20.00 3 0.141 x 0.110 HSS-PM ANSI .125 1.937 .740 .787 UNC 6-32 H2 3B E0696-32 3.51 50.80 15.08 7.90 3 0.141 x 0.110 HSS-PM ANSI .137 2.000 .593 .311 UNC 8-32 H2 3B E0698-32 4.17 53.98 16.58 7.90 3 0.168 x 0.131 HSS-PM ANSI .164 2.125 .652 .311 UNC 10-24 H3 2B E06910-24 4.83 60.32 21.42 8.50 3 0.194 x 0.152 HSS-PM ANSI .190 2.375 .843 .335 UNC 12-24 H3 2B E06912-24 5.49 60.32 22.47 8.50 3 0.220 x 0.165 HSS-PM ANSI .215 2.375 .884 .335 UNC 1 4-20 H3 3B E0691 4 6.35 63.50 27.92 10.00 3 0.255 x 0.191 HSS-PM ANSI .250 2.500 1.099 .394 UNC 5 16-18 H3 3B E0695 16 7.94 69.06 33.26 11.60 3 0.318 x 0.238 HSS-PM ANSI .312 2.718 1.309 .457 UNC 3 8-16 H3 3B E0693 8 9.52 74.61 36.61 13.50 3 0.381 x 0.286 HSS-PM ANSI .375 2.937 1.441 .531 UNC 7 16-14 H3 3B E0697 16 11.11 80.17 52.77 16.00 3 0.323 x 0.242 HSS-PM ANSI .437 3.156 2.077 .630 UNC 1 2-13 H3 3B E0691 2 12.70 85.72 57.52 17.50 3 0.367 x 0.275 HSS-PM ANSI .500 3.375 2.264 .689 UNC 9 16-12 H3 3B E0699 16 14.29 91.28 61.58 18.00 3 0.429 x 0.322 HSS-PM ANSI .562 3.593 2.424 .709 UNC 5 8-11 H3 3B E0695 8 15.88 96.84 52.64 18.00 4 0.480 x 0.360 HSS-PM ANSI .625 3.812 2.072 .709 UNC 3 4-10 H4 2B E0693 4 19.05 108.00 60.50 22.50 4 0.590 x 0.442 HSS-PM ANSI .750 4.251 2.381 .886 UNC 7 8-9 H4 3B E0697 8 22.22 119.00 69.90 25.00 4 0.697 x 0.523 HSS-PM ANSI .875 4.685 2.751 .984 UNC 1"-8 H4 3B E0691 25.40 130.20 65.60 30.00 4 0.800 x 0.600 HSS-PM ANSI 1.000 5.125 2.582 1.181 Расшифровку обозначений см. на стр. 1 и 7. SANDVIK Coromant 129
