1113 Каталог WIDIA 2011 Инструментальная оснастка для металлорежущих станков Стр.K77

Каталог WIDIA 2011 Инструментальная оснастка Стр. K77 1113 ENG Lab2u

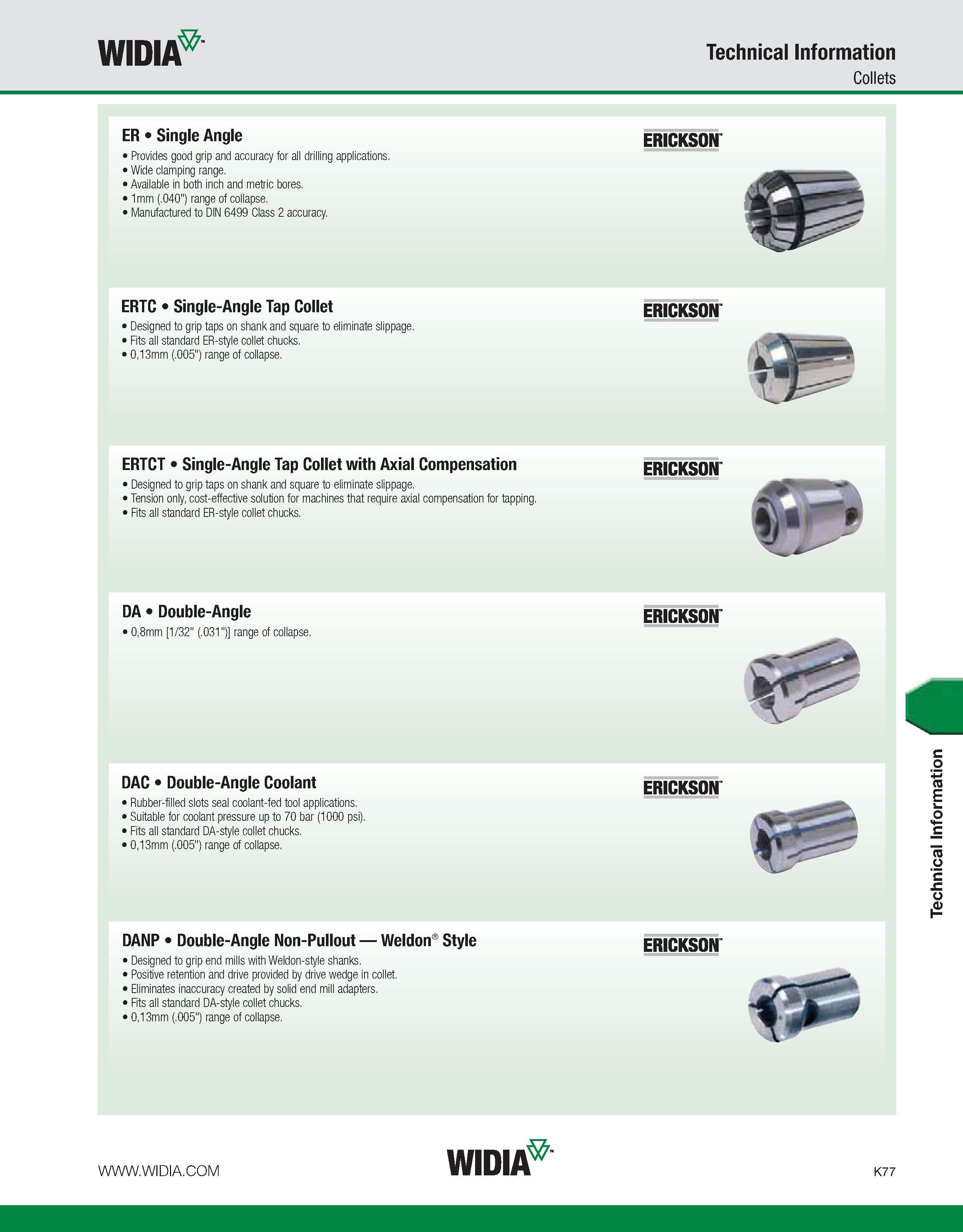

WIDIA Technical Information Collets ER Single Angle Provides good grip and accuracy for all drilling applications. Wide clamping range. Available in both inch and metric bores. 1mm (.040") range of collapse. Manufactured to DIN 6499 Class 2 accuracy. ERICKSON ERTC Single-Angle Tap Collet Designed to grip taps on shank and square to eliminate slippage. Fits all standard ER-style collet chucks. 0,13mm (.005") range of collapse. ERICKSON ERTCT Single-Angle Tap Collet with Axial Compensation Designed to grip taps on shank and square to eliminate slippage. Tension only, cost-effective solution for machines that require axial compensation for tapping. Fits all standard ER-style collet chucks. ERICKSON DA Double-Angle 0,8mm 1/32" (.031") range of collapse. ERICKSON DAC Double-Angle Coolant Rubber-filled slots seal coolant-fed tool applications. Suitable for coolant pressure up to 70 bar (1000 psi). Fits all standard DA-style collet chucks. 0,13mm (.005") range of collapse. ERICKSON DANP Double-Angle Non-Pullout Weldon Style Designed to grip end mills with Weldon-style shanks. Positive retention and drive provided by drive wedge in collet. Eliminates inaccuracy created by solid end mill adapters. Fits all standard DA-style collet chucks. 0,13mm (.005") range of collapse. WIDIA K77 Technical Information
