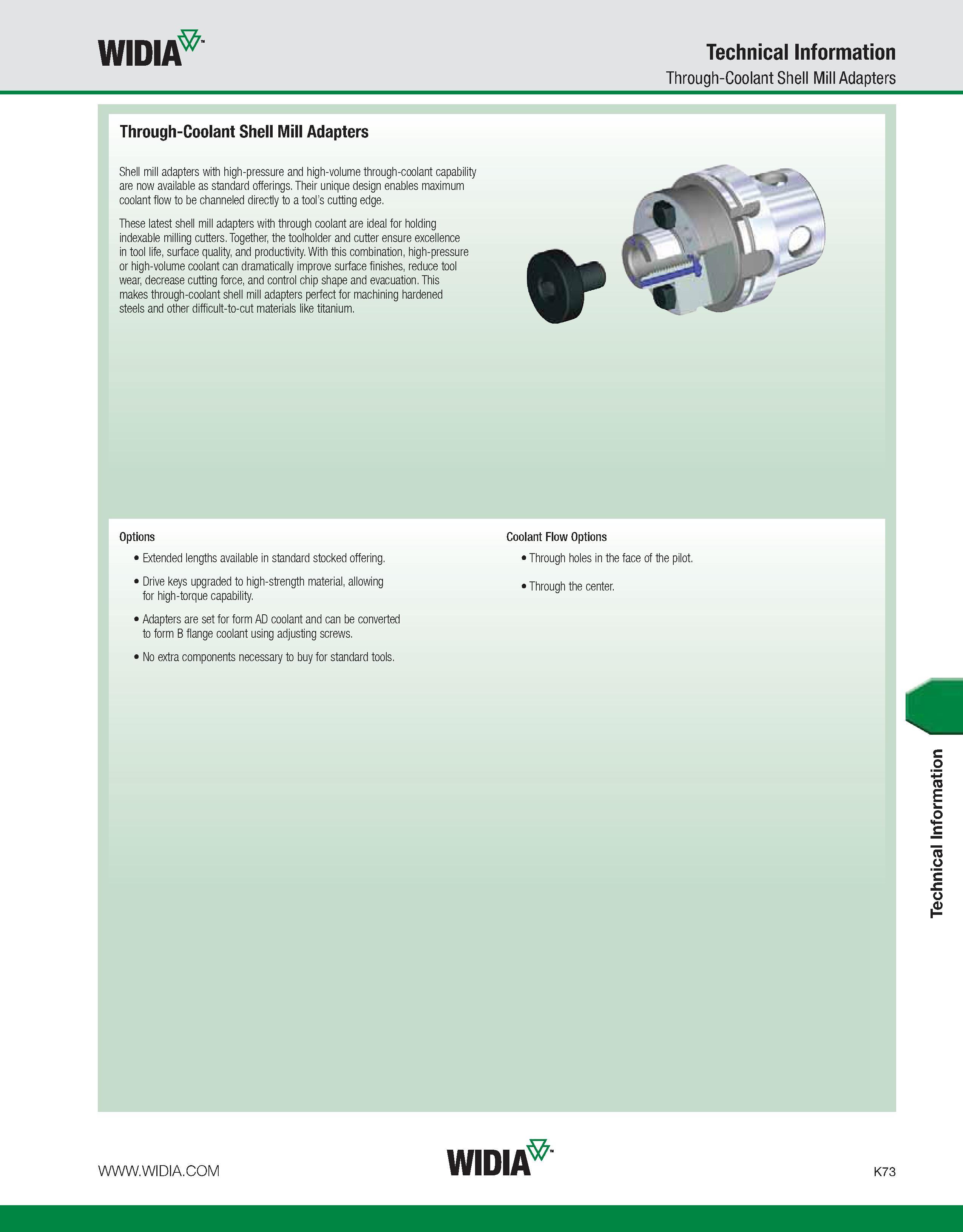

WIDIA Technical Information Through-Coolant Shell Mill Adapters Through-Coolant Shell Mill Adapters Shell mill adapters with high-pressure and high-volume through-coolant capability are now available as standard offerings. Their unique design enables maximum coolant flow to be channeled directly to a tool’s cutting edge. These latest shell mill adapters with through coolant are ideal for holding indexable milling cutters. Together, the toolholder and cutter ensure excellence in tool life, surface quality, and productivity. With this combination, high-pressure or high-volume coolant can dramatically improve surface finishes, reduce tool wear, decrease cutting force, and control chip shape and evacuation. This makes through-coolant shell mill adapters perfect for machining hardened steels and other difficult-to-cut materials like titanium. Options Coolant Flow Options Extended lengths available in standard stocked offering. Through holes in the face of the pilot. Drive keys upgraded to high-strength material, allowing Through the center. for high-torque capability. Adapters are set for form AD coolant and can be converted to form B flange coolant using adjusting screws. No extra components necessary to buy for standard tools. WIDIA K73 Technical Information
