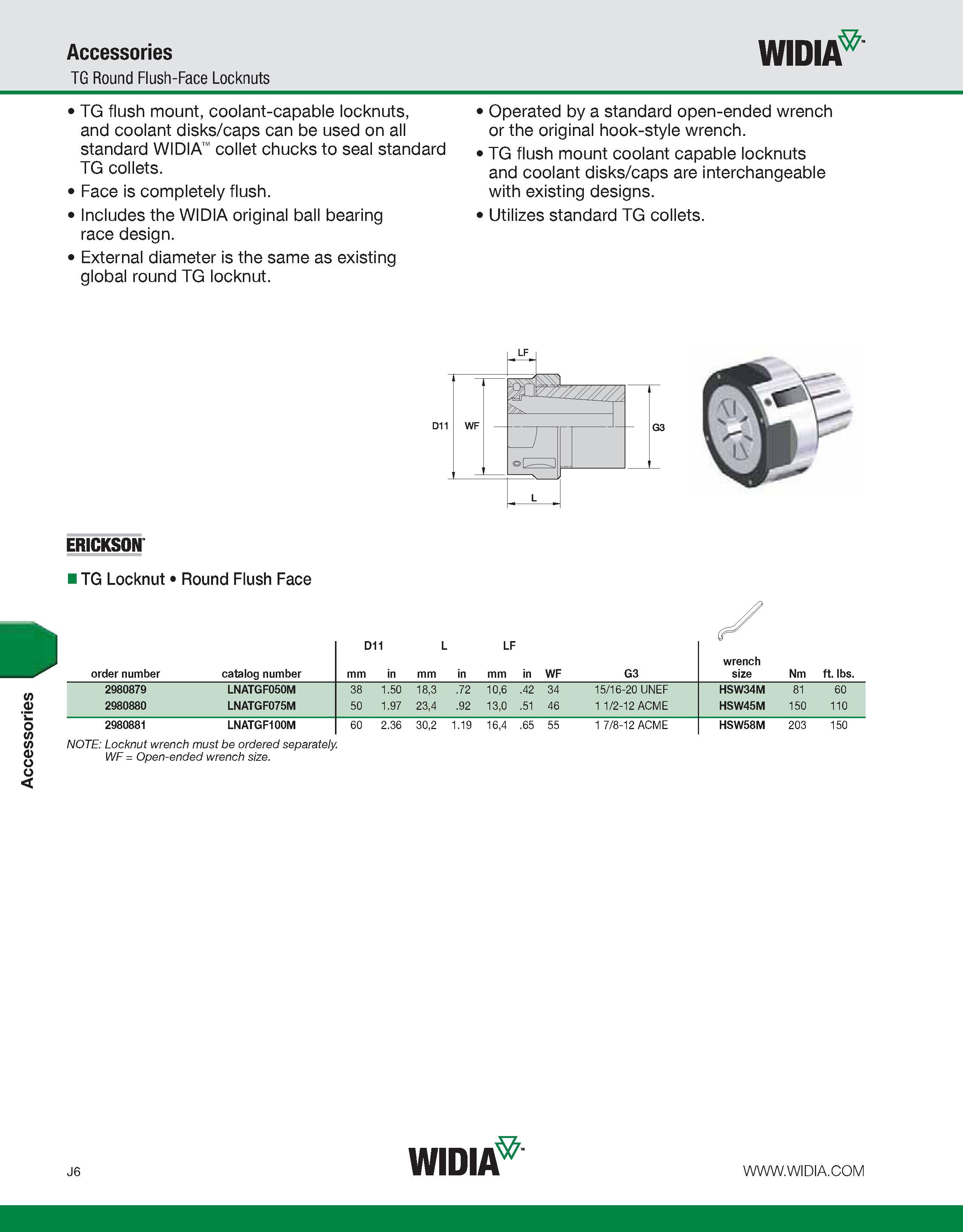

Accessories Accessories TG Round Flush-Face Locknuts WIDIA TG flush mount, coolant-capable locknuts, and coolant disks/caps can be used on all standard WIDIA collet chucks to seal standard TG collets. Face is completely flush. Includes the WIDIA original ball bearing race design. External diameter is the same as existing global round TG locknut. Operated by a standard open-ended wrench or the original hook-style wrench. TG flush mount coolant capable locknuts and coolant disks/caps are interchangeable with existing designs. Utilizes standard TG collets. ERICKSON TG Locknut Round Flush Face order number catalog number D11 mm in L mm in LF mm in WF G3 wrench size Nm ft. lbs. 2980879 LNATGF050M 38 1.50 18,3 .72 10,6 .42 34 15/16-20 UNEF HSW34M 81 60 2980880 LNATGF075M 50 1.97 23,4 .92 13,0 .51 46 1 1/2-12 ACME HSW45M 150 110 2980881 LNATGF100M 60 2.36 30,2 1.19 16,4 .65 55 1 7/8-12 ACME HSW58M 203 150 NOTE: Locknut wrench must be ordered separately. WF = Open-ended wrench size. J6 WIDIA
