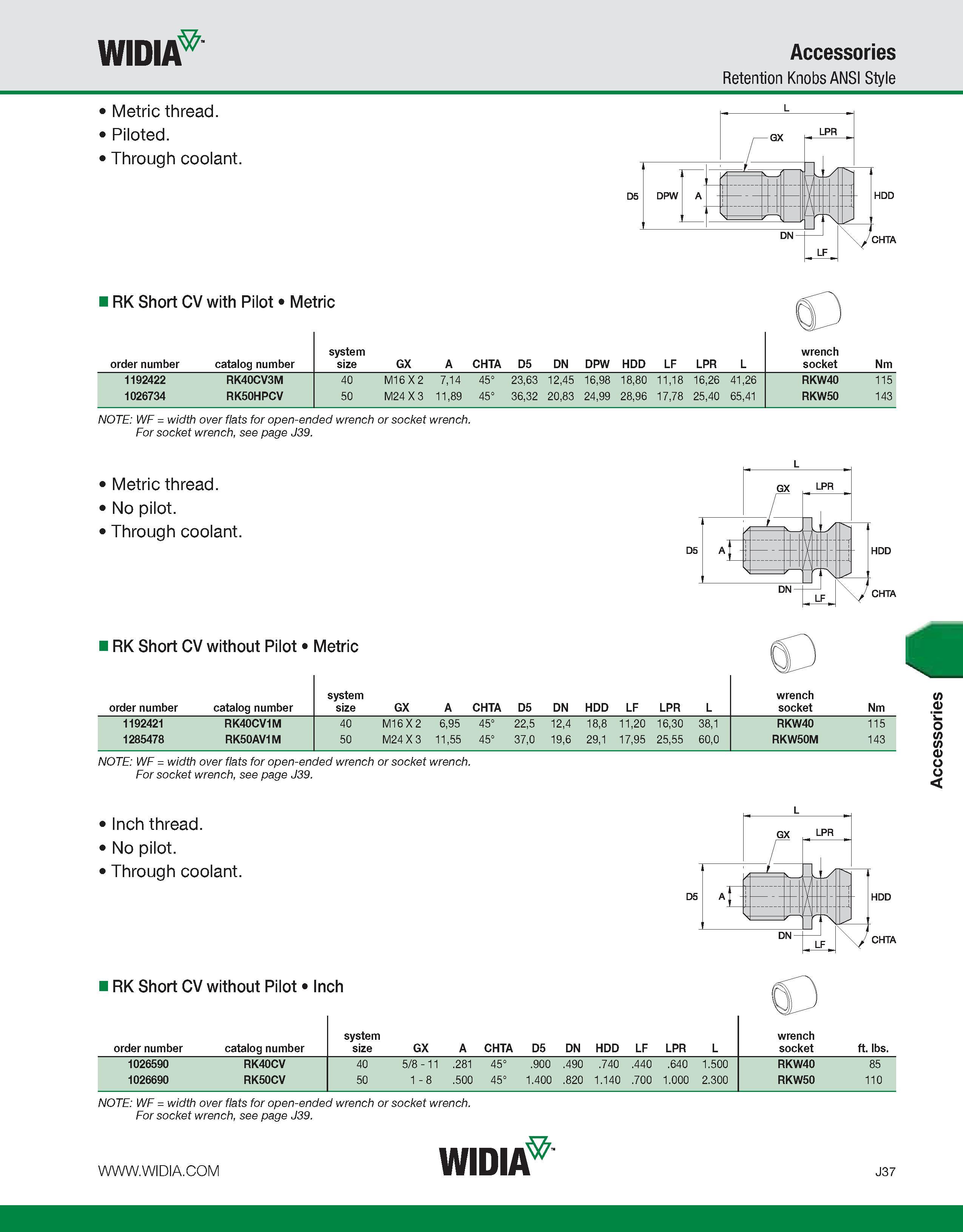

WIDIA Accessories Retention Knobs ANSI Style Metric thread. Piloted. Through coolant. i RK Short CV with Pilot Metric u order number catalog number system size GX A CHTA D5 DN DPW HDD LF LPR L wrench socket Nm 1192422 RK40CV3M 40 M16 X 2 7,14 45° 23,63 12,45 16,98 18,80 11,18 16,26 41,26 RKW40 115 1026734 RK50HPCV 50 M24 X 3 11,89 45° 36,32 20,83 24,99 28,96 17,78 25,40 65,41 RKW50 143 NOTE: WF = width over flats for open-ended wrench or socket wrench. For socket wrench, see page J39. Metric thread. No pilot. Through coolant. i RK Short CV without Pilot Metric 0 order number catalog number system size GX A CHTA D5 DN HDD LF LPR L wrench socket Nm 1192421 RK40CV1M 40 M16 X 2 6,95 45° 22,5 12,4 18,8 11,20 16,30 38,1 RKW40 115 1285478 RK50AV1M 50 M24 X 3 11,55 45° 37,0 19,6 29,1 17,95 25,55 60,0 RKW50M 143 NOTE: WF = width over flats for open-ended wrench or socket wrench. For socket wrench, see page J39. Inch thread. No pilot. Through coolant. i RK Short CV without Pilot Inch u order number catalog number system size GX A CHTA D5 DN HDD LF LPR L wrench socket ft. lbs. 1026590 RK40CV 40 5/8 - 11 .281 45° .900 .490 .740 .440 .640 1.500 RKW40 85 1026690 RK50CV 50 1 - 8 .500 45° 1.400 .820 1.140 .700 1.000 2.300 RKW50 110 NOTE: WF = width over flats for open-ended wrench or socket wrench. For socket wrench, see page J39. WIDIA J37 Accessories
