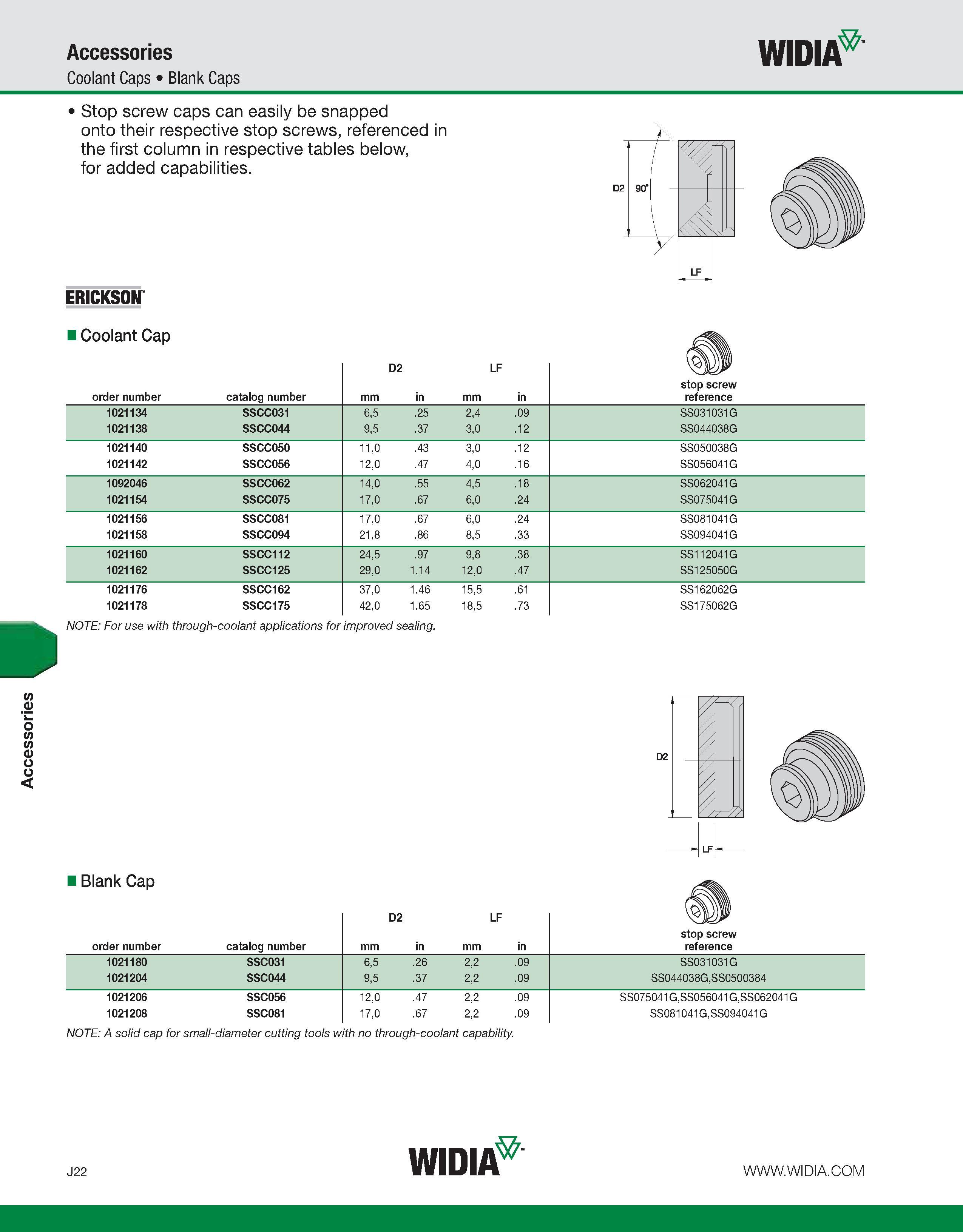

Accessories Accessories Coolant Caps Blank Caps WIDIA Stop screw caps can easily be snapped onto their respective stop screws, referenced in the first column in respective tables below, for added capabilities. ERICKSON i Coolant Cap NOTE: For use with through-coolant applications for improved sealing. order number catalog number mm D2 in LF mm in stop screw reference 1021134 SSCC031 6,5 .25 2,4 .09 SS031031G 1021138 SSCC044 9,5 .37 3,0 .12 SS044038G 1021140 SSCC050 11,0 .43 3,0 .12 SS050038G 1021142 SSCC056 12,0 .47 4,0 .16 SS056041G 1092046 SSCC062 14,0 .55 4,5 .18 SS062041G 1021154 SSCC075 17,0 .67 6,0 .24 SS075041G 1021156 SSCC081 17,0 .67 6,0 .24 SS081041G 1021158 SSCC094 21,8 .86 8,5 .33 SS094041G 1021160 SSCC112 24,5 .97 9,8 .38 SS112041G 1021162 SSCC125 29,0 1.14 12,0 .47 SS125050G 1021176 SSCC162 37,0 1.46 15,5 .61 SS162062G 1021178 SSCC175 42,0 1.65 18,5 .73 SS175062G I Blank Cap D2 order number catalog number D2 mm in LF mm in stop screw reference 1021180 SSC031 6,5 .26 2,2 .09 SS031031G 1021204 SSC044 9,5 .37 2,2 .09 SS044038G,SS0500384 1021206 SSC056 12,0 .47 2,2 .09 SS075041G,SS056041G,SS062041G 1021208 SSC081 17,0 .67 2,2 .09 SS081041G,SS094041G NOTE: A solid cap for small-diameter cutting tools with no through-coolant capability. J22 WIDIA
