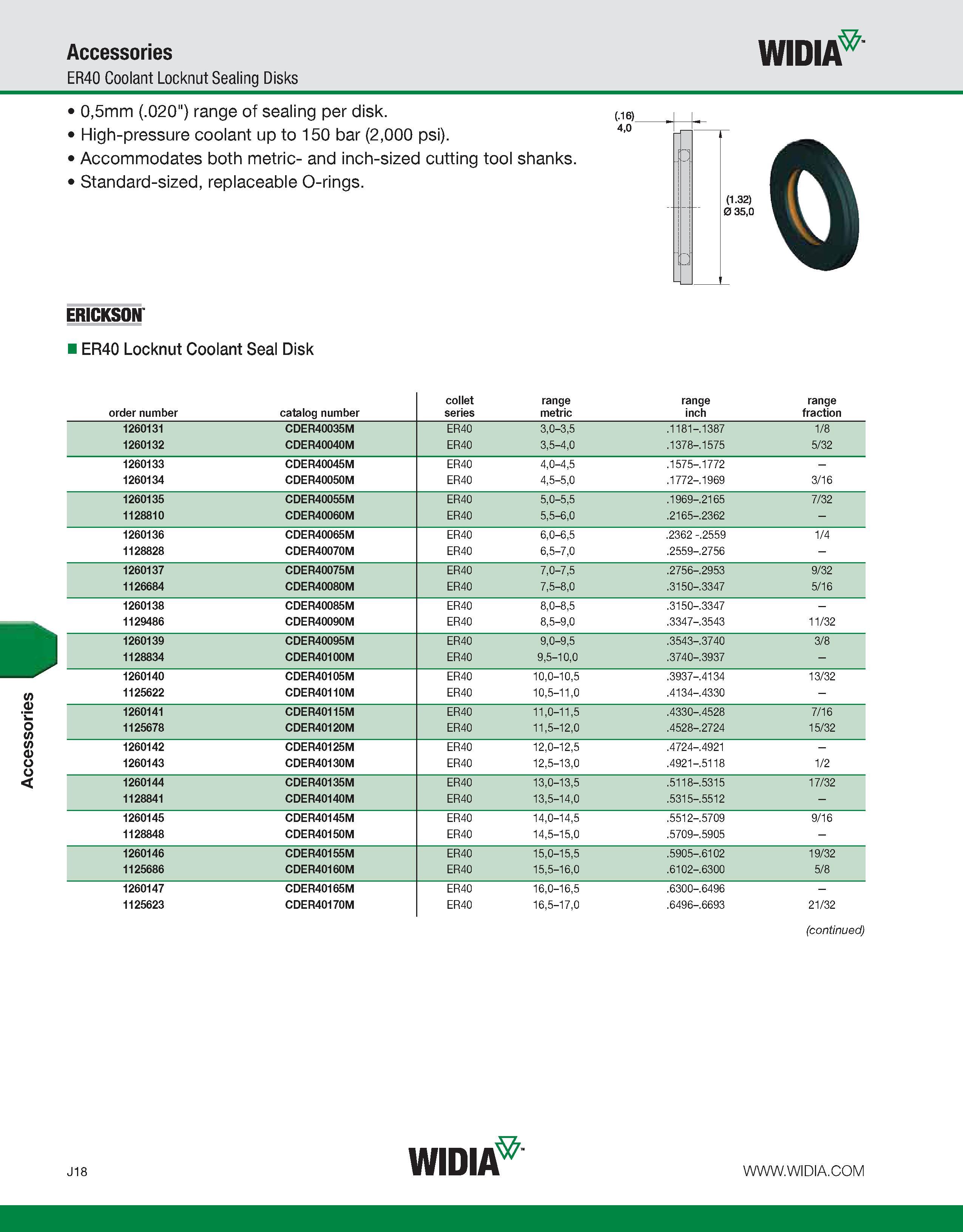

Accessories Accessories ER40 Coolant Locknut Sealing Disks WIDIA LL 0,5mm (.020") range of sealing per disk. High-pressure coolant up to 150 bar (2,000 psi). Accommodates both metric- and inch-sized cutting tool shanks. Standard-sized, replaceable O-rings. (.16) 4,0 (1.32) 0 35,0 ERICKSON ER40 Locknut Coolant Seal Disk order number catalog number collet series range metric range inch range fraction 1260131 CDER40035M ER40 3,0-3,5 .1181-.1387 1/8 1260132 CDER40040M ER40 3,5-4,0 .1378-.1575 5/32 1260133 CDER40045M ER40 4,0-4,5 .1575-.1772 - 1260134 CDER40050M ER40 4,5-5,0 .1772-.1969 3/16 1260135 CDER40055M ER40 5,0-5,5 .1969-.2165 7/32 1128810 CDER40060M ER40 5,5-6,0 .2165-.2362 - 1260136 CDER40065M ER40 6,0-6,5 .2362 -.2559 1/4 1128828 CDER40070M ER40 6,5-7,0 .2559-.2756 - 1260137 CDER40075M ER40 7,0-7,5 .2756-2953 9/32 1126684 CDER40080M ER40 7,5-8,0 .3150-.3347 5/16 1260138 CDER40085M ER40 8,0-8,5 .3150-.3347 - 1129486 CDER40090M ER40 8,5-9,0 .3347-.3543 11/32 1260139 CDER40095M ER40 9,0-9,5 .3543-.3740 3/8 1128834 CDER40100M ER40 9,5-10,0 .3740-.3937 - 1260140 CDER40105M ER40 10,0-10,5 .3937-.4134 13/32 1125622 CDER40110M ER40 10,5-11,0 .4134-.4330 - 1260141 CDER40115M ER40 11,0-11,5 .4330-.4528 7/16 1125678 CDER40120M ER40 11,5-12,0 .4528-.2724 15/32 1260142 CDER40125M ER40 12,0-12,5 .4724-.4921 - 1260143 CDER40130M ER40 12,5-13,0 .4921-.5118 1/2 1260144 CDER40135M ER40 13,0-13,5 .5118-.5315 17/32 1128841 CDER40140M ER40 13,5-14,0 .5315-.5512 - 1260145 CDER40145M ER40 14,0-14,5 .5512-.5709 9/16 1128848 CDER40150M ER40 14,5-15,0 .5709-.5905 - 1260146 CDER40155M ER40 15,0-15,5 .5905-.6102 19/32 1125686 CDER40160M ER40 15,5-16,0 .6102-.6300 5/8 1260147 CDER40165M ER40 16,0-16,5 .6300-.6496 - 1125623 CDER40170M ER40 16,5-17,0 .6496-.6693 21/32 (continued) J18 WIDIA
