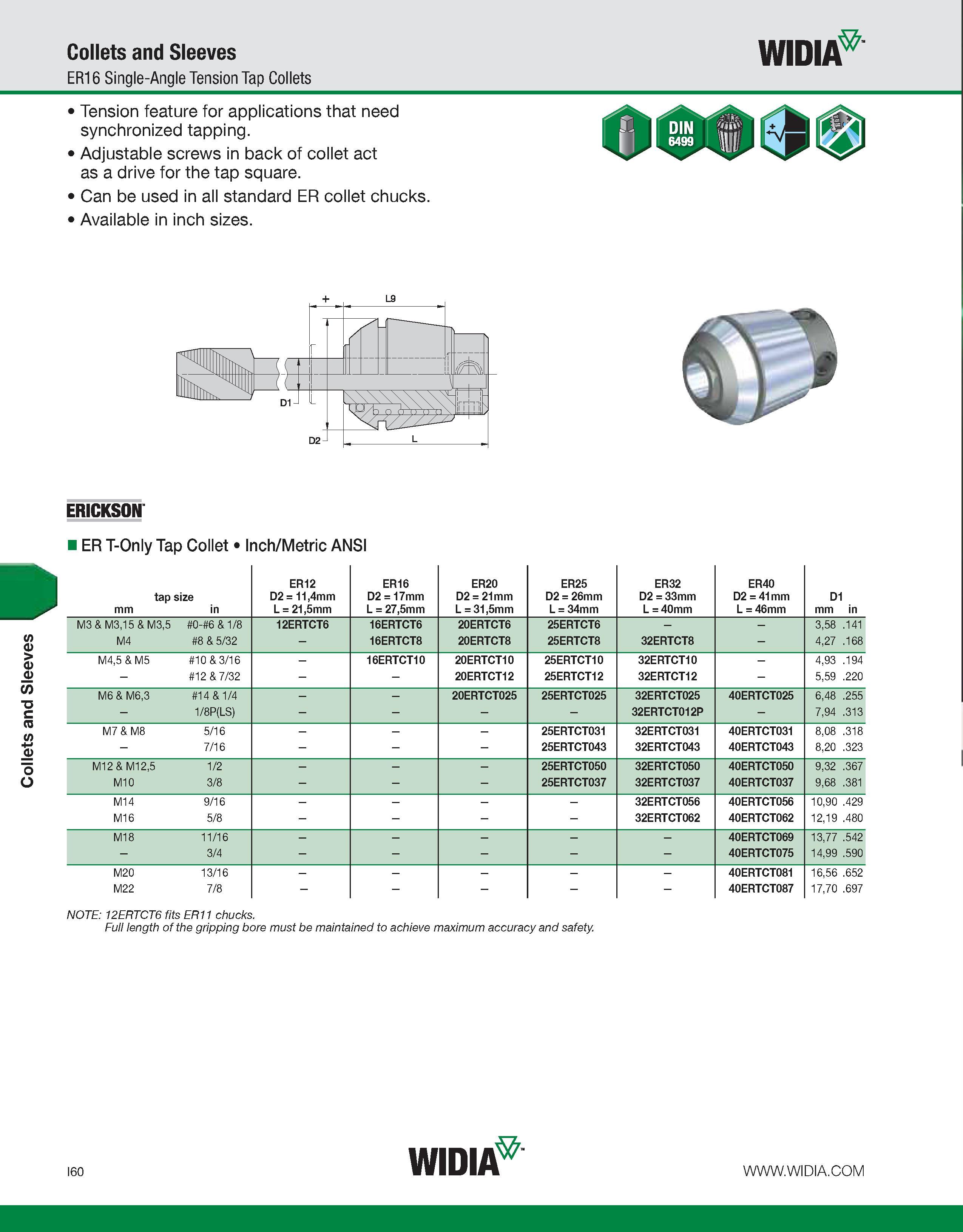

Collets and Sleeves Collets and Sleeves ER16 Single-Angle Tension Tap Collets WIDIA Tension feature for applications that need synchronized tapping. Adjustable screws in back of collet act as a drive for the tap square. Can be used in all standard ER collet chucks. Available in inch sizes. ERICKSON ER T-Only Tap Collet Inch/Metric ANSI tap size mm in ER12 D2 = 11,4mm L = 21,5mm ER16 D2 = 17mm L = 27,5mm ER20 D2 = 21mm L = 31,5mm ER25 D2 = 26mm L = 34mm ER32 D2 = 33mm L = 40mm ER40 D2 = 41mm L = 46mm D1 mm in M3 & M3,15 & M3,5 0- 6 & 1/8 12ERTCT6 16ERTCT6 20ERTCT6 25ERTCT6 3,58 .141 M4 8 & 5/32 - 16ERTCT8 20ERTCT8 25ERTCT8 32ERTCT8 - 4,27 .168 M4,5 & M5 10 & 3/16 - 16ERTCT10 20ERTCT10 25ERTCT10 32ERTCT10 - 4,93 .194 - 12 & 7/32 20ERTCT12 25ERTCT12 32ERTCT12 - 5,59 .220 M6 & M6,3 14 & 1/4 20ERTCT025 25ERTCT025 32ERTCT025 40ERTCT025 6,48 .255 - 1/8P(LS) 32ERTCT012P - 7,94 .313 M7 & M8 5/16 - 25ERTCT031 32ERTCT031 40ERTCT031 8,08 .318 - 7/16 - 25ERTCT043 32ERTCT043 40ERTCT043 8,20 .323 M12 & M12,5 1/2 - 25ERTCT050 32ERTCT050 40ERTCT050 9,32 .367 M10 3/8 - 25ERTCT037 32ERTCT037 40ERTCT037 9,68 .381 M14 9/16 32ERTCT056 40ERTCT056 10,90 .429 M16 5/8 32ERTCT062 40ERTCT062 12,19 .480 M18 11/16 - 40ERTCT069 13,77 .542 - 3/4 - 40ERTCT075 14,99 .590 M20 13/16 - 40ERTCT081 16,56 .652 M22 7/8 - 40ERTCT087 17,70 .697 NOTE: 12ERTCT6 fits ER11 chucks. Full length of the gripping bore must be maintained to achieve maximum accuracy and safety. I60 WIDIA
