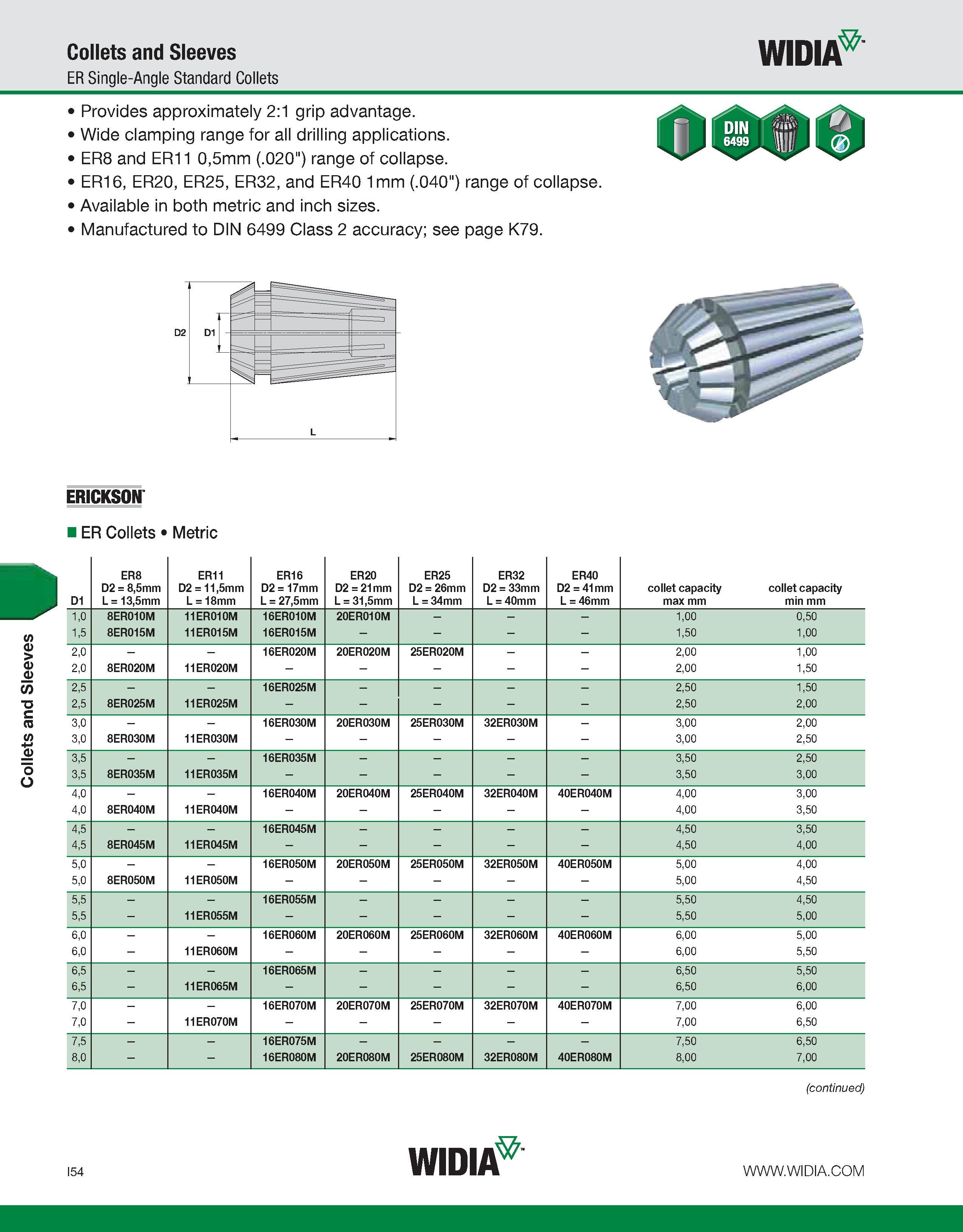

Collets and Sleeves Collets and Sleeves ER Single-Angle Standard Collets WIDIA Provides approximately 2:1 grip advantage. Wide clamping range for all drilling applications. ER8 and ER11 0,5mm (.020") range of collapse. ER16, ER20, ER25, ER32, and ER40 1mm (.040") range of collapse. Available in both metric and inch sizes. Manufactured to DIN 6499 Class 2 accuracy; see page K79. ERICKSON ER Collets Metric D1 ER8 D2 = 8,5mm L = 13,5mm ER11 D2 = 11,5mm L = 18mm ER16 D2 = 17mm L = 27,5mm ER20 D2 = 21mm L = 31,5mm ER25 D2 = 26mm L = 34mm ER32 D2 = 33mm L = 40mm ER40 D2 = 41mm L = 46mm collet capacity max mm collet capacity min mm 1,0 8ER010M 11ER010M 16ER010M 20ER010M - 1,00 0,50 1,5 8ER015M 11ER015M 16ER015M 1,50 1,00 2,0 16ER020M 20ER020M 25ER020M 2,00 1,00 2,0 8ER020M 11ER020M - 2,00 1,50 2,5 16ER025M 2,50 1,50 2,5 8ER025M 11ER025M - 2,50 2,00 3,0 16ER030M 20ER030M 25ER030M 32ER030M - 3,00 2,00 3,0 8ER030M 11ER030M - 3,00 2,50 3,5 16ER035M 3,50 2,50 3,5 8ER035M 11ER035M - 3,50 3,00 4,0 16ER040M 20ER040M 25ER040M 32ER040M 40ER040M 4,00 3,00 4,0 8ER040M 11ER040M - 4,00 3,50 4,5 16ER045M 4,50 3,50 4,5 8ER045M 11ER045M - 4,50 4,00 5,0 16ER050M 20ER050M 25ER050M 32ER050M 40ER050M 5,00 4,00 5,0 8ER050M 11ER050M - 5,00 4,50 5,5 16ER055M 5,50 4,50 5,5 - 11ER055M - 5,50 5,00 6,0 16ER060M 20ER060M 25ER060M 32ER060M 40ER060M 6,00 5,00 6,0 - 11ER060M - 6,00 5,50 6,5 16ER065M 6,50 5,50 6,5 - 11ER065M - 6,50 6,00 7,0 16ER070M 20ER070M 25ER070M 32ER070M 40ER070M 7,00 6,00 7,0 - 11ER070M - 7,00 6,50 7,5 16ER075M 7,50 6,50 8,0 16ER080M 20ER080M 25ER080M 32ER080M 40ER080M 8,00 7,00 (continued)
