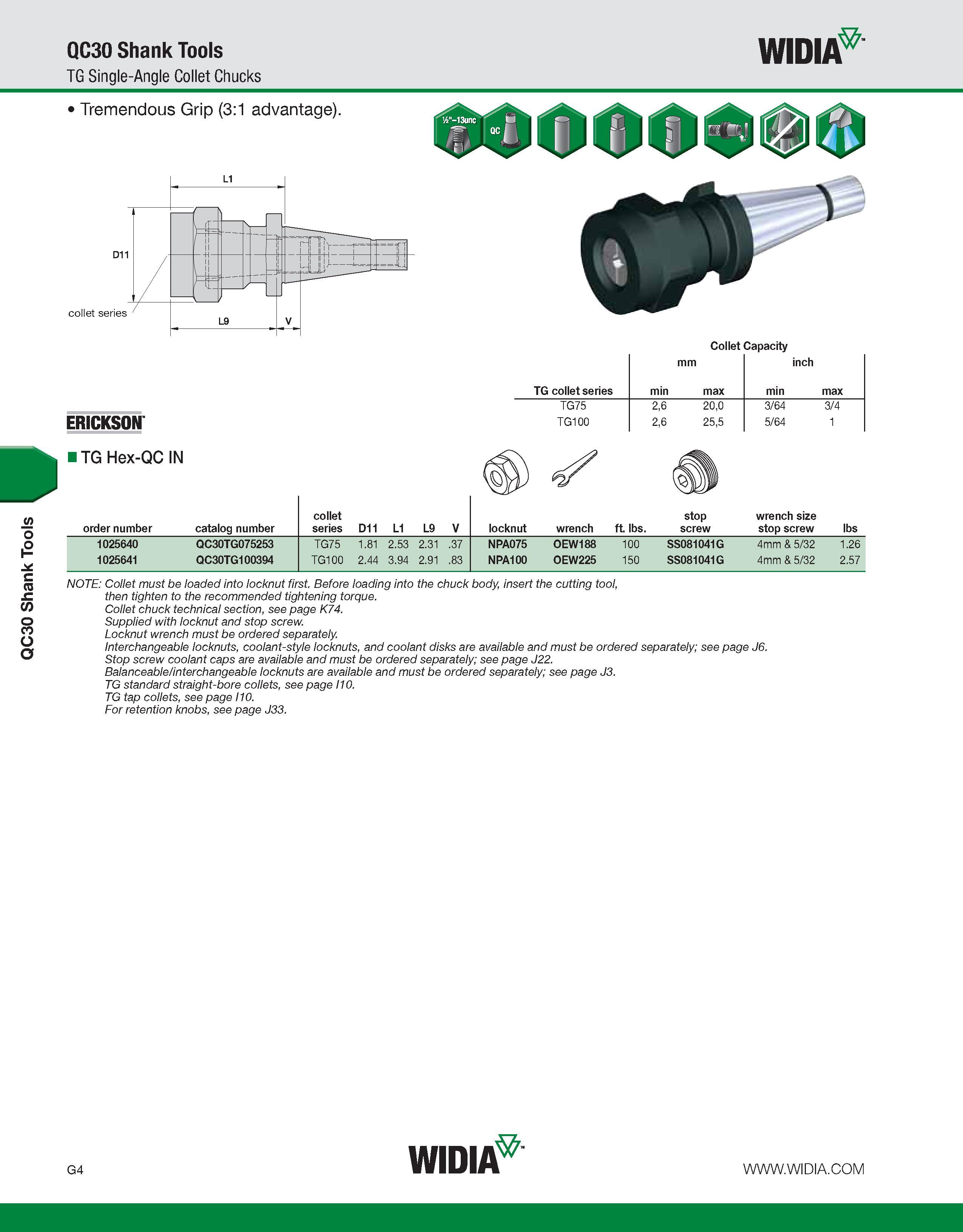

QC30 Shank Tools QC30 Shank Tools TG Single-Angle Collet Chucks WIDIA Tremendous Grip (3:1 advantage). Collet Capacity ERICKSON mm inch TG collet series min max min max TG75 2,6 20,0 3/64 3/4 TG100 2,6 25,5 5/64 1 TG Hex-QC IN order number catalog number collet series D11 L1 L9 V locknut wrench ft. lbs. stop screw wrench size stop screw lbs 1025640 QC30TG075253 TG75 1.81 2.53 2.31 .37 NPA075 OEW188 100 SS081041G 4mm & 5/32 1.26 1025641 QC30TG100394 TG100 2.44 3.94 2.91 .83 NPA100 OEW225 150 SS081041G 4mm & 5/32 2.57 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see page J6. Stop screw coolant caps are available and must be ordered separately; see page J22. Balanceable/interchangeable locknuts are available and must be ordered separately; see page J3. TG standard straight-bore collets, see page I10. TG tap collets, see page I10. For retention knobs, see page J33. G4 WIDIA
