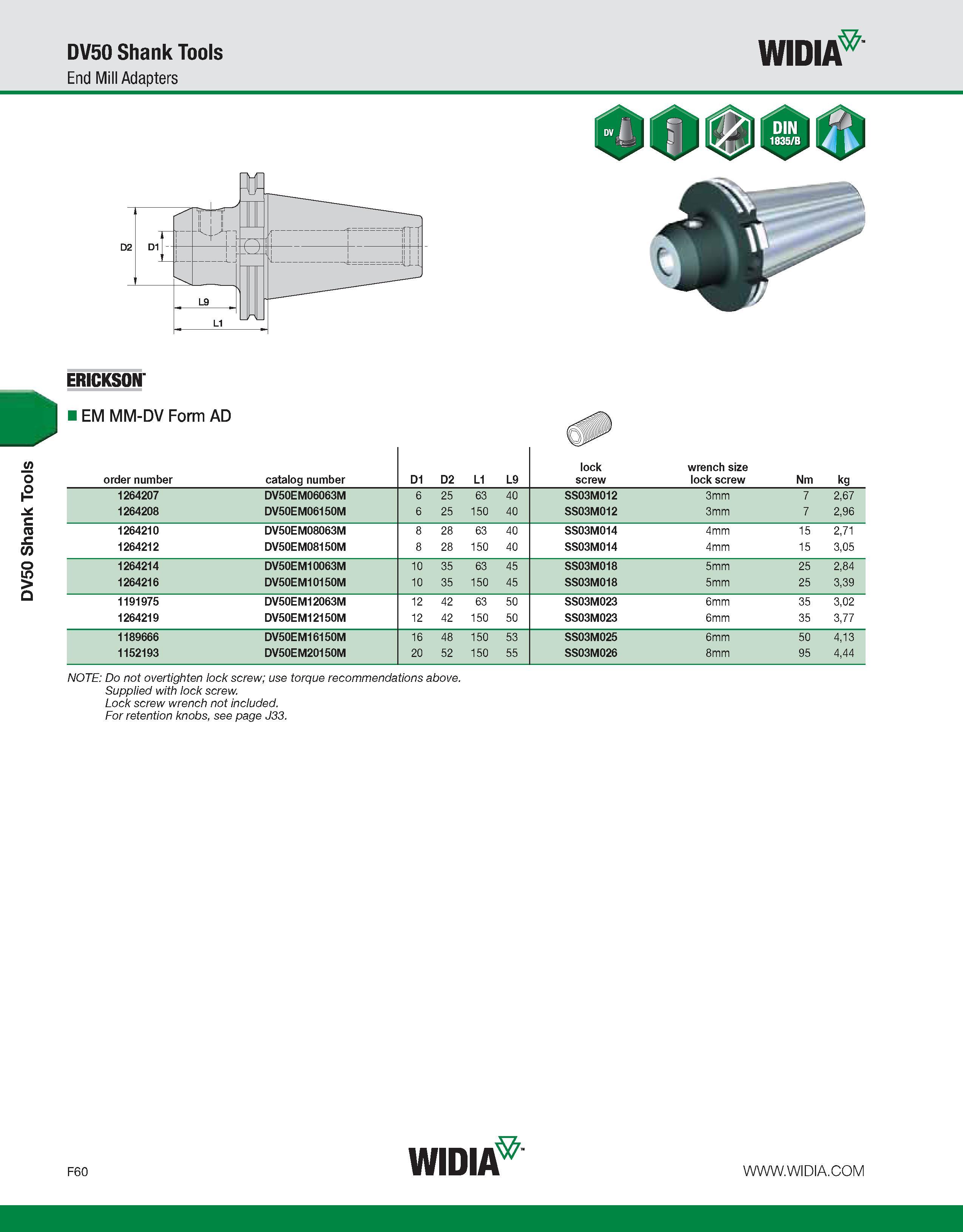

DV50 Shank Tools DV50 Shank Tools End Mill Adapters WIDIA ERICKSON' EM MM-DV Form AD order number catalog number D1 D2 L1 L9 lock screw wrench size lock screw Nm kg 1264207 DV50EM06063M 6 25 63 40 SS03M012 3mm 7 2,67 1264208 DV50EM06150M 6 25 150 40 SS03M012 3mm 7 2,96 1264210 DV50EM08063M 8 28 63 40 SS03M014 4mm 15 2,71 1264212 DV50EM08150M 8 28 150 40 SS03M014 4mm 15 3,05 1264214 DV50EM10063M 10 35 63 45 SS03M018 5mm 25 2,84 1264216 DV50EM10150M 10 35 150 45 SS03M018 5mm 25 3,39 1191975 DV50EM12063M 12 42 63 50 SS03M023 6mm 35 3,02 1264219 DV50EM12150M 12 42 150 50 SS03M023 6mm 35 3,77 1189666 DV50EM16150M 16 48 150 53 SS03M025 6mm 50 4,13 1152193 DV50EM20150M 20 52 150 55 SS03M026 8mm 95 4,44 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. For retention knobs, see page J33. F60 WIDIA
