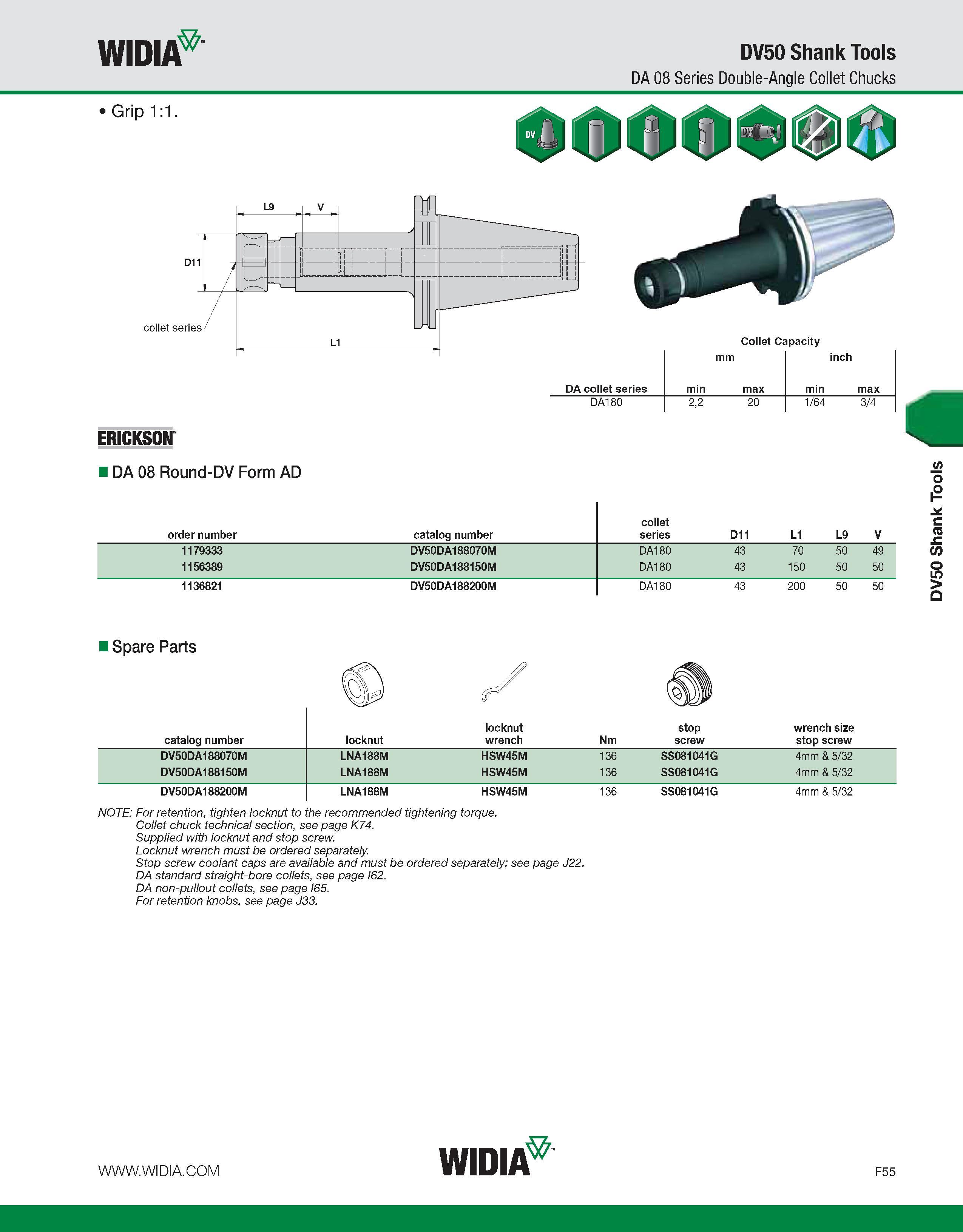

WIDIA DV50 Shank Tools DA 08 Series Double-Angle Collet Chucks Grip 1:1. collet series/ L9 V TO Collet Capacity mm inch DA collet series min max min max DA180 2,2 20 1/64 3/4 ERICKSON DA 08 Round-DV Form AD order number catalog number collet series D11 L1 L9 V 1179333 DV50DA188070M DA180 43 70 50 49 1156389 DV50DA188150M DA180 43 150 50 50 1136821 DV50DA188200M DA180 43 200 50 50 Spare Parts locknut stop wrench size catalog number locknut wrench Nm screw stop screw DV50DA188070M LNA188M HSW45M 136 SS081041G 4mm & 5/32 DV50DA188150M LNA188M HSW45M 136 SS081041G 4mm & 5/32 DV50DA188200M LNA188M HSW45M 136 SS081041G 4mm & 5/32 NOTE: For retention, tighten locknut to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Stop screw coolant caps are available and must be ordered separately; see page J22. DA standard straight-bore collets, see page I62. DA non-pullout collets, see page I65. For retention knobs, see page J33. DV50 Shank Tools
