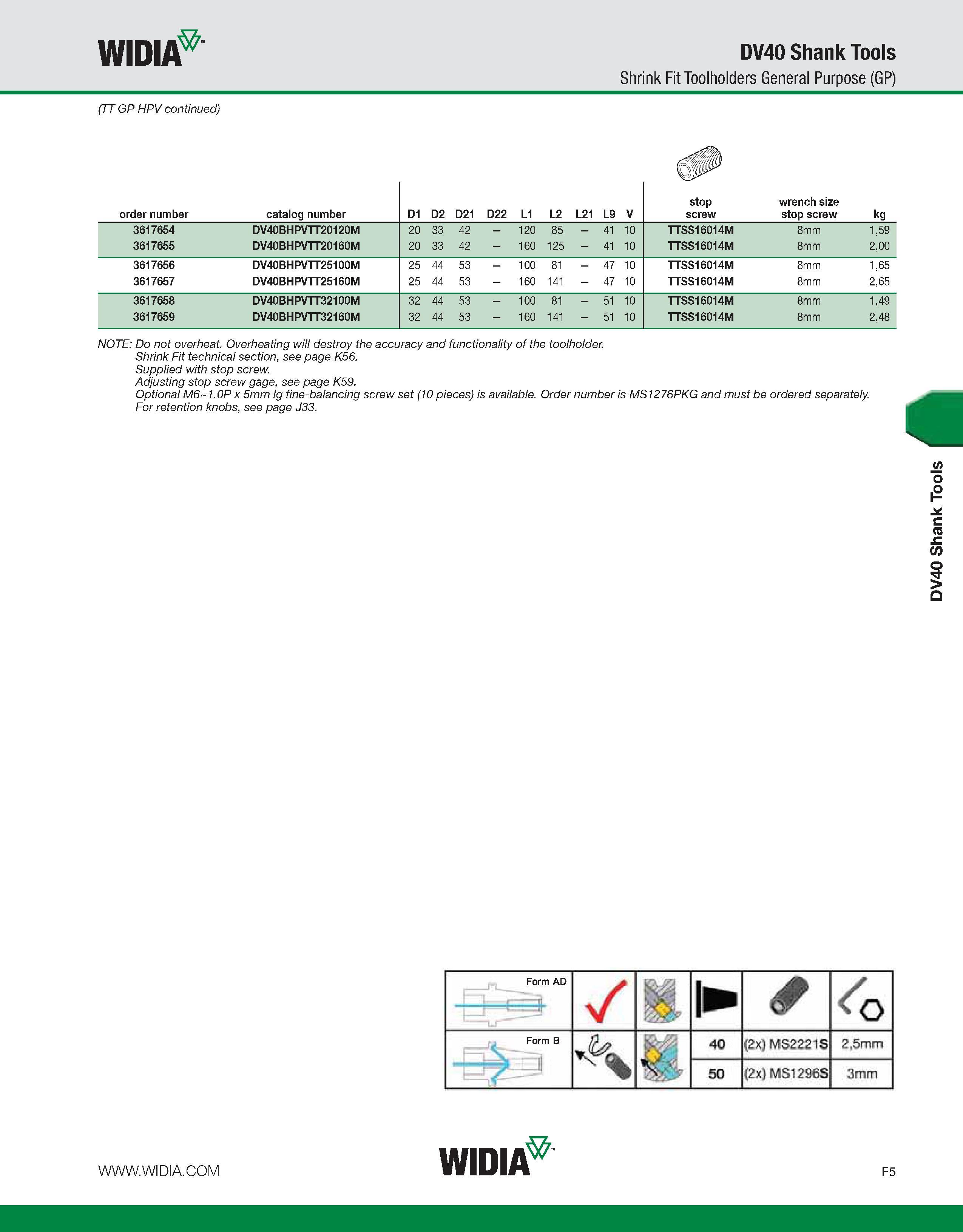

WIDIA DV40 Shank Tools Shrink Fit Toolholders General Purpose (GP) (TT GP HPV continued) order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V stop screw wrench size stop screw kg 3617654 DV40BHPVTT20120M 20 33 42 - 120 85 - 41 10 TTSS16014M 8mm 1,59 3617655 DV40BHPVTT20160M 20 33 42 - 160 125 - 41 10 TTSS16014M 8mm 2,00 3617656 DV40BHPVTT25100M 25 44 53 - 100 81 - 47 10 TTSS16014M 8mm 1,65 3617657 DV40BHPVTT25160M 25 44 53 - 160 141 - 47 10 TTSS16014M 8mm 2,65 3617658 DV40BHPVTT32100M 32 44 53 - 100 81 - 51 10 TTSS16014M 8mm 1,49 3617659 DV40BHPVTT32160M 32 44 53 - 160 141 - 51 10 TTSS16014M 8mm 2,48 NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Shrink Fit technical section, see page K56. Supplied with stop screw. Adjusting stop screw gage, see page K59. Optional M6 1.0P x 5mm lg fine-balancing screw set (10 pieces) is available. Order number is MS1276PKG and must be ordered separately. For retention knobs, see page J33. O .O c TO C W o :> Q WIDIA F5
