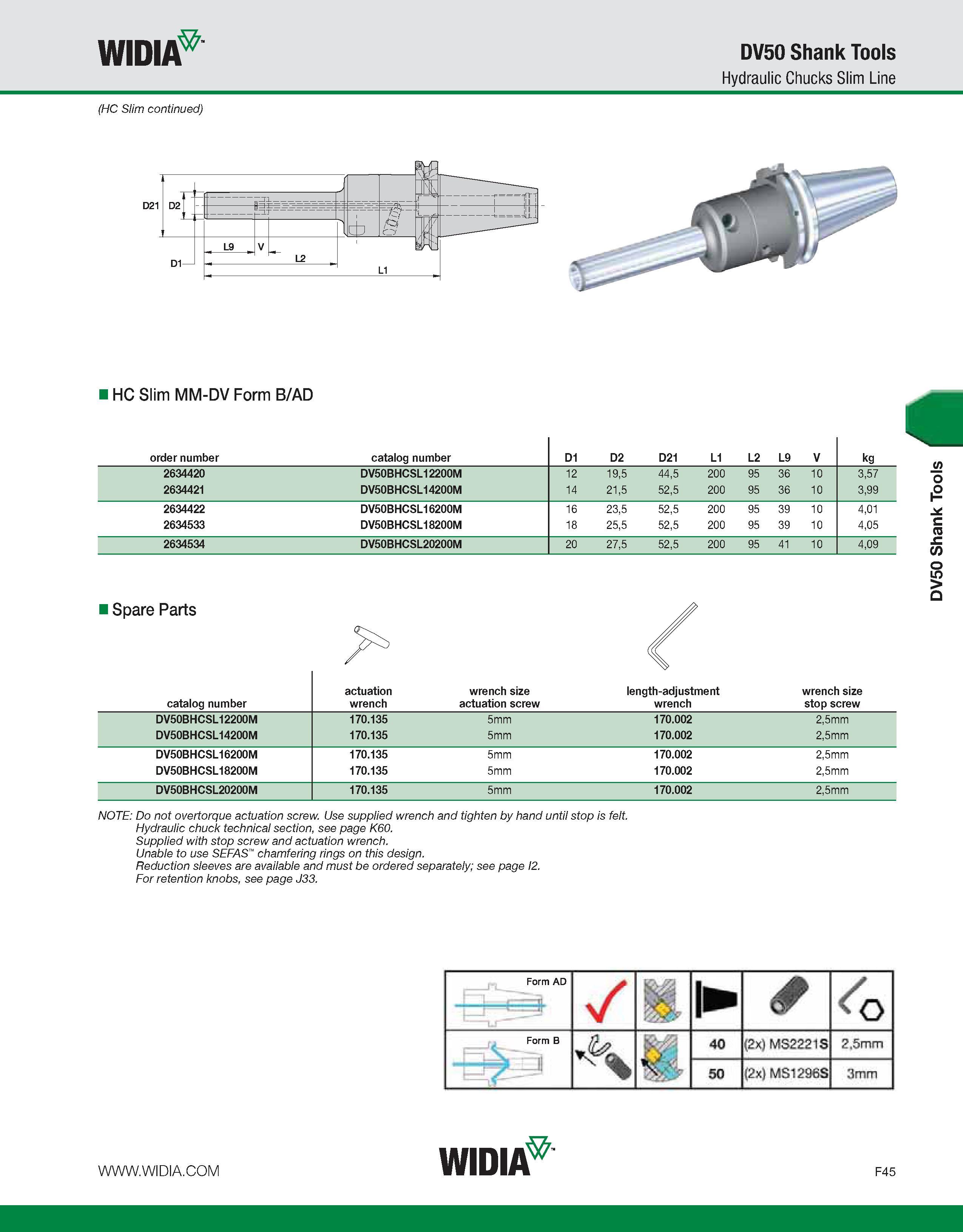

WIDIA DV50 Shank Tools Hydraulic Chucks Slim Line (HC Slim continued) I HC Slim MM-DV Form B/AD order number catalog number D1 D2 D21 L1 L2 L9 V kg 2634420 DV50BHCSL12200M 12 19,5 44,5 200 95 36 10 3,57 2634421 DV50BHCSL14200M 14 21,5 52,5 200 95 36 10 3,99 2634422 DV50BHCSL16200M 16 23,5 52,5 200 95 39 10 4,01 2634533 DV50BHCSL18200M 18 25,5 52,5 200 95 39 10 4,05 2634534 DV50BHCSL20200M 20 27,5 52,5 200 95 41 10 4,09 i Spare Parts catalog number actuation wrench wrench size actuation screw length-adjustment wrench wrench size stop screw DV50BHCSL12200M 170.135 5mm 170.002 2,5mm DV50BHCSL14200M 170.135 5mm 170.002 2,5mm DV50BHCSL16200M 170.135 5mm 170.002 2,5mm DV50BHCSL18200M 170.135 5mm 170.002 2,5mm DV50BHCSL20200M 170.135 5mm 170.002 2,5mm NOTE: Do not overtorque actuation screw. Use supplied wrench and tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw and actuation wrench. Unable to use SEFAS chamfering rings on this design. Reduction sleeves are available and must be ordered separately; see page I2. For retention knobs, see page J33. DV50 Shank Tools
