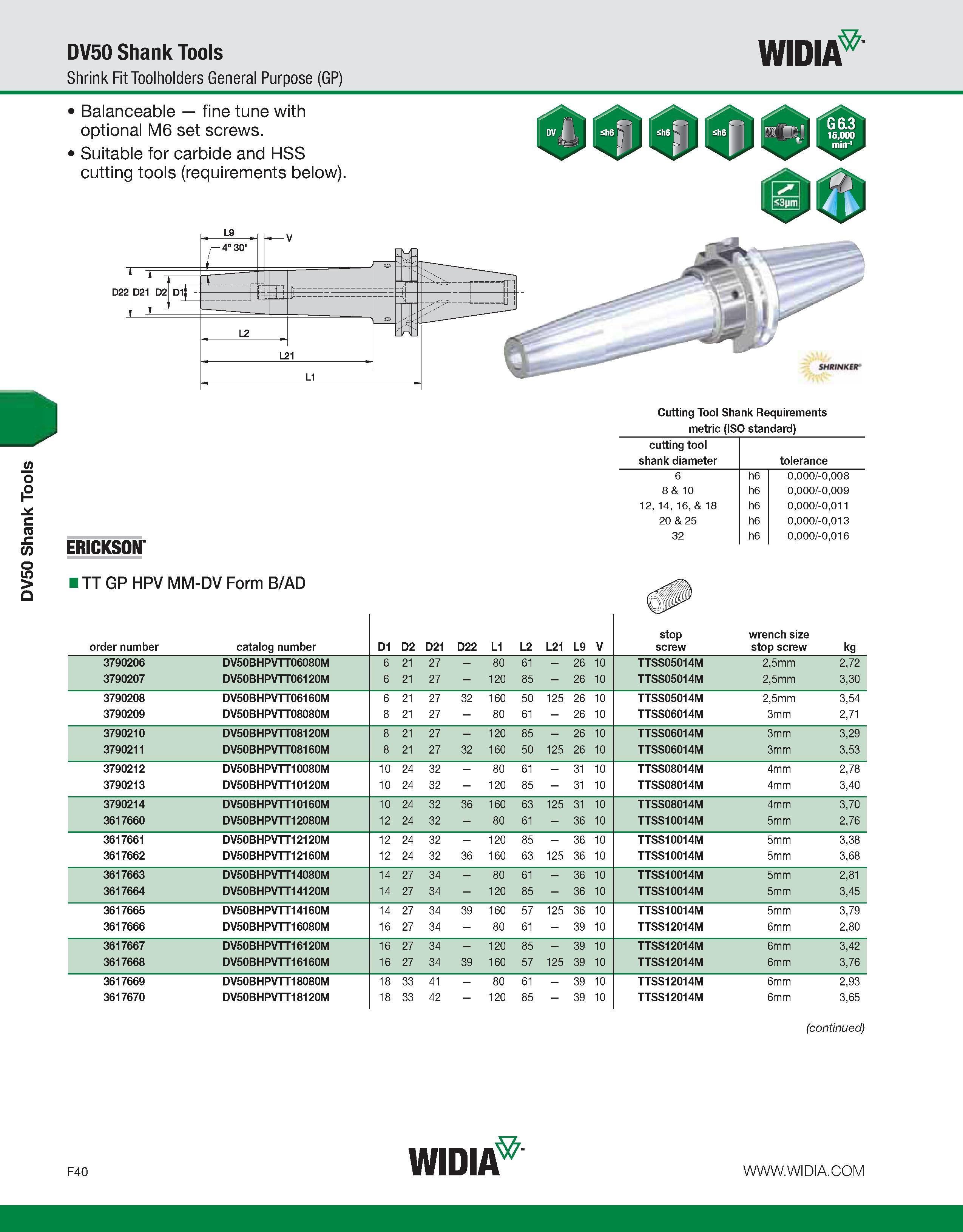

DV50 Shank Tools DV50 Shank Tools Shrink Fit Toolholders General Purpose (GP) Balanceable - fine tune with optional M6 set screws. Suitable for carbide and HSS cutting tools (requirements below) WIDIA D22 Cutting Tool Shank Requirements metric (ISO standard) ERICKSON' cutting tool shank diameter tolerance 6 h6 0,000/-0,008 8 & 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 I TT GP HPV MM-DV Form B/AD order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V stop screw wrench size stop screw kg 3790206 DV50BHPVTT06080M 6 21 27 - 80 61 - 26 10 TTSS05014M 2,5mm 2,72 3790207 DV50BHPVTT06120M 6 21 27 - 120 85 - 26 10 TTSS05014M 2,5mm 3,30 3790208 DV50BHPVTT06160M 6 21 27 32 160 50 125 26 10 TTSS05014M 2,5mm 3,54 3790209 DV50BHPVTT08080M 8 21 27 - 80 61 - 26 10 TTSS06014M 3mm 2,71 3790210 DV50BHPVTT08120M 8 21 27 - 120 85 - 26 10 TTSS06014M 3mm 3,29 3790211 DV50BHPVTT08160M 8 21 27 32 160 50 125 26 10 TTSS06014M 3mm 3,53 3790212 DV50BHPVTT10080M 10 24 32 - 80 61 - 31 10 TTSS08014M 4mm 2,78 3790213 DV50BHPVTT10120M 10 24 32 - 120 85 - 31 10 TTSS08014M 4mm 3,40 3790214 DV50BHPVTT10160M 10 24 32 36 160 63 125 31 10 TTSS08014M 4mm 3,70 3617660 DV50BHPVTT12080M 12 24 32 - 80 61 - 36 10 TTSS10014M 5mm 2,76 3617661 DV50BHPVTT12120M 12 24 32 - 120 85 - 36 10 TTSS10014M 5mm 3,38 3617662 DV50BHPVTT12160M 12 24 32 36 160 63 125 36 10 TTSS10014M 5mm 3,68 3617663 DV50BHPVTT14080M 14 27 34 - 80 61 - 36 10 TTSS10014M 5mm 2,81 3617664 DV50BHPVTT14120M 14 27 34 - 120 85 - 36 10 TTSS10014M 5mm 3,45 3617665 DV50BHPVTT14160M 14 27 34 39 160 57 125 36 10 TTSS10014M 5mm 3,79 3617666 DV50BHPVTT16080M 16 27 34 - 80 61 - 39 10 TTSS12014M 6mm 2,80 3617667 DV50BHPVTT16120M 16 27 34 - 120 85 - 39 10 TTSS12014M 6mm 3,42 3617668 DV50BHPVTT16160M 16 27 34 39 160 57 125 39 10 TTSS12014M 6mm 3,76 3617669 DV50BHPVTT18080M 18 33 41 - 80 61 - 39 10 TTSS12014M 6mm 2,93 3617670 DV50BHPVTT18120M 18 33 42 - 120 85 - 39 10 TTSS12014M 6mm 3,65 (continued) F40 WIDIA
