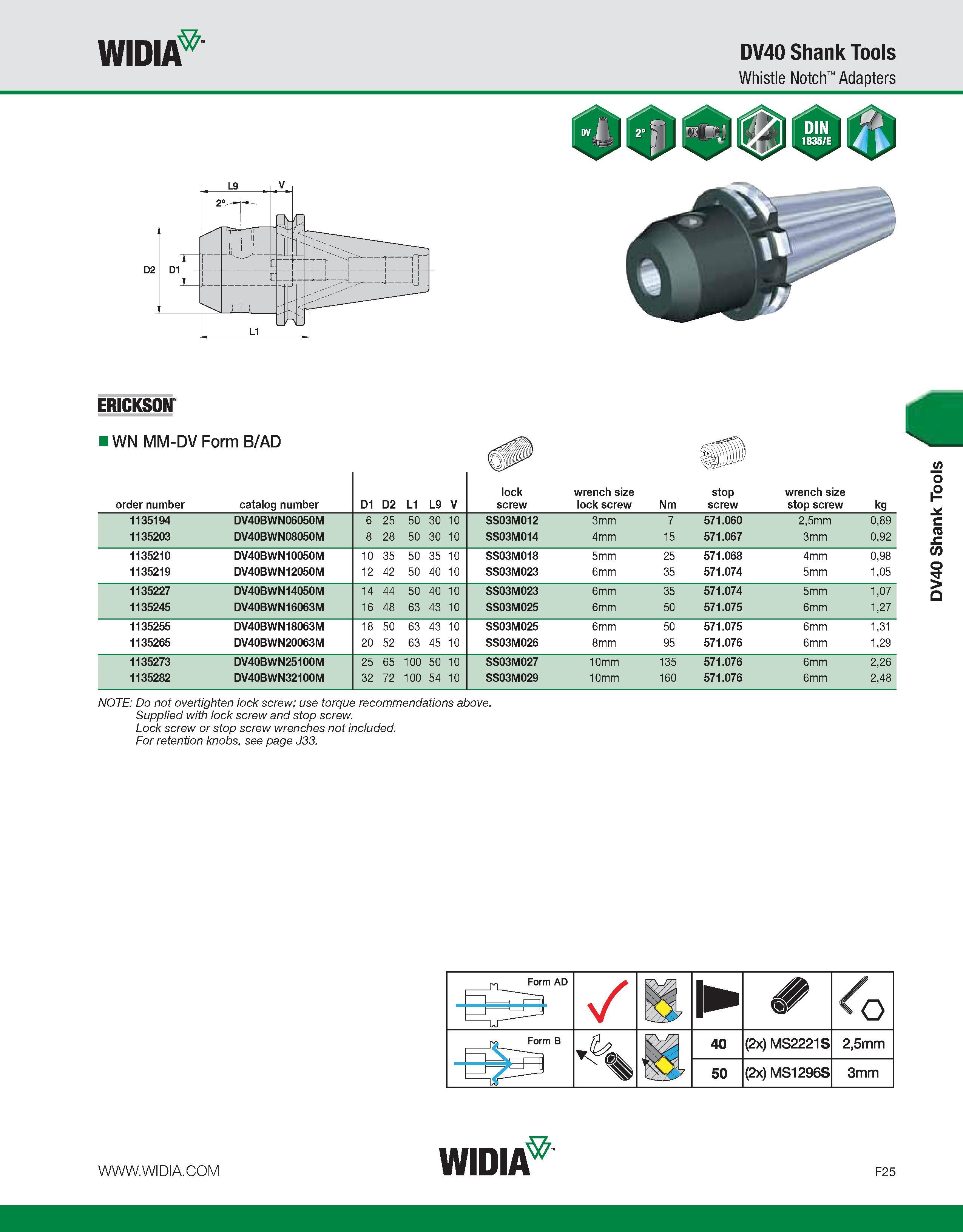

WIDIA DV40 Shank Tools Whistle Notch Adapters ERICKSON IWN MM-DV Form B/AD order number catalog number D1 D2 L1 L9 V lock screw wrench size lock screw Nm stop screw wrench size stop screw kg 1135194 DV40BWN06050M 6 25 50 30 10 SS03M012 3mm 7 571.060 2,5mm 0,89 1135203 DV40BWN08050M 8 28 50 30 10 SS03M014 4mm 15 571.067 3mm 0,92 1135210 DV40BWN10050M 10 35 50 35 10 SS03M018 5mm 25 571.068 4mm 0,98 1135219 DV40BWN12050M 12 42 50 40 10 SS03M023 6mm 35 571.074 5mm 1,05 1135227 DV40BWN14050M 14 44 50 40 10 SS03M023 6mm 35 571.074 5mm 1,07 1135245 DV40BWN16063M 16 48 63 43 10 SS03M025 6mm 50 571.075 6mm 1,27 1135255 DV40BWN18063M 18 50 63 43 10 SS03M025 6mm 50 571.075 6mm 1,31 1135265 DV40BWN20063M 20 52 63 45 10 SS03M026 8mm 95 571.076 6mm 1,29 1135273 DV40BWN25100M 25 65 100 50 10 SS03M027 10mm 135 571.076 6mm 2,26 1135282 DV40BWN32100M 32 72 100 54 10 SS03M029 10mm 160 571.076 6mm 2,48 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and stop screw. Lock screw or stop screw wrenches not included. For retention knobs, see page J33. DV40 Shank Tools
