795 Каталог WIDIA 2011 Инструментальная оснастка для металлорежущих станков Стр.F15

Каталог WIDIA 2011 Инструментальная оснастка Стр. F15 0795 ENG Lab2u

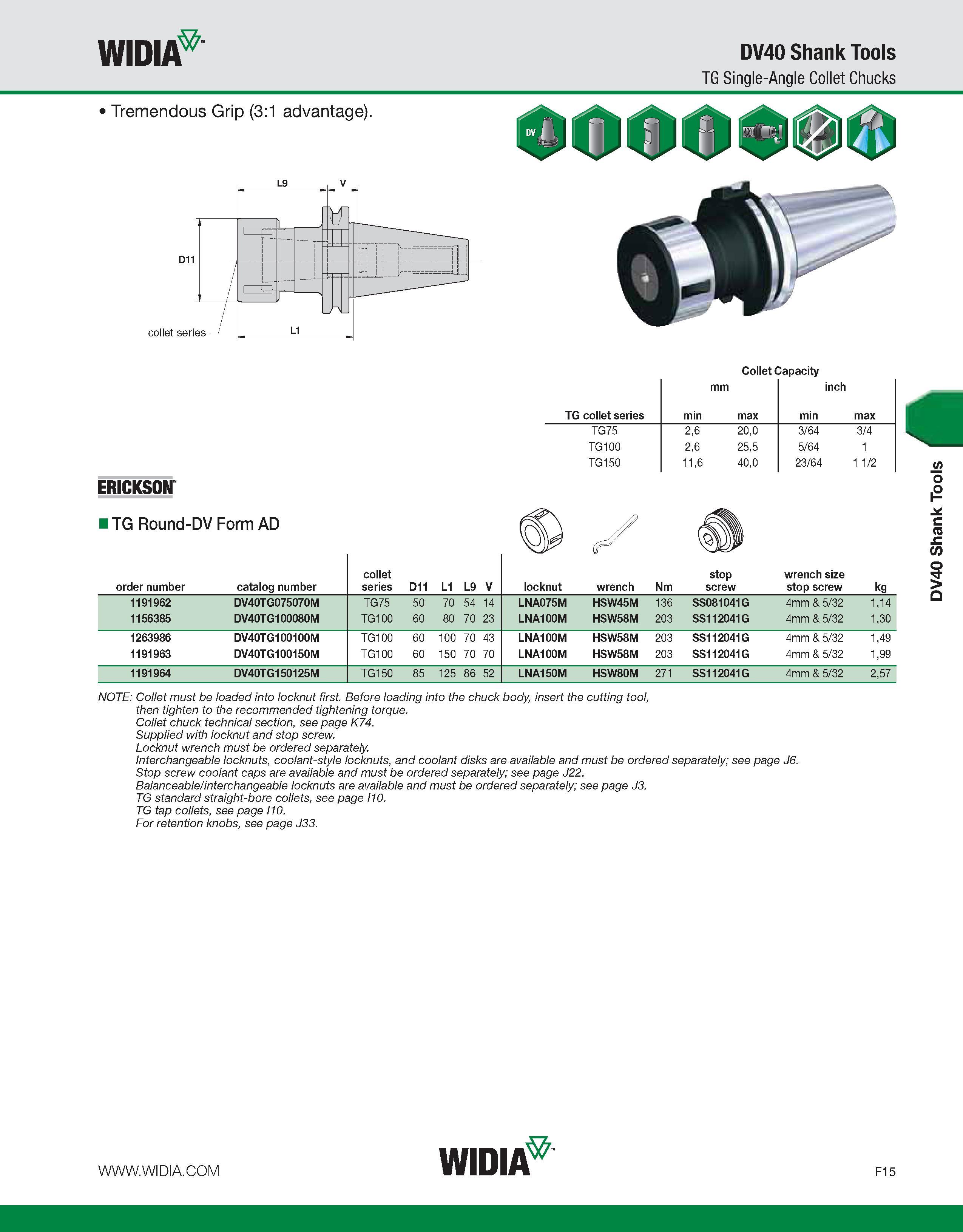

WIDIA DV40 Shank Tools TG Single-Angle Collet Chucks Tremendous Grip (3:1 advantage). 000 Collet Capacity TG collet series mm min max inch min max TG75 2,6 20,0 3/64 3/4 TG100 2,6 25,5 5/64 1 TG150 11,6 40,0 23/64 1 1/2 ERICKSON I TG Round-DV Form AD order number catalog number collet series D11 L1 L9 V locknut wrench Nm stop screw wrench size stop screw kg 1191962 DV40TG075070M TG75 50 70 54 14 LNA075M HSW45M 136 SS081041G 4mm & 5/32 1,14 1156385 DV40TG100080M TG100 60 80 70 23 LNA100M HSW58M 203 SS112041G 4mm & 5/32 1,30 1263986 DV40TG100100M TG100 60 100 70 43 LNA100M HSW58M 203 SS112041G 4mm & 5/32 1,49 1191963 DV40TG100150M TG100 60 150 70 70 LNA100M HSW58M 203 SS112041G 4mm & 5/32 1,99 1191964 DV40TG150125M TG150 85 125 86 52 LNA150M HSW80M 271 SS112041G 4mm & 5/32 2,57 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see page J6. Stop screw coolant caps are available and must be ordered separately; see page J22. Balanceable/interchangeable locknuts are available and must be ordered separately; see page J3. TG standard straight-bore collets, see page I10. TG tap collets, see page I10. For retention knobs, see page J33. DV40 Shank Tools
