790 Каталог WIDIA 2011 Инструментальная оснастка для металлорежущих станков Стр.F10

Каталог WIDIA 2011 Инструментальная оснастка Стр. F10 0790 ENG Lab2u

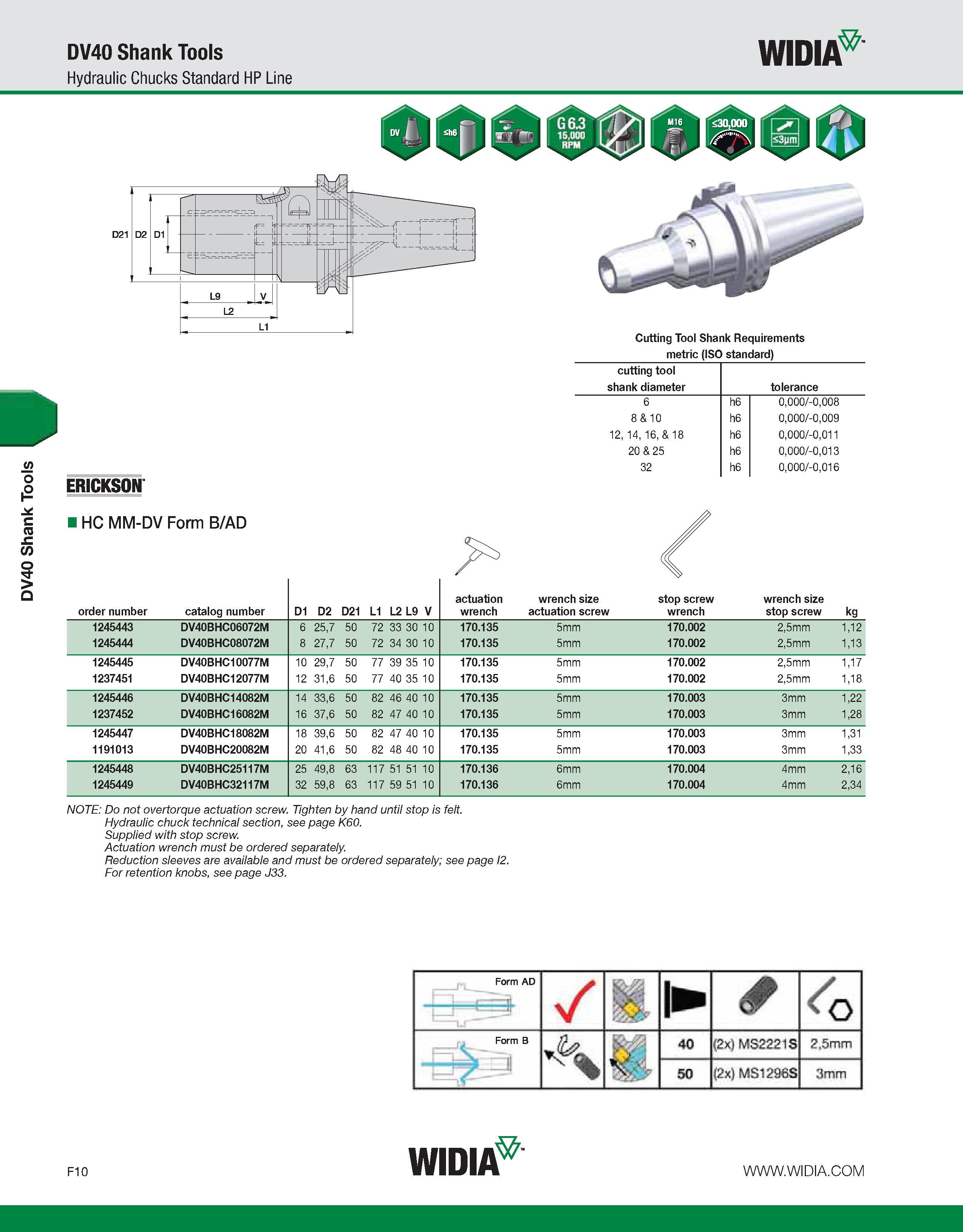

DV40 Shank Tools DV40 Shank Tools Hydraulic Chucks Standard HP Line WIDIA Cutting Tool Shank Requirements metric (ISO standard) ERICKSON cutting tool shank diameter tolerance 6 h6 0,000/-0,008 8 & 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 HC MM-DV Form B/AD order number catalog number D1 D2 D21 L1 L2 L9 V actuation wrench wrench size actuation screw stop screw wrench wrench size stop screw kg 1245443 DV40BHC06072M 6 25,7 50 72 33 30 10 170.135 5mm 170.002 2,5mm 1,12 1245444 DV40BHC08072M 8 27,7 50 72 34 30 10 170.135 5mm 170.002 2,5mm 1,13 1245445 DV40BHC10077M 10 29,7 50 77 39 35 10 170.135 5mm 170.002 2,5mm 1,17 1237451 DV40BHC12077M 12 31,6 50 77 40 35 10 170.135 5mm 170.002 2,5mm 1,18 1245446 DV40BHC14082M 14 33,6 50 82 46 40 10 170.135 5mm 170.003 3mm 1,22 1237452 DV40BHC16082M 16 37,6 50 82 47 40 10 170.135 5mm 170.003 3mm 1,28 1245447 DV40BHC18082M 18 39,6 50 82 47 40 10 170.135 5mm 170.003 3mm 1,31 1191013 DV40BHC20082M 20 41,6 50 82 48 40 10 170.135 5mm 170.003 3mm 1,33 1245448 DV40BHC25117M 25 49,8 63 117 51 51 10 170.136 6mm 170.004 4mm 2,16 1245449 DV40BHC32117M 32 59,8 63 117 59 51 10 170.136 6mm 170.004 4mm 2,34 NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw. Actuation wrench must be ordered separately. Reduction sleeves are available and must be ordered separately; see page I2. For retention knobs, see page J33. Form AD v/ m <0 _ V Form B j ' . 40 <2x) MS2221S 3,5mm 50 2a Msi2aes 3mm F10 WIDIA
