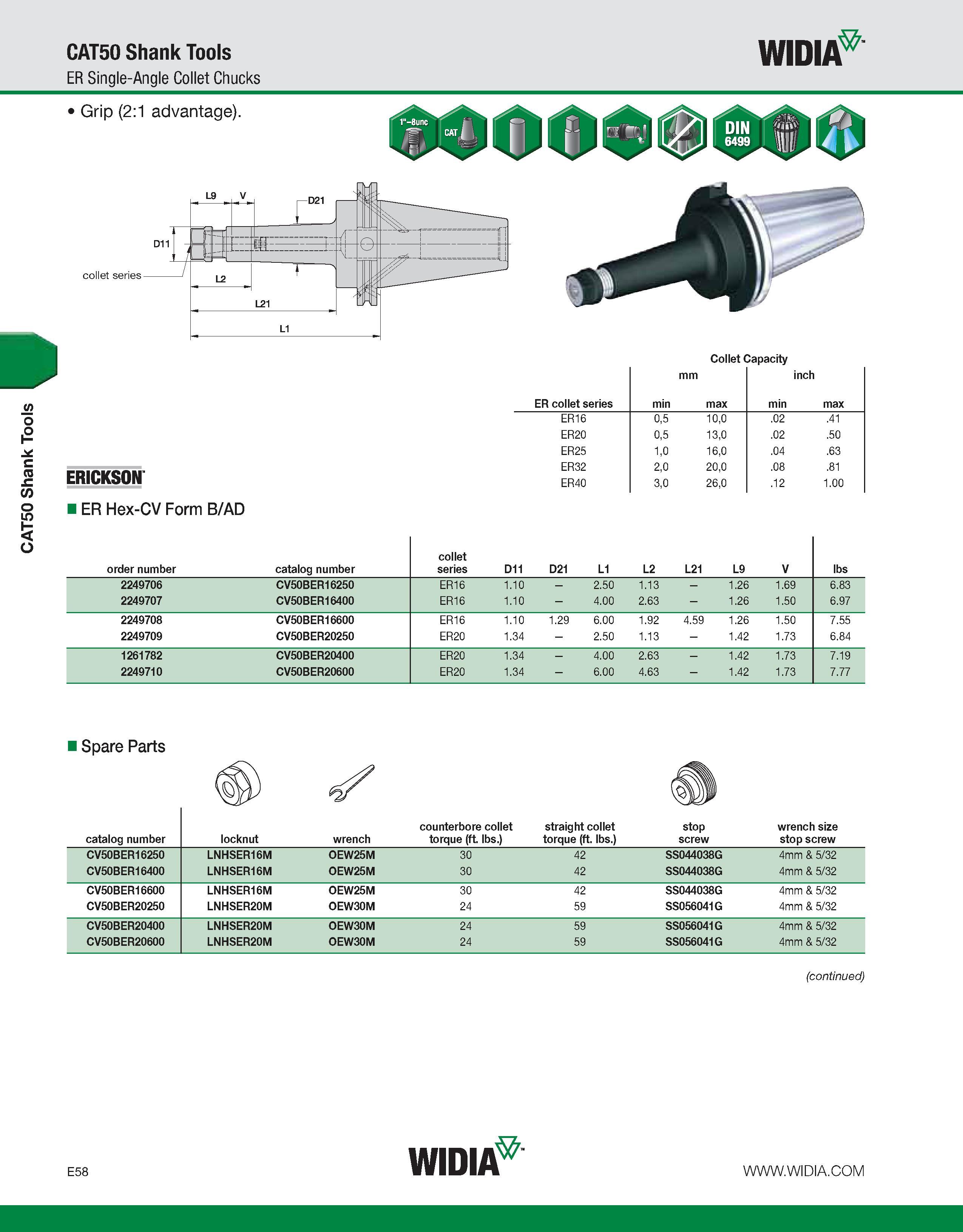

CAT50 Shank Tools CAT50 Shank Tools ER Single-Angle Collet Chucks WIDIA Grip (2:1 advantage). OS Collet Capacity ERICKSON ER collet series min mm max inch min max ER16 0,5 10,0 .02 .41 ER20 0,5 13,0 .02 .50 ER25 1,0 16,0 .04 .63 ER32 2,0 20,0 .08 .81 ER40 3,0 26,0 .12 1.00 ER Hex-CV Form B/AD order number catalog number collet series D11 D21 L1 L2 L21 L9 V lbs 2249706 CV50BER16250 ER16 1.10 - 2.50 1.13 - 1.26 1.69 6.83 2249707 CV50BER16400 ER16 1.10 - 4.00 2.63 - 1.26 1.50 6.97 2249708 CV50BER16600 ER16 1.10 1.29 6.00 1.92 4.59 1.26 1.50 7.55 2249709 CV50BER20250 ER20 1.34 - 2.50 1.13 - 1.42 1.73 6.84 1261782 CV50BER20400 ER20 1.34 - 4.00 2.63 - 1.42 1.73 7.19 2249710 CV50BER20600 ER20 1.34 - 6.00 4.63 - 1.42 1.73 7.77 i Spare Parts catalog number locknut wrench counterbore collet torque (ft. lbs.) straight collet torque (ft. lbs.) stop screw wrench size stop screw CV50BER16250 CV50BER16400 LNHSER16M LNHSER16M OEW25M OEW25M 30 30 42 42 SS044038G SS044038G 4mm & 5/32 4mm & 5/32 CV50BER16600 LNHSER16M OEW25M 30 42 SS044038G 4mm & 5/32 CV50BER20250 LNHSER20M OEW30M 24 59 SS056041G 4mm & 5/32 CV50BER20400 LNHSER20M OEW30M 24 59 SS056041G 4mm & 5/32 CV50BER20600 LNHSER20M OEW30M 24 59 SS056041G 4mm & 5/32 (continued) E58 WIDIA
