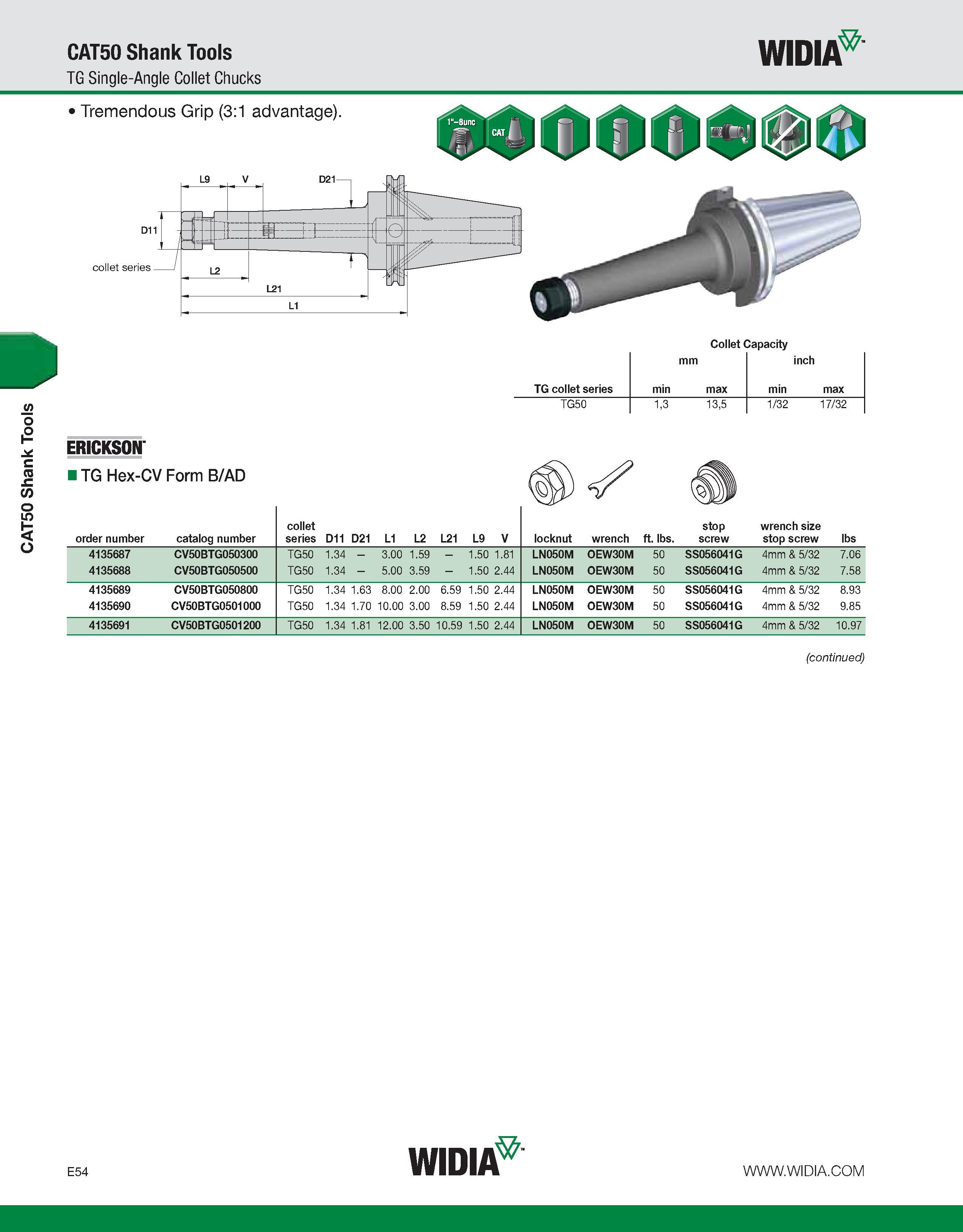

CAT50 Shank Tools CAT50 Shank Tools TG Single-Angle Collet Chucks WIDIA Tremendous Grip (3:1 advantage). Collet Capacity mm inch TG collet series min max min max TG50 1,3 13,5 1/32 17/32 ERICKSON' I TG Hex-CV Form B/AD order number catalog number collet series D11 D21 L1 L2 L21 L9 V locknut wrench ft. lbs. stop screw wrench size stop screw lbs 4135687 CV50BTG050300 TG50 1.34 - 3.00 1.59 - 1.50 1.81 LN050M OEW30M 50 SS056041G 4mm & 5/32 7.06 4135688 CV50BTG050500 TG50 1.34 - 5.00 3.59 - 1.50 2.44 LN050M OEW30M 50 SS056041G 4mm & 5/32 7.58 4135689 CV50BTG050800 TG50 1.34 1.63 8.00 2.00 6.59 1.50 2.44 LN050M OEW30M 50 SS056041G 4mm & 5/32 8.93 4135690 CV50BTG0501000 TG50 1.34 1.70 10.00 3.00 8.59 1.50 2.44 LN050M OEW30M 50 SS056041G 4mm & 5/32 9.85 4135691 CV50BTG0501200 TG50 1.34 1.81 12.00 3.50 10.59 1.50 2.44 LN050M OEW30M 50 SS056041G 4mm & 5/32 10.97 (continued) E54 WIDIA
