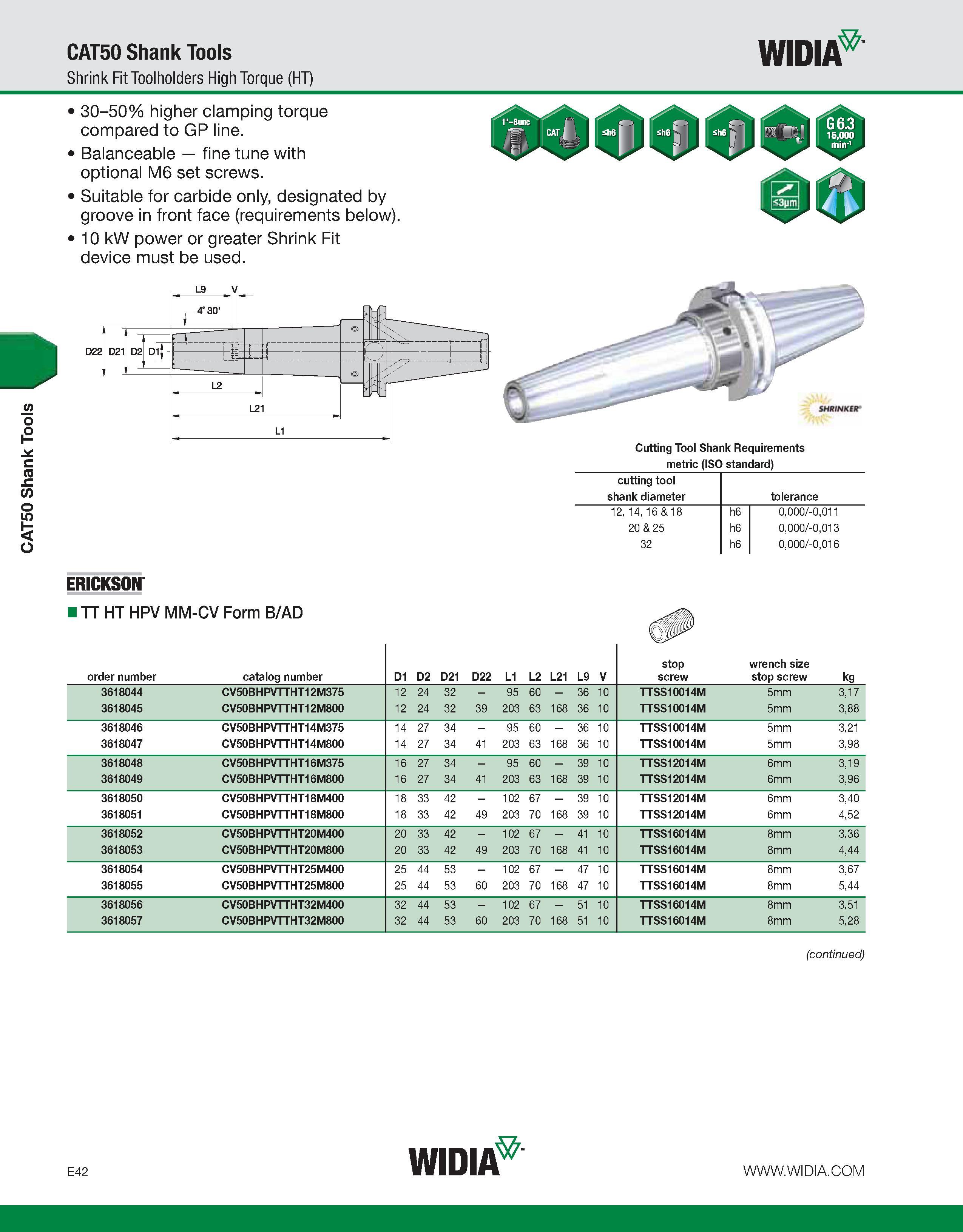

CAT50 Shank Tools CAT50 Shank Tools Shrink Fit Toolholders High Torque (HT) WIDIA 30-50% higher clamping torque compared to GP line. Balanceable fine tune with optional M6 set screws. Suitable for carbide only, designated by groove in front face (requirements below). 10 kW power or greater Shrink Fit device must be used. Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 12, 14, 16 & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 ERICKSON I TT HT HPV MM-CV Form B/AD (continued) E42 WIDIA
