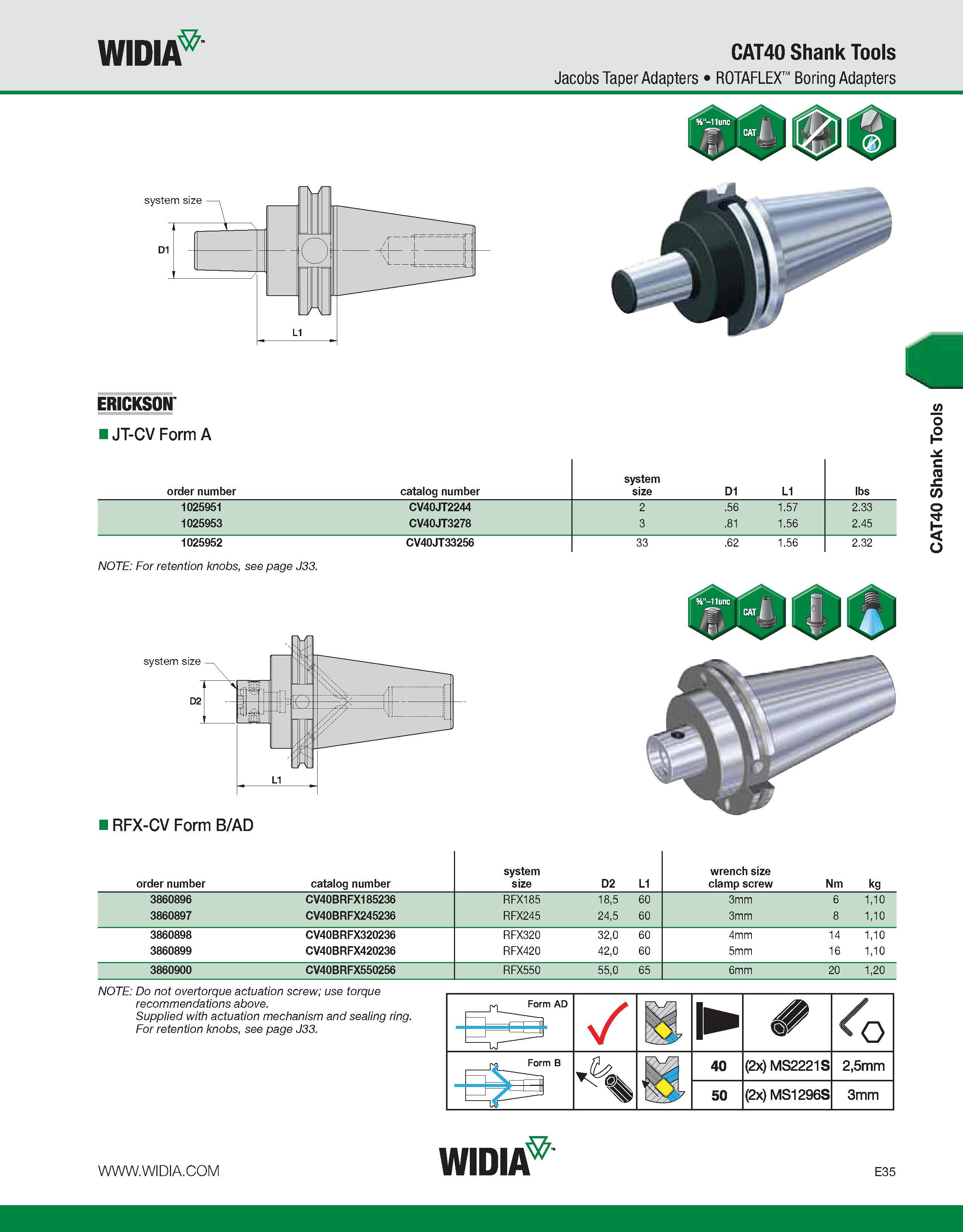

WIDIA CAT40 Shank Tools Jacobs Taper Adapters ROTAFLEX Boring Adapters system size ERICKSON IJT-CV Form A order number catalog number system size D1 L1 lbs 1025951 CV40JT2244 2 .56 1.57 2.33 1025953 CV40JT3278 3 .81 1.56 2.45 1025952 CV40JT33256 33 .62 1.56 2.32 NOTE: For retention knobs, see page J33. IRFX-CV Form B/AD order number catalog number system size D2 L1 wrench size clamp screw Nm kg 3860896 CV40BRFX185236 RFX185 18,5 60 3mm 6 1,10 3860897 CV40BRFX245236 RFX245 24,5 60 3mm 8 1,10 3860898 CV40BRFX320236 RFX320 32,0 60 4mm 14 1,10 3860899 CV40BRFX420236 RFX420 42,0 60 5mm 16 1,10 3860900 CV40BRFX550256 RFX550 55,0 65 6mm 20 1,20 NOTE: Do not overtorque actuation screw; use torque recommendations above. Supplied with actuation mechanism and sealing ring. For retention knobs, see page J33. Form AD t l pa Form B 40 (2x) MS2221S 2,5mm 50 (2x) MS1296S 3mm CAT40 Shank Tools
