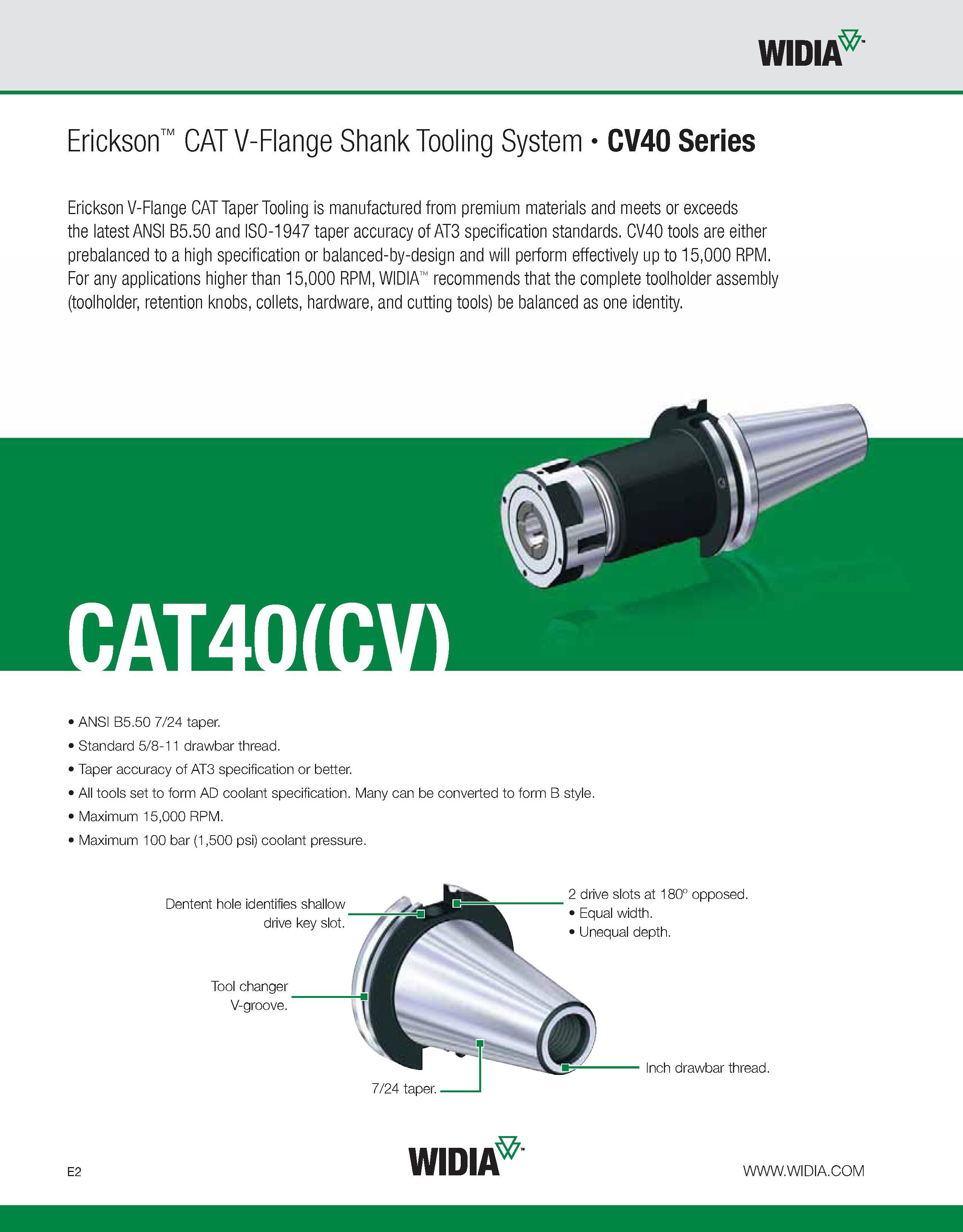

WIDIA Erickson CAT V-Flange Shank Tooling System CV40 Series Erickson V-Flange CAT Taper Tooling is manufactured from premium materials and meets or exceeds the latest ANSI B5.50 and ISO-1947 taper accuracy of AT3 specification standards. CV40 tools are either prebalanced to a high specification or balanced-by-design and will perform effectively up to 15,000 RPM. For any applications higher than 15,000 RPM, WIDIA recommends that the complete toolholder assembly (toolholder, retention knobs, collets, hardware, and cutting tools) be balanced as one identity. ANSI B5.50 7/24 taper. Standard 5/8-11 drawbar thread. Taper accuracy of AT3 specification or better. All tools set to form AD coolant specification. Many can be converted to form B style. Maximum 15,000 RPM. Maximum 100 bar (1,500 psi) coolant pressure.
