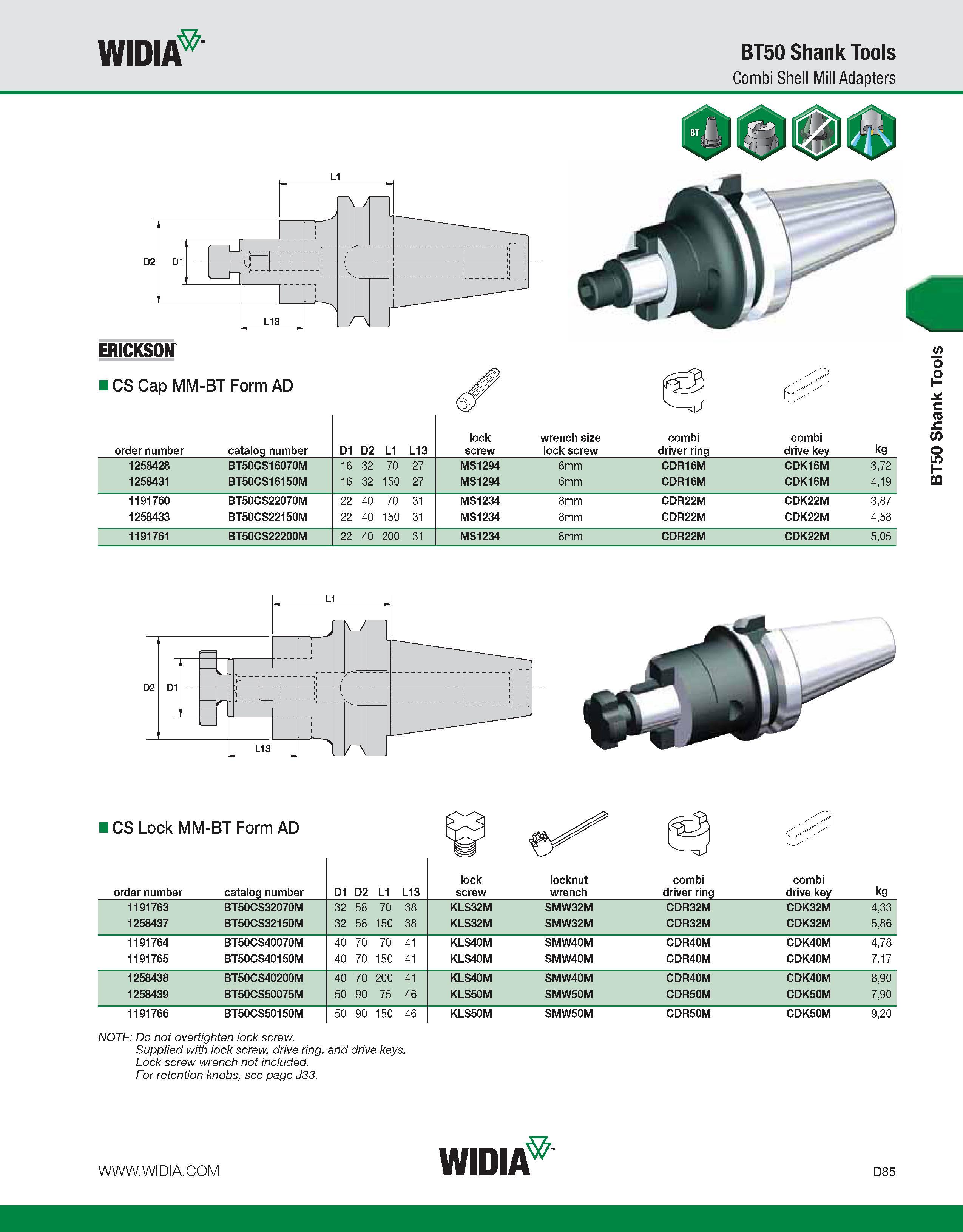

WIDIA BT50 Shank Tools Combi Shell Mill Adapters ERICKSON I CS Cap MM-BT Form AD order number catalog number D1 D2 L1 L13 lock screw wrench size lock screw combi driver ring combi drive key kg 1258428 BT50CS16070M 16 32 70 27 MS1294 6mm CDR16M CDK16M 3,72 1258431 BT50CS16150M 16 32 150 27 MS1294 6mm CDR16M CDK16M 4,19 1191760 BT50CS22070M 22 40 70 31 MS1234 8mm CDR22M CDK22M 3,87 1258433 BT50CS22150M 22 40 150 31 MS1234 8mm CDR22M CDK22M 4,58 1191761 BT50CS22200M 22 40 200 31 MS1234 8mm CDR22M CDK22M 5,05 I CS Lock MM-BT Form AD order number catalog number D1 D2 L1 L13 lock screw locknut wrench combi driver ring combi drive key kg 1191763 BT50CS32070M 32 58 70 38 KLS32M SMW32M CDR32M CDK32M 4,33 1258437 BT50CS32150M 32 58 150 38 KLS32M SMW32M CDR32M CDK32M 5,86 1191764 BT50CS40070M 40 70 70 41 KLS40M SMW40M CDR40M CDK40M 4,78 1191765 BT50CS40150M 40 70 150 41 KLS40M SMW40M CDR40M CDK40M 7,17 1258438 BT50CS40200M 40 70 200 41 KLS40M SMW40M CDR40M CDK40M 8,90 1258439 BT50CS50075M 50 90 75 46 KLS50M SMW50M CDR50M CDK50M 7,90 1191766 BT50CS50150M 50 90 150 46 KLS50M SMW50M CDR50M CDK50M 9,20 NOTE: Do not overtighten lock screw. Supplied with lock screw, drive ring, and drive keys. Lock screw wrench not included. For retention knobs, see page J33. BT50 Shank Tools
